Logic analyzer (option R&S RTM-B1, MSO)
R&S
®
RTM3000
398User Manual 1335.9090.02 ─ 09

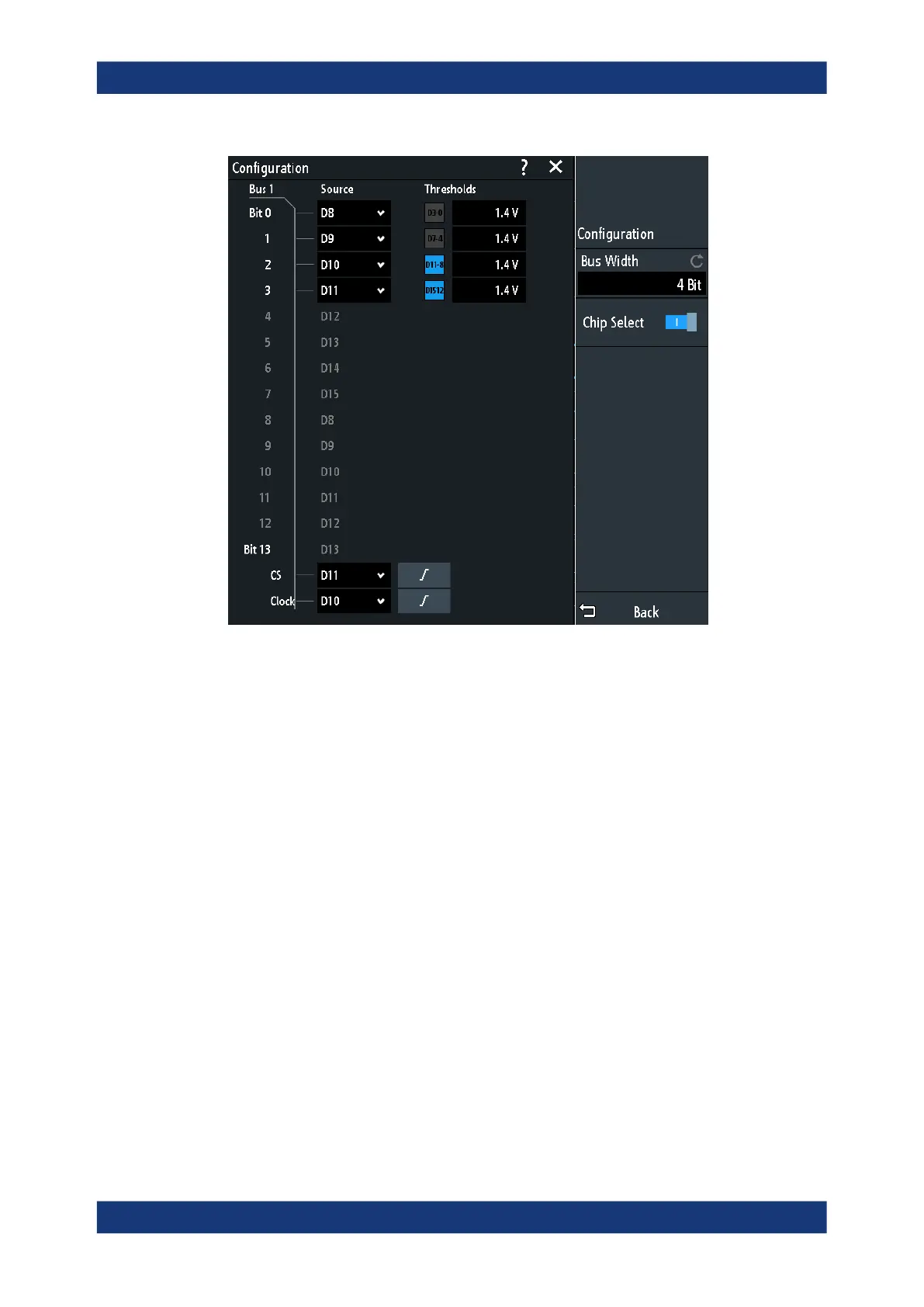

Figure 15-2: Configuration menu Parallel clocked bus
The menus offer the following settings:
Bus Width....................................................................................................................398
Thresholds.................................................................................................................. 398
Source.........................................................................................................................399
Set to Default.............................................................................................................. 399
Chip Select..................................................................................................................399
Polarity........................................................................................................................ 399
Slope...........................................................................................................................399
Bus Width
Sets the number of lines (bits) of the logic channels D0 to D15 to be analyzed in the
parallel or clocked parallel bus. The maximum number is the number of logic input
lines.
Remote command:
BUS<b>:PARallel:WIDTh on page 775
BUS<b>:CPARallel:WIDTh on page 775
Thresholds
Set the threshold for each nibble of logic channels: D0...D3, D4...D7, D8...D11, and
D12...D15.
The setting is also available in the "Logic" configuration.
Parallel buses
