Set the lower and upper reference levels for rise and fall time measurements. Sets also
the middle reference level used for phase and delay measurements. The levels are
defined as percentages of the high signal level. The settings are valid for all measure-
ment places.
Remote command:
REFLevel:RELative:MODE on page 528
REFLevel:RELative:LOWer on page 529
REFLevel:RELative:MIDDle on page 529
REFLevel:RELative:UPPer on page 529

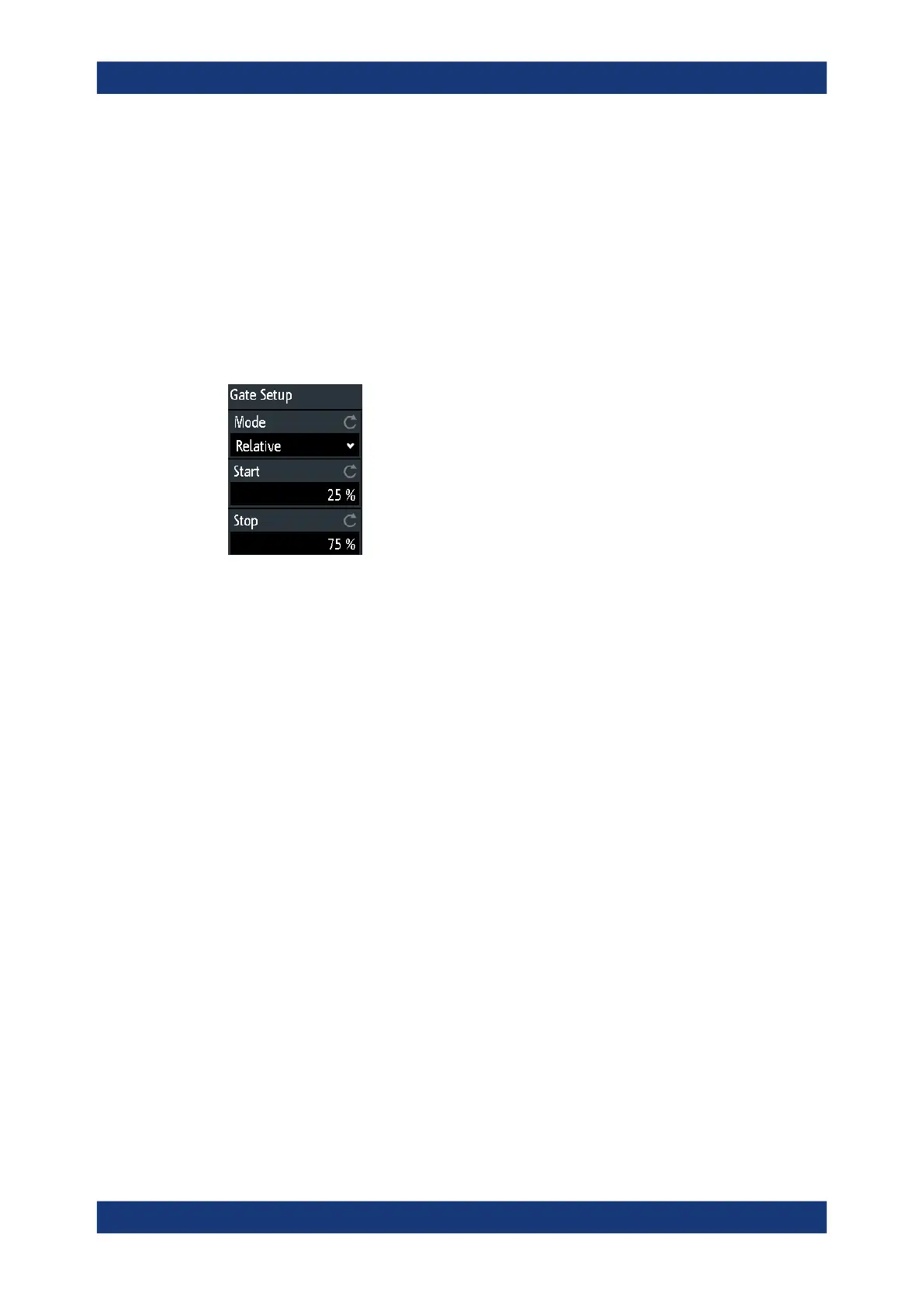

Gate Setup
Define a gate to limit the measurement to a time range. You can set the "Start" and
"Stop" time in absolute or relative values, depending on the "Mode".
Remote command:
MEASurement<m>:GATE:MODE on page 527
MEASurement<m>:GATE:ABSolute:STARt on page 527
MEASurement<m>:GATE:ABSolute:STOP on page 527
MEASurement<m>:GATE:RELative:STARt on page 528
MEASurement<m>:GATE:RELative:STOP on page 528
8.2.4 Delay setup
Access: [Meas] > "Type" = "Delay" or "Delay to Trigger" > "Delay Setup"
In the "Delay Setup" menu, you configure the delay measurement or delay to trigger
measurement.
You can change the slope and the detection area to define the slopes for delay mea-
surements.
Automatic measurements
