Waveform setup
R&S
®
RTM3000
52User Manual 1335.9090.02 ─ 09
There are several ways to adjust vertical settings:
●

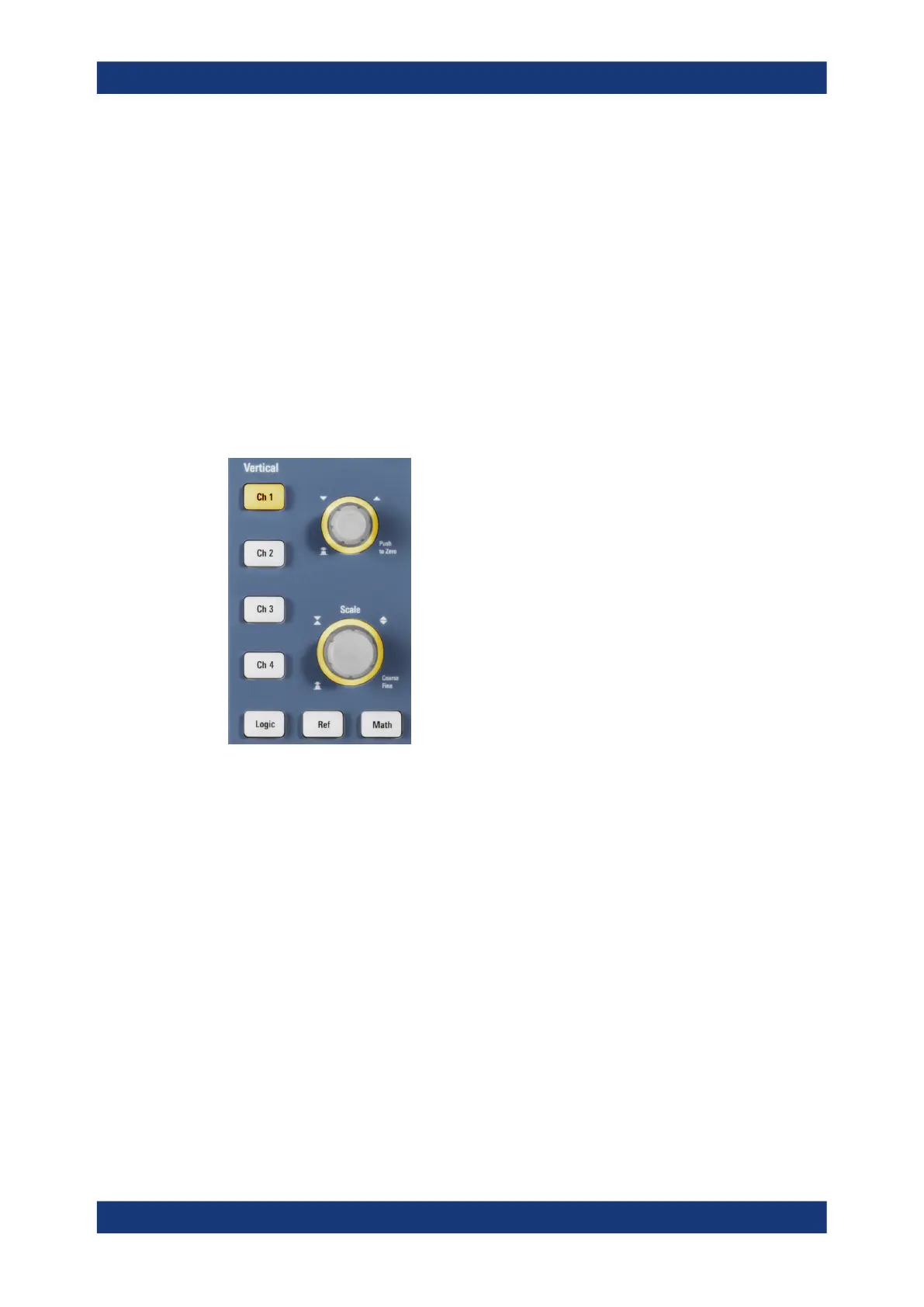

Use the controls in the Vertical functional block of the front panel to select the
channel, to scale the waveform, and to set the position.
●
Drag one finger vertically on the screen to change the position of the selected
channel waveform.
●
Spread or pinch two fingers in vertical direction to change the vertical scale of the
selected waveform.
●
Use the short menu to adjust coupling and the probe, and to set the vertical scale
automatically.
●
Use the comprehensive menu to adjust all vertical settings.
5.3.1 VERTICAL controls
[Ch <n>]
For each analog channel, a channel key is available. The key is illuminated in the
channel color, if the channel is on.
The effect of the keypress depends on state of the channel:
●
If channel is off: Turns on the channel and selects it. The rotary knobs alongside
light up in the channel color.
●
If the channel is on and in focus (selected): Opens the corresponding channel
menu.
●
If the channel is on but not in focus (not selected): Selects the channel waveform.
●
If the channel is selected, and the menu is open: Pressing the key turns off the
channel.
Remote command:
CHANnel<m>:STATe on page 436
Vertical setup
