Signal generation (option R&S RTM-B6)
R&S
®
RTM3000
401User Manual 1335.9090.02 ─ 09
16 Signal generation (option R&S RTM-B6)
The R&S RTM3000 has an integrated function and pattern generator which can gener-
ate signals while testing circuits, for instance.
The waveform generator can output simple functions, modulated sine waveform, arbi-
trary waveforms and sweep waveforms. The integrated pattern generator can generate
individual or cycle patterns and simple bus signal patterns.
16.1 Function generator
The waveform generator can output simple functions, modulated sine waveform, arbi-
trary waveforms and sweep waveforms. The signal is output at the [Gen] connector on
the front panel.
Short Menu
In the short menu for the function generator, you can open the comprehensive menu,
and turn off the function generator.
You can also create an arbitrary waveform by copying a waveform and display or hide
the arbitrary waveform. For description of the functions in the short menu, see Chap-
ter 16.1.6, "Arbitrary setup settings", on page 411.

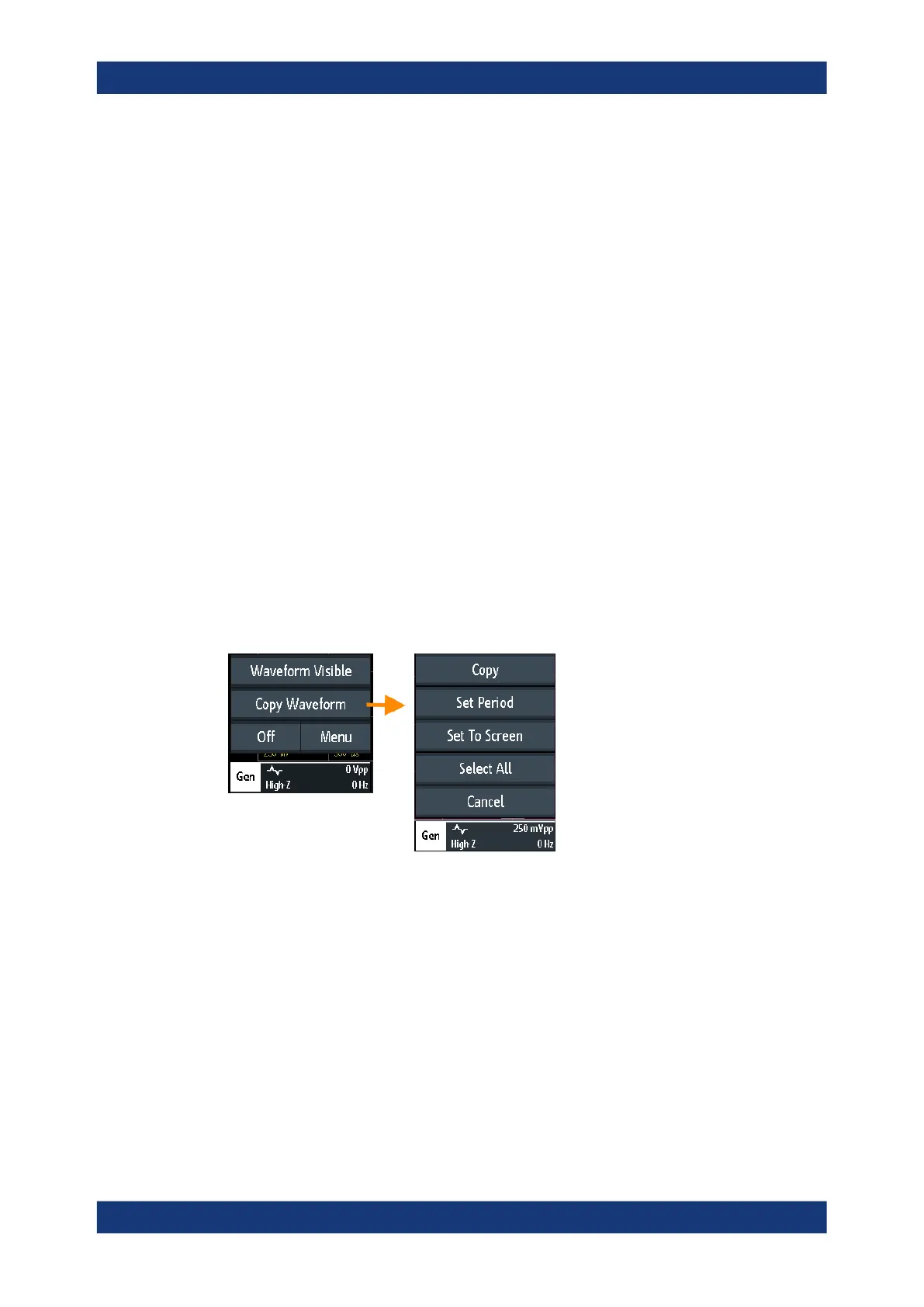

Figure 16-1: Short menu to create arbitrary waveform
16.1.1 Using the function generator
To configure a function waveform
1. Press the [Gen] key on the front panel.
2. Select the "Function" that you want to generate, e.g. "Sine".
3. Depending on the selected "Function", configure the settings of the waveform like
"Frequency" and "Amplitude".
Function generator
