Serial bus analysis
R&S
®
RTM3000
254User Manual 1335.9090.02 ─ 09
Display

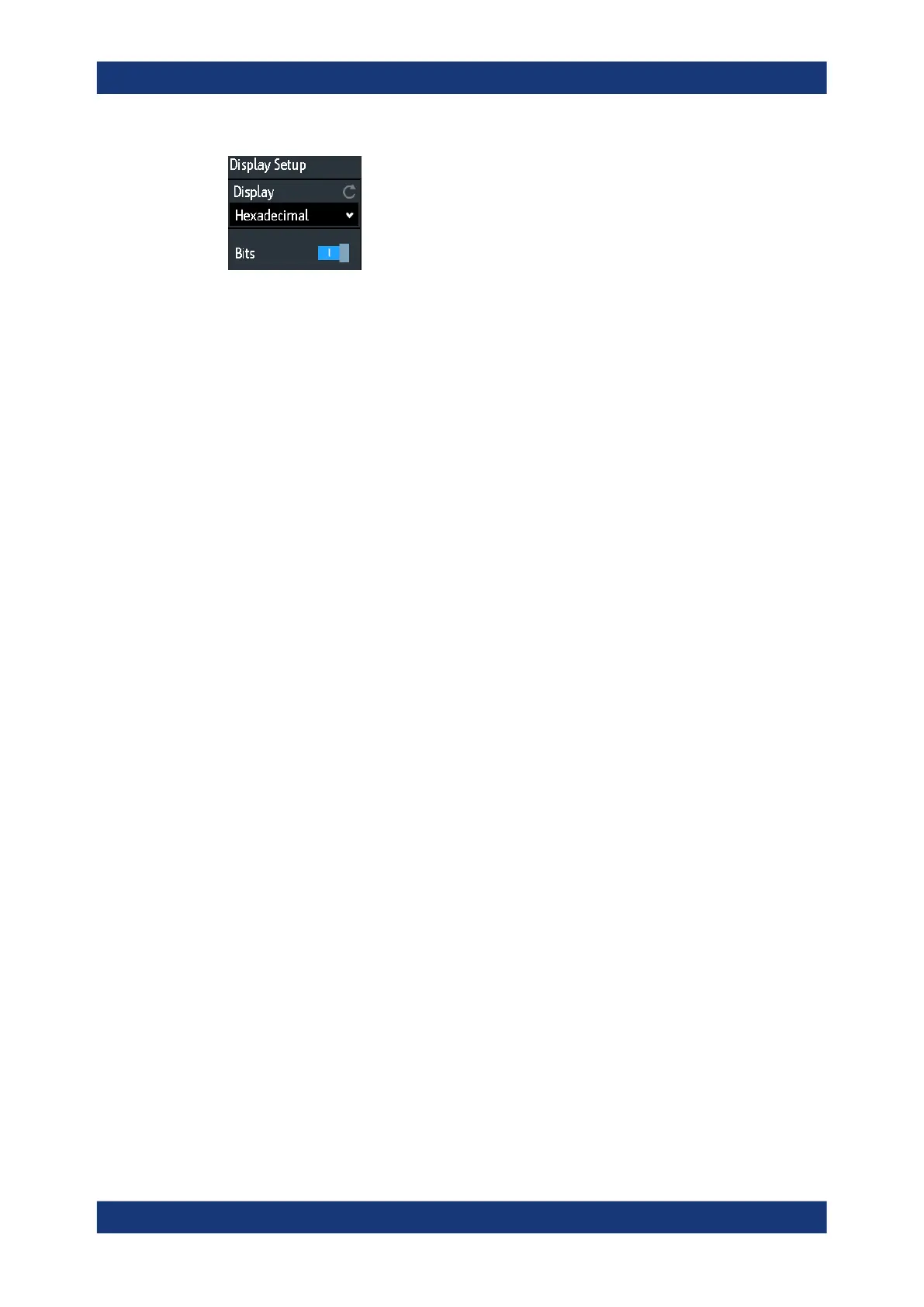

Selects the decoding format of the data: binary, hexadecimal, decimal, octal or ASCII.
The setting applies to the data in the combs of the decoded bus line, and to the bus
table.
Remote command:
BUS<b>:FORMat on page 605
Bits
Enables the display of the individual bit lines above the decoded bus line.
Remote command:
BUS<b>:DSIGnals on page 605
13.1.3 Bus table: decode results
The bus table shows the detailed decoded data for each frame of the acquisition. At
running acquisition, the table results are updated continuously. In stop mode, you can
access the individual frames and analyze them. If the data of a frame is long, several
lines per frame are shown. Scrolling and selecting is frame-based, i.e. if you scroll the
table, you always select a complete frame, not a single line of the frame.
You can also save the results to CSV file.
