Hysteresis
Hysteresis of the trigger source channel, see "Hysteresis" on page 59.
Remote command:
CHANnel<m>:THReshold:HYSTeresis on page 441
6.12 Actions on trigger
A trigger event can be used to initiate one or several actions. All available actions can
be initiated at the same time, and for all trigger types.
Actions on trigger are not available if the following applications are active:
●
Mask test
●
Power analysis
●
Bode plot
To set up trigger actions
1. Stop the acquisition.
2. Press the [Trigger] key.
3. In the "Trigger" menu, activate "Actions on Trigger".
4. Select "Configuration".
5. Select the actions.
6. If "Screenshot" is selected, configure the screenshot settings in "File" menu >
"Screenshots".
7. If "Save Wavef." is selected, configure the export (waveform, target, file name and
format) in "File" menu > "Waveforms".
8. Start the acquisition with [Run Stop] or [Single].

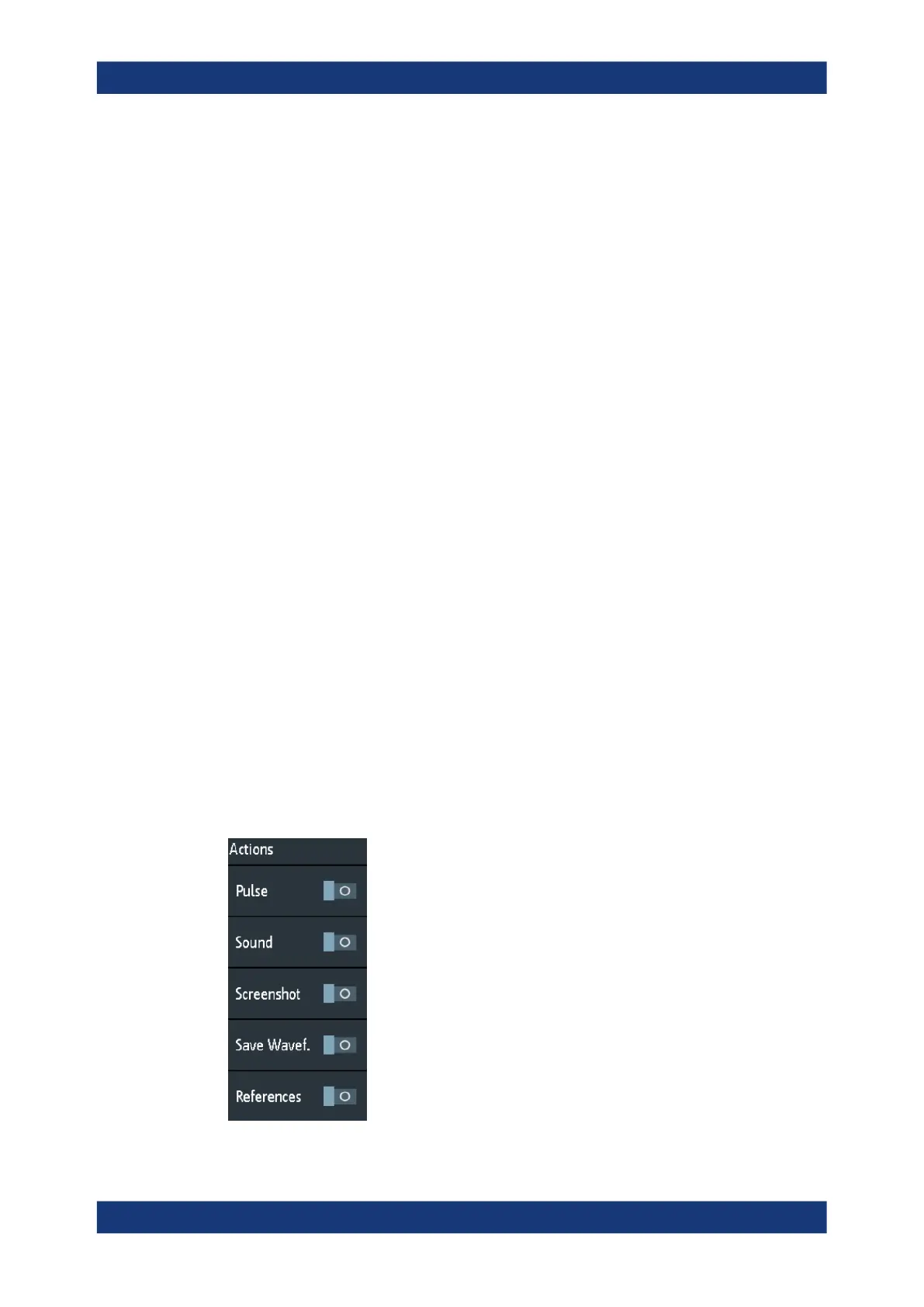

Actions on trigger
