Trigger
R&S
®
RTM3000
97User Manual 1335.9090.02 ─ 09
time
Figure 6-8: Timeout trigger with range Stays
High
► [Trigger] > "Trigger Type" = "Timeout"

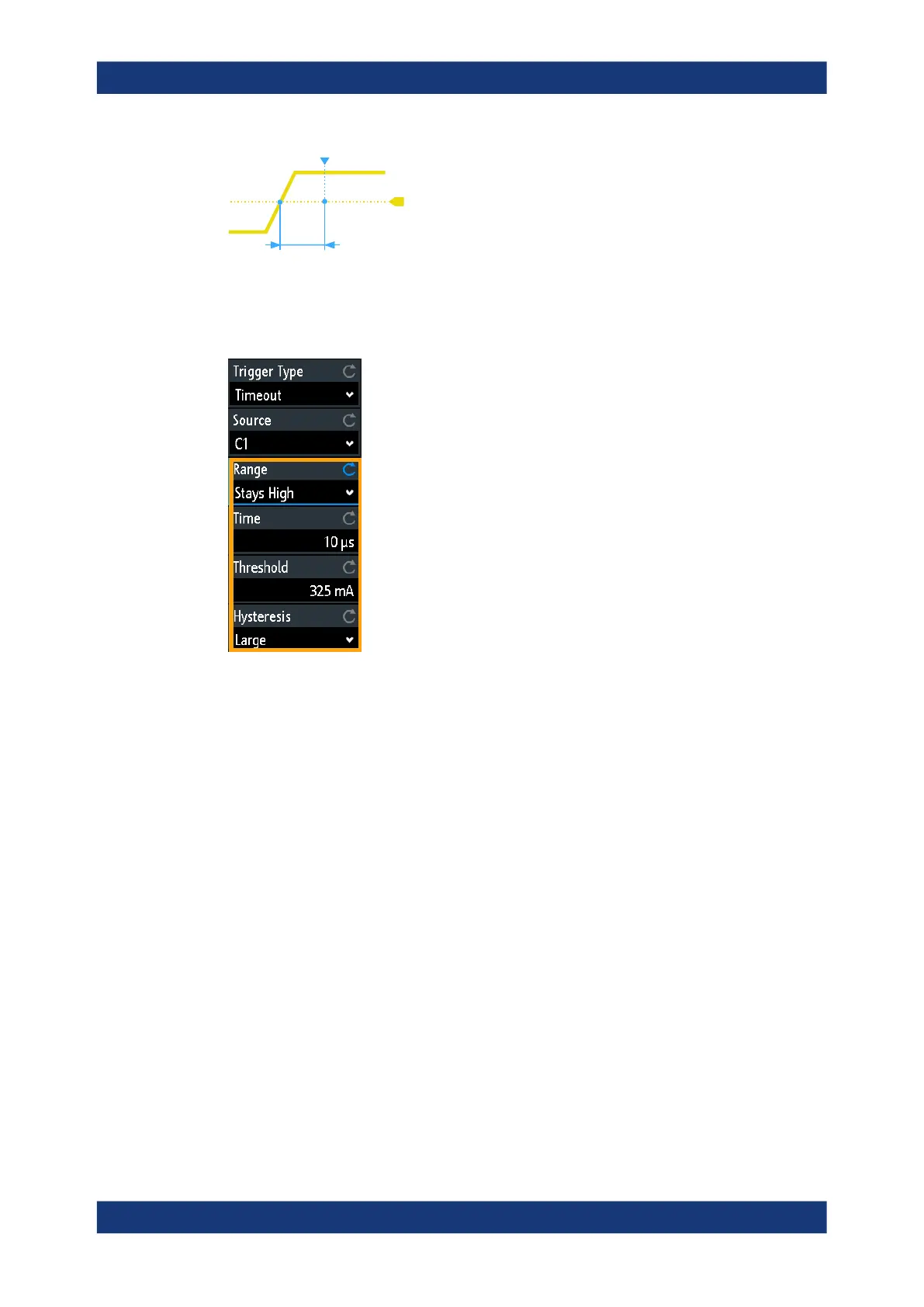

Figure 6-9: Timeout trigger menu
Range
Selects the relation of the signal level to the threshold:
Stays High
The signal level stays above the trigger level.
Stays Low
The signal level stays below the trigger level.
Remote command:
TRIGger:A:TIMeout:RANGe on page 474
Time
Defines the time limit for the timeout at which the instrument triggers.
Remote command:
TRIGger:A:TIMeout:TIME on page 474
Threshold
Threshold of the trigger source channel, used as trigger level for the timeout trigger.
See also "Threshold" on page 59 and "Trigger Level, Threshold" on page 83.
Remote command:
TRIGger:A:LEVel<n>[:VALue] on page 462
CHANnel<m>:THReshold on page 440
