Waveform setup
R&S
®
RTM3000
50User Manual 1335.9090.02 ─ 09
[Horizontal]
Opens the menu to configure horizontal scale, position, and reference point. The cur-
rent scale and position is shown in the top information bar.
If zoom is active, you can find also the zoom scale and zoom position in this menu.
[Acquisition]
Opens the "Acquisition" menu. Here you control the data processing - how the wave-
form is built from the captured samples. The current acquisition mode is shown in the
top information bar.
See also: Chapter 5.5, "Acquisition setup", on page 72.

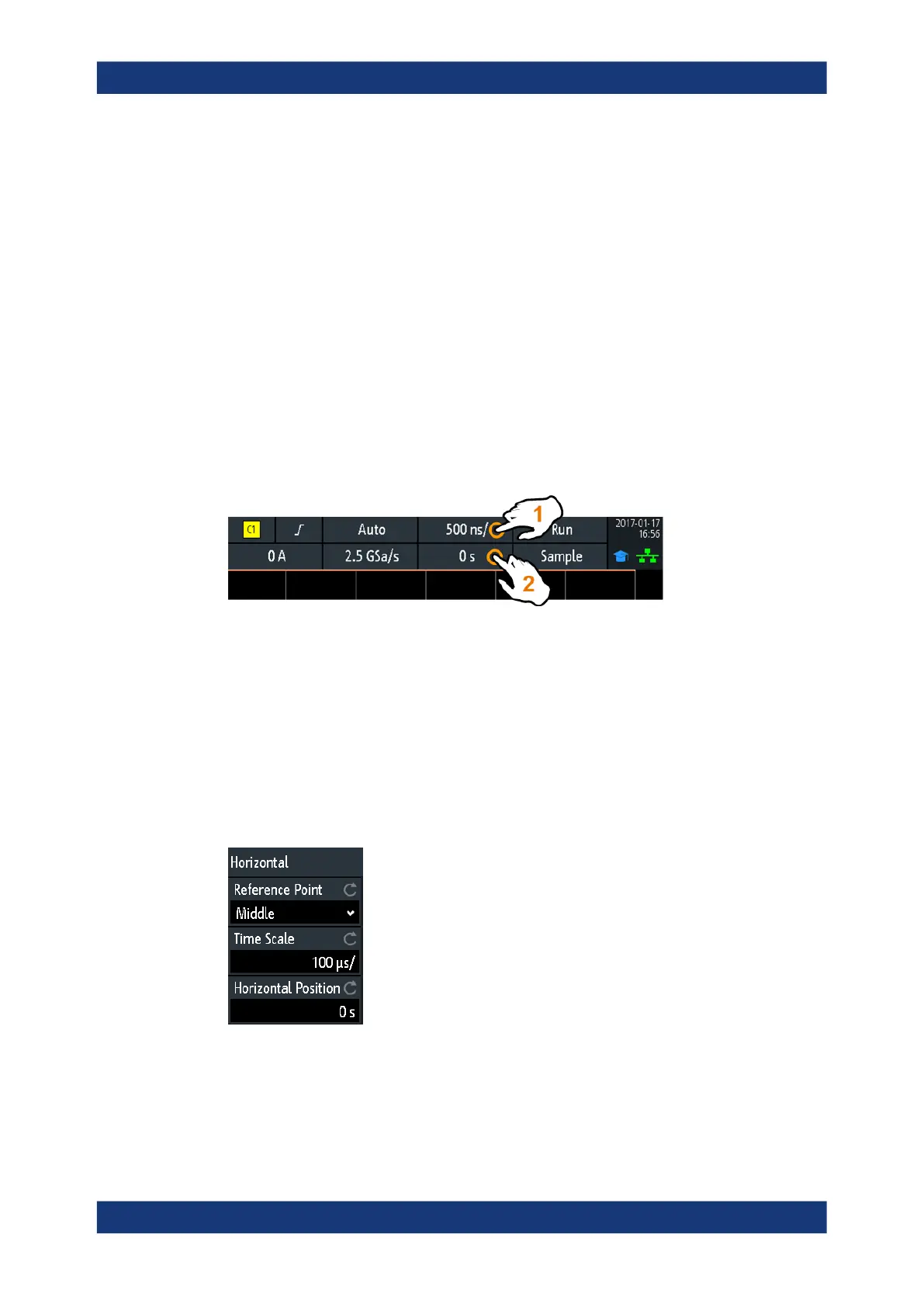

5.2.2 Shortcuts for horizontal settings
To adjust the horizontal scale and the position, you can use the shortcuts on the top of
the display. The labels show the current values.
1
= adjust horizontal scale
2 = adjust horizontal position
5.2.3 Horizontal settings
The comprehensive "Horizontal" menu contains all horizontal settings. In zoom mode,
also zoom settings are listed in the menu.
► To open the menu, press the [Horizontal] key.
Reference Point
Defines the time reference point in the diagram. It is indicated by a gray triangle outline
at the bottom of the diagram.
Horizontal setup
