Logic analyzer (option R&S RTM-B1, MSO)
R&S
®
RTM3000
394User Manual 1335.9090.02 ─ 09
15.2 Logic analyzer settings
Prerequisite: a logic probe is connected to the instrument.
1. If logic analysis is not active, press the [Logic] key to activate it.
2. Press the [Logic] key again.
The "Logic" menu opens.
3. Activate the pod that you want to use, or both pods.
4. Tap "Threshold and Deskew".
5. Set the "Technology", and the "Hysteresis".
D7...D0 / D15...D8
Switches the selected logic pod on or off.
You can also set the state of each logic channel separately in the short menu, see
Chapter 15, "Logic analyzer (option R&S RTM-B1, MSO)", on page 392.
Remote command:
LOGic<p>:STATe on page 768
DIGital<m>:PROBe[:ENABle]? on page 769

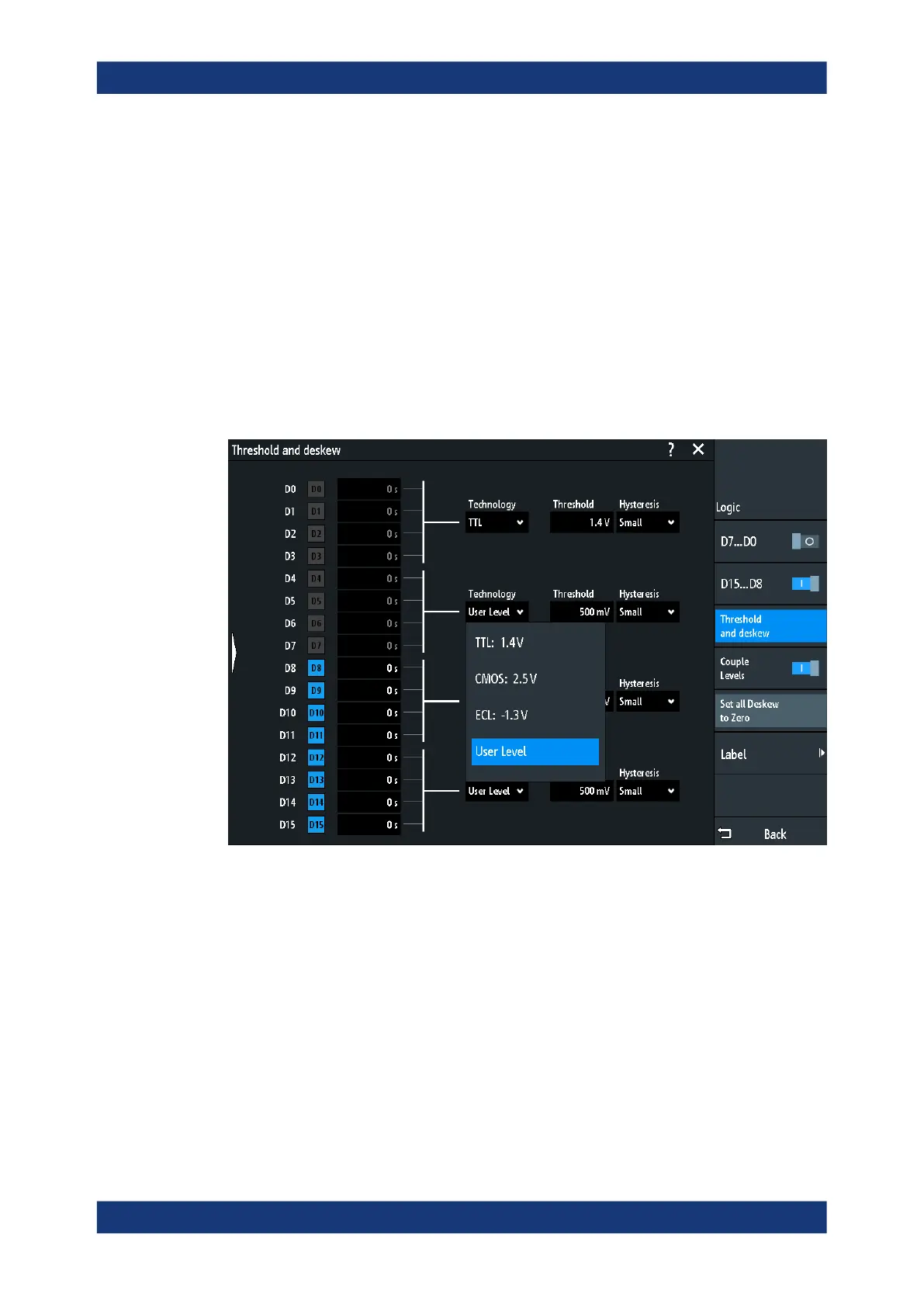

Threshold and Deskew
Opens a dialog where you can set the threshold and hysteresises, and the visibility of
the individual logic channels.
