13.1.5.1 Using label lists

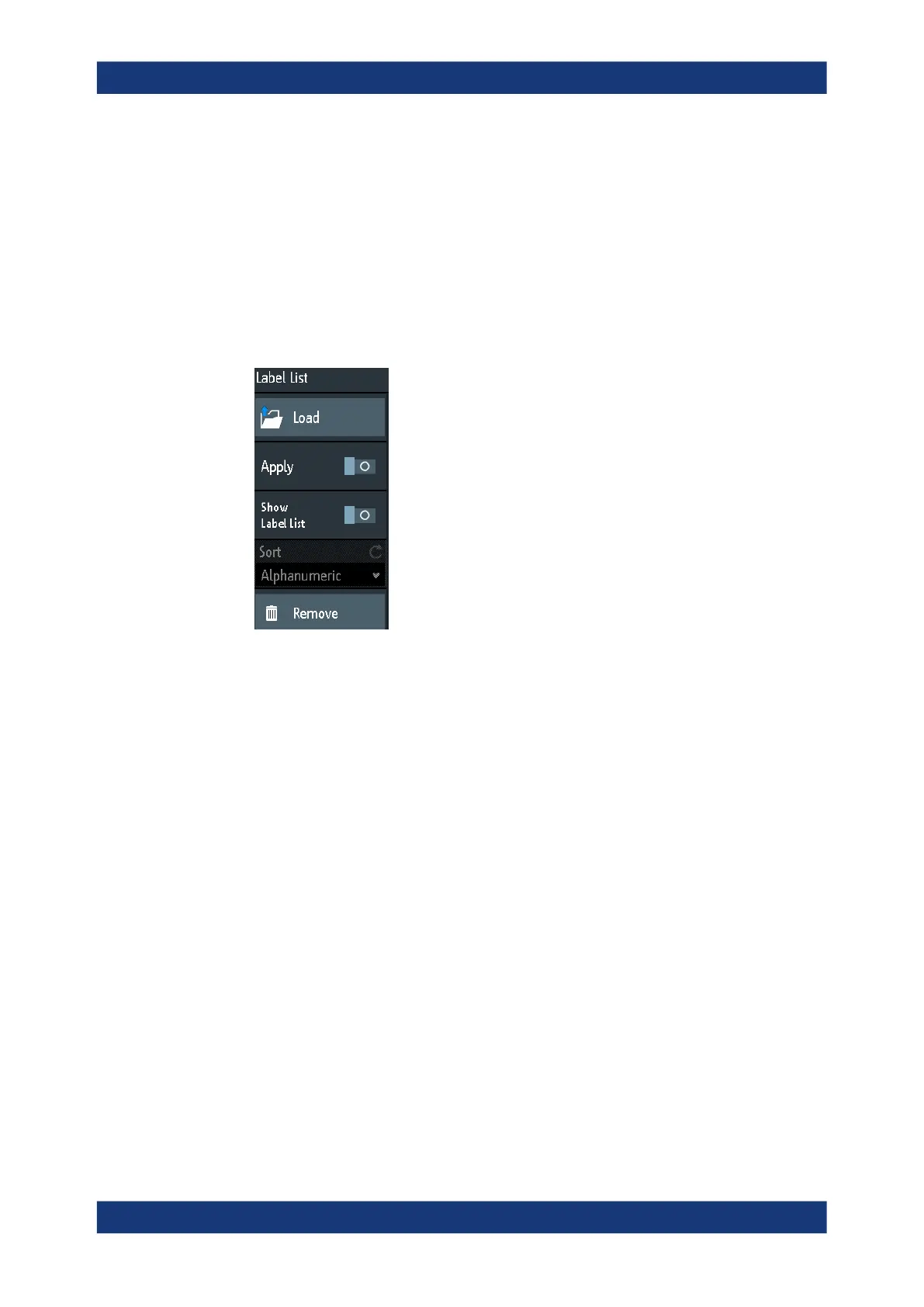

To load a label list and display the labels
1. Save the label list file on a USB flash drive.
2. Press the [Protocol] key.
3. Configure the protocol.
4. In the "Bus" menu, select "Label List".
5. Select "Load".
6. Navigate to the label list file, select it, and tap "Load".
7. To read the label list, tap "Show Label List".
8. To see the node labels in the display of the decoded data, tap "Apply".
To trigger on an identifier or address using the label
Prerequisites: The bus is configured, decoding is enabled, and a decoded signal is visi-
ble.
1. Open the "Bus" menu.
2. Select "Trigger".
3. Set the following trigger settings:
a)
"<Protocol> T
rigger" = "Identifier", or "Identifier + Data", or "Address", or
"Address and Data".
b) Tap "Symbolic ID".
c) Select the label. The list provides all symbolic names that are defined in the
loaded file.
4. Close the dialog.
5. Set the trigger mode to "Normal".
Basics of protocol analysis
