Serial bus analysis
R&S
®
RTM3000
295User Manual 1335.9090.02 ─ 09
CAN search settings

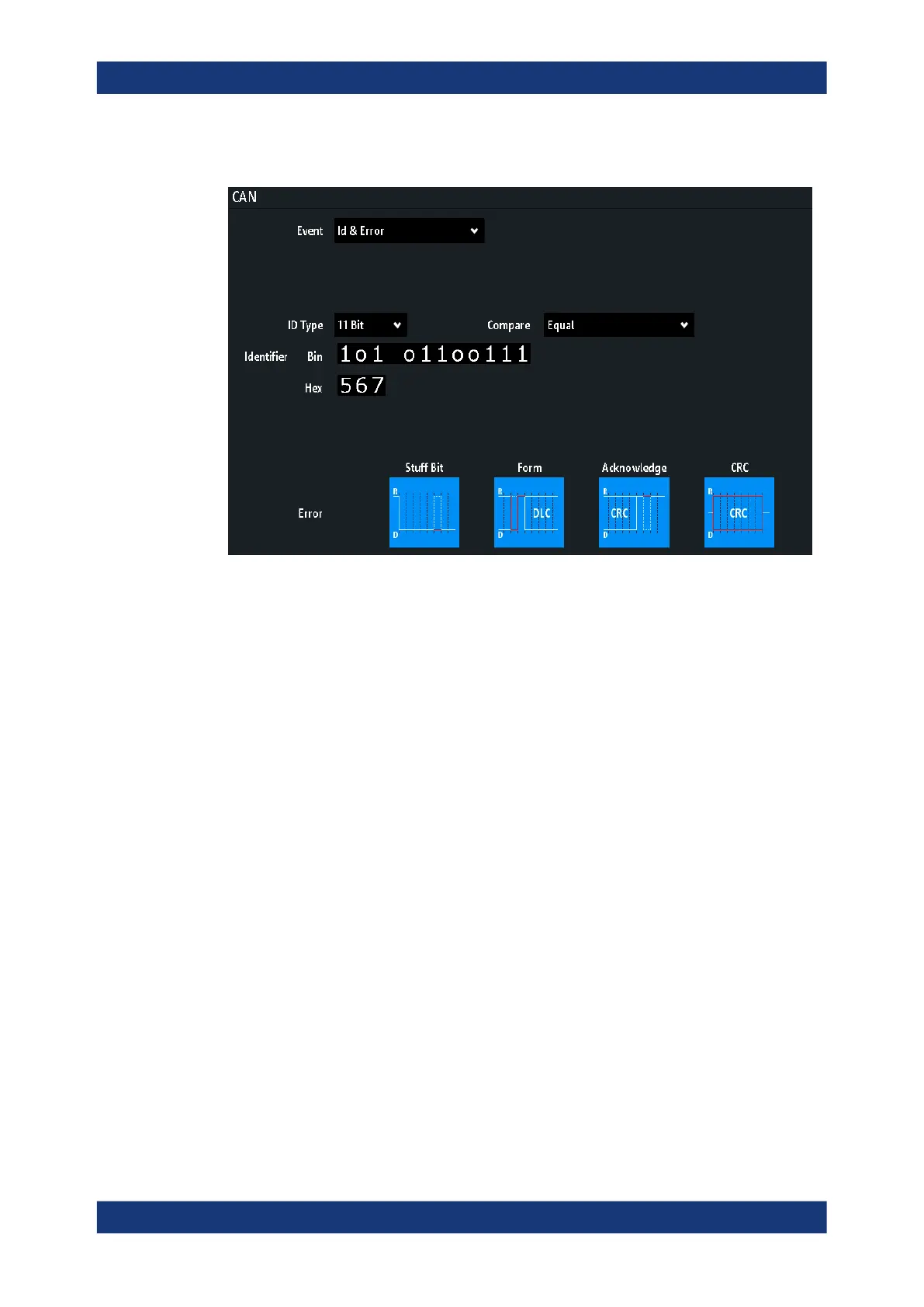

Figure 13-26: Settings for search on CAN bus for frames with identifier 567 (hex) that have an error
Event
Sets the event or combination of events to be searched for. For example, you can
search for frames, errors, data, or IDs. Depending on the selected event, additional
settings are displayed.
Remote command:
SEARch:PROTocol:CAN:CONDition on page 650
Frame Setup
Selects the frame type to be searched for.
If you search for remote or data frames, the search considers also the ID type, the
length of the identifier. The setting is only available if "Event" = "Frame" is selected.
Remote command:
SEARch:PROTocol:CAN:FRAMe on page 651
Error
Selects the error type to be searched for. You can select one or more error types as
search condition. The error types are the same as in the CAN trigger setup, see Chap-
ter 13.5.3, "CAN trigger", on page 288.
The setting is only available if "Event" = "Error" or "Error & ID" is selected.
Remote command:
SEARch:PROTocol:CAN:ACKerror on page 651
SEARch:PROTocol:CAN:BITSterror on page 652
SEARch:PROTocol:CAN:CRCerror on page 652
SEARch:PROTocol:CAN:FORMerror on page 652
CAN (option R&S
RTM-K3)
