Getting started
R&S
®
RTM3000
34User Manual 1335.9090.02 ─ 09

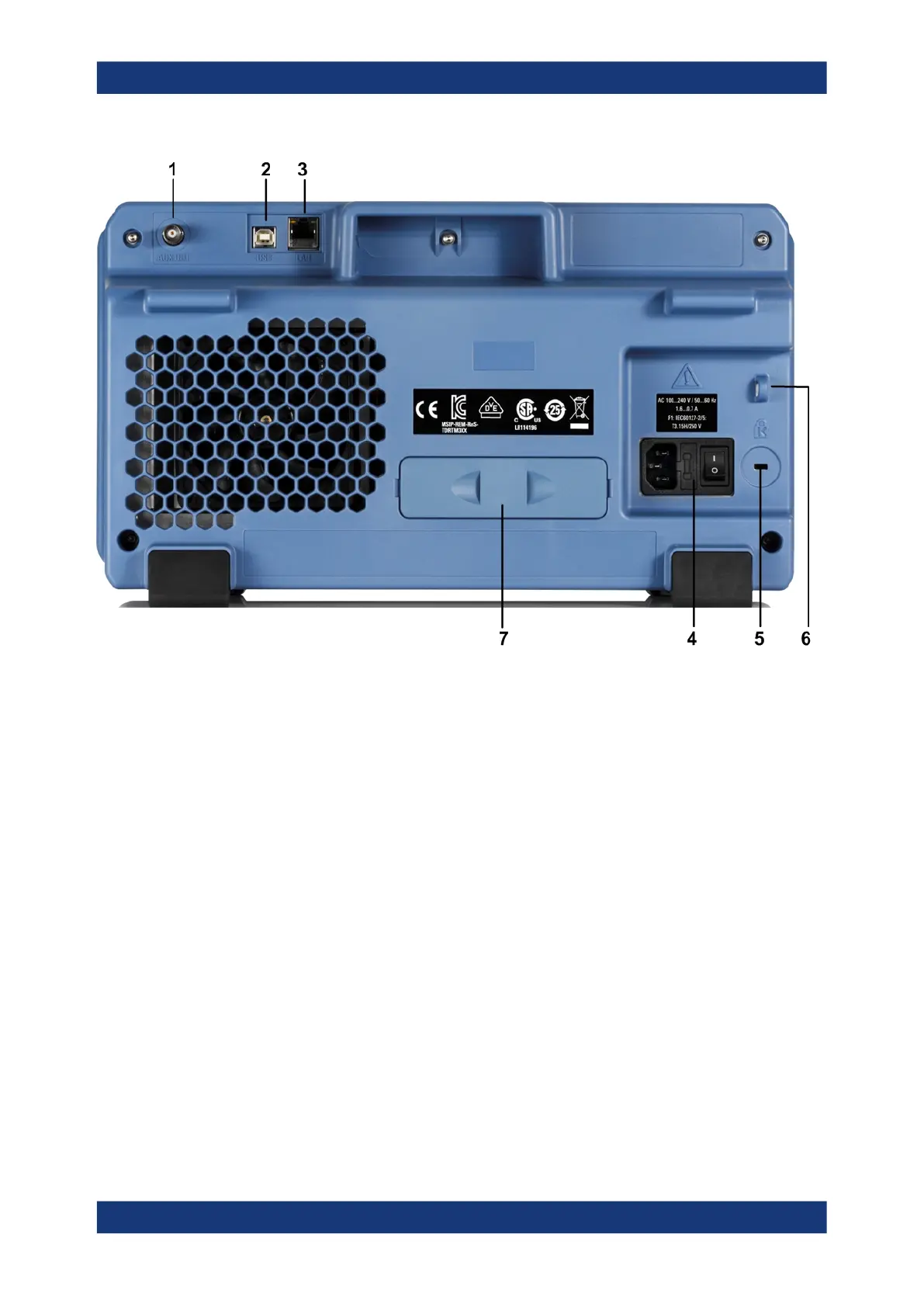

Figure 3-3: Rear panel view of R&S
RTM3000
1 = Aux Out connector
2 = USB connector, type B
3 = LAN connector
4 = AC power supply connector and main power switch
5 = Kensington lock slot to secure the instrument against theft
6 = Loop for lock to secure the instrument against theft
7 = not used
[Aux Out] (1)
Multi-purpose BNC output that can function as pass/fail and trigger output, and output
of 10 MHz reference frequency.
[USB] type B (2)
USB 2.0 interface of type B (device USB) for remote control of the instrument.
[LAN] (3)
8-pin connector RJ-45 used to connect the instrument to a Local Area Network (LAN).
It supports up to 1 Gbit/s.
AC supply: mains connector and main power switch (4)
The instrument supports a wide range power supply. It automatically adjusts to the cor-
rect range for the applied voltage. There is no line voltage selector.
The AC main power switch disconnects the instrument from the AC power line.
