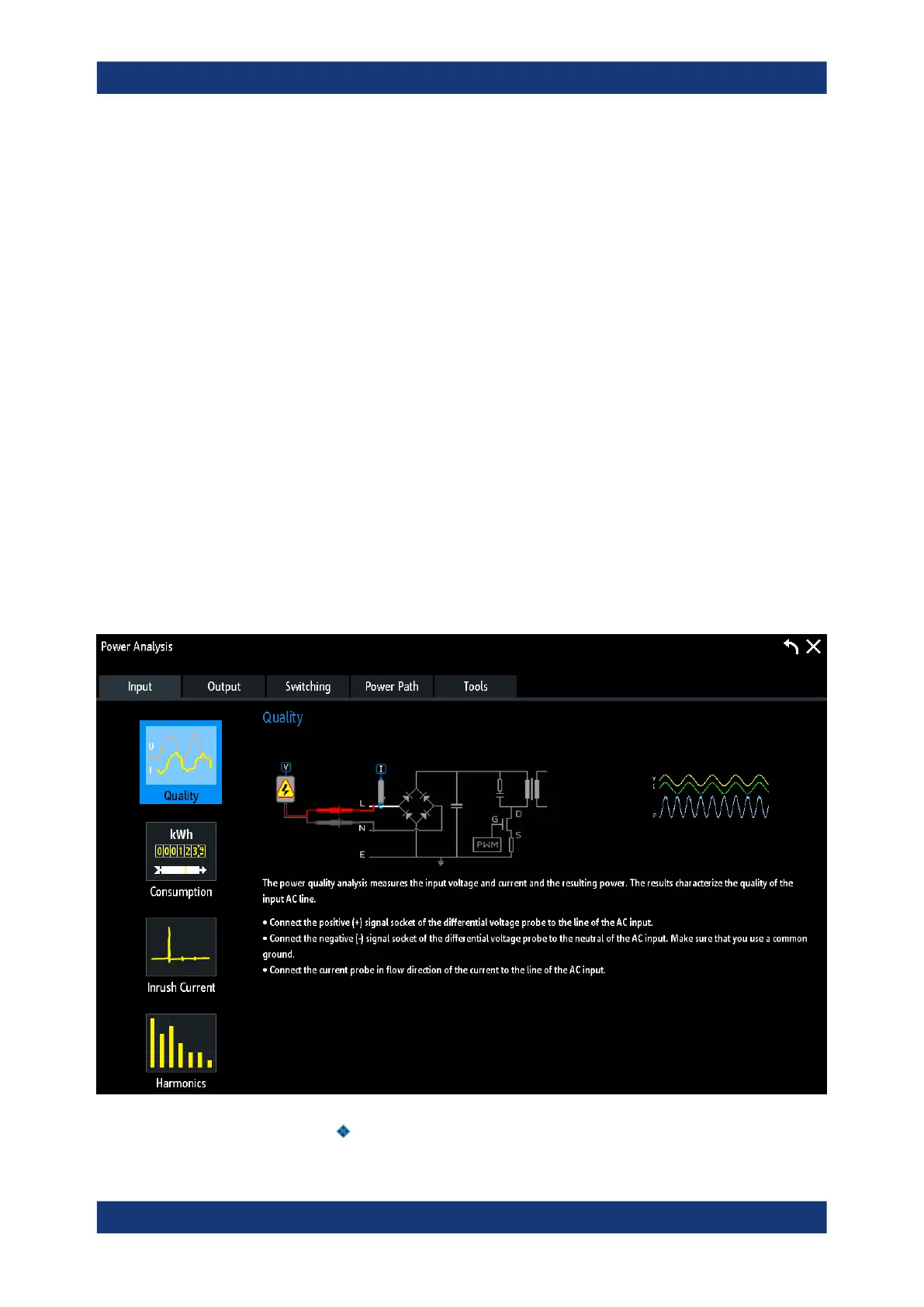

● Connect the current probe in flow direction of the current to the line of the AC
input.
10. Close the "Power Analysis".
11. Press the "Menu" button and scroll to the "Power" menu.
12. Select the correct channels for the "Current" and the "Voltage" sources.
13. To enable statistic evaluation of the measurement results, select "Statistics" > "Visi-
ble".
14. Press the Autoset button to adjust the display scales automatically or adjust them
manually.
On the screen, you can see the measurement waveforms of the current, the volt-
age and the power. Also, the numeric measurement results are shown in the lower
left corner. For details, see Chapter 14.4.1, "Quality", on page 346.
14.4.1.3 Quality settings
► To open the "Quality" settings menu:
a) Press the Apps Selection key. Tap "Power Analysis".
b) Select "Quality".
c) Close the "Power Analysis".
d)
Tap the menu icon in the lower right corner of the screen.
Input power measurements
