Power analysis (option R&S RTM-K31)
R&S
®
RTM3000
352User Manual 1335.9090.02 ─ 09
b) In the "Input" tab, select "Consumption".

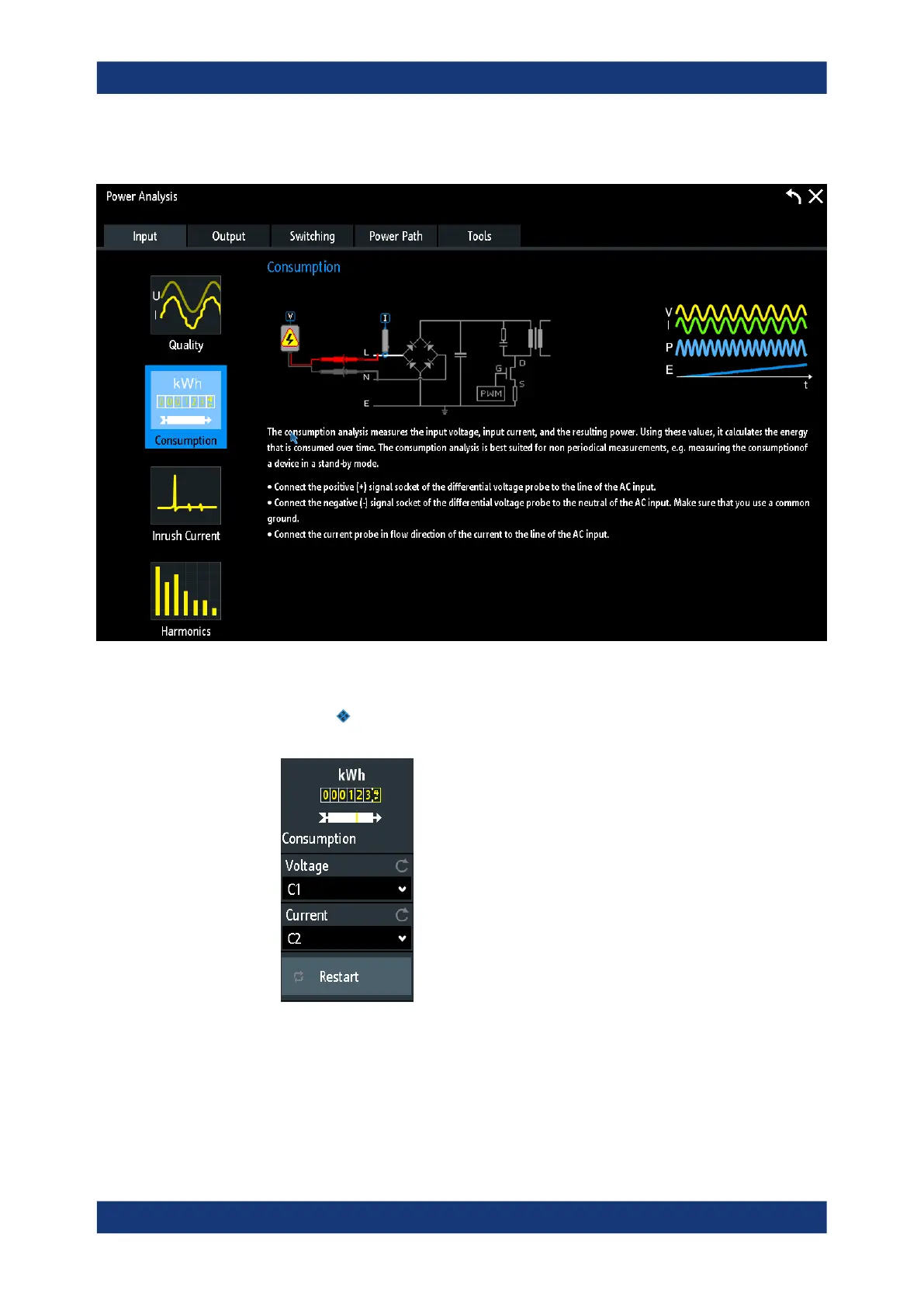

Figure 14-2: Setup of consumption analysis
c) Close the "Power Analysis".
d)
Tap the menu icon in the lower right corner of the screen.
e) Scroll down. Select "Power".
To adjust the probes, open the "Probe" menu. For details, see Chapter 14.1.2, "Probe
settings for power measurements", on page 344.
The settings for the voltage and current sources are the same as for quality analysis,
see "Voltage" on page 350 and "Current" on page 350.
Input power measurements
