Power analysis (option R&S RTM-K31)
R&S
®
RTM3000
358User Manual 1335.9090.02 ─ 09
b) In the "Input" tab, select "Inrush Current".

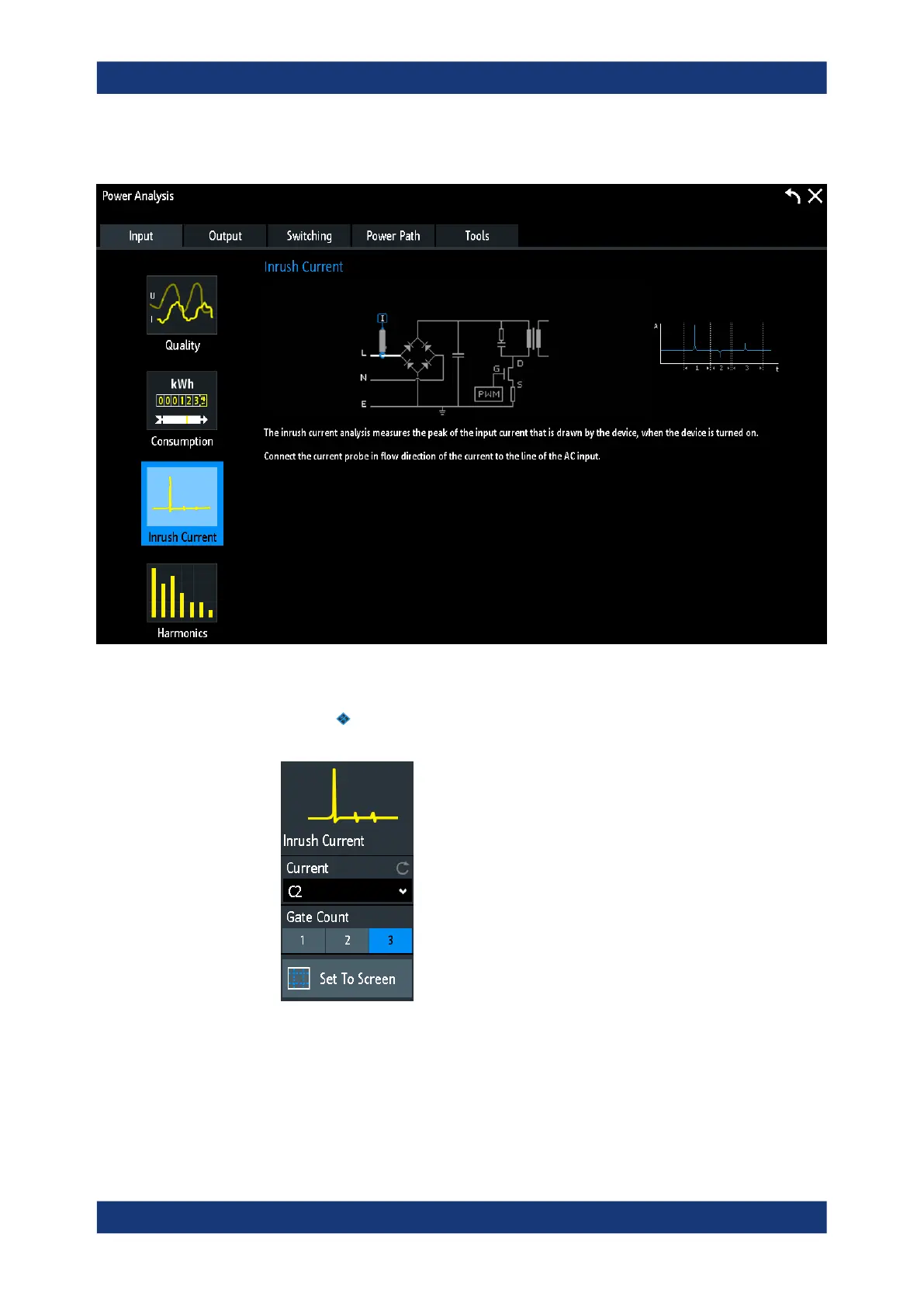

Figure 14-4: Setup of inrush current analysis
c) Close the "Power Analysis".
d)
Tap the menu icon in the lower right corner of the screen.
e) Scroll down. Select "Power".
To adjust the probes, open the "Probe" menu. For details, see Chapter 14.1.2, "Probe
settings for power measurements", on page 344.
The settings for the current sources are the same as for quality analysis, see "Current"
on page 350.
Input power measurements
