Power analysis (option R&S RTM-K31)
R&S
®
RTM3000
361User Manual 1335.9090.02 ─ 09
13. Press the Autoset button to adjust the display scales automatically or adjust them
manually.
On the screen you can see the measurement waveforms of the current, the voltage
and the power. Also, the numeric measurement results are shown in the lower left
corner. For details, see Chapter 14.5.1.1, "Ripple results", on page 359.
14.5.1.3 Ripple settings
Required probes:
●
Voltage probe
●
(Optional) Current probe
► To open the "Ripple" settings menu:
a) Press the Apps Selection key. Tap "Power Analysis".
b) In the "Output" tab, select "Ripple".

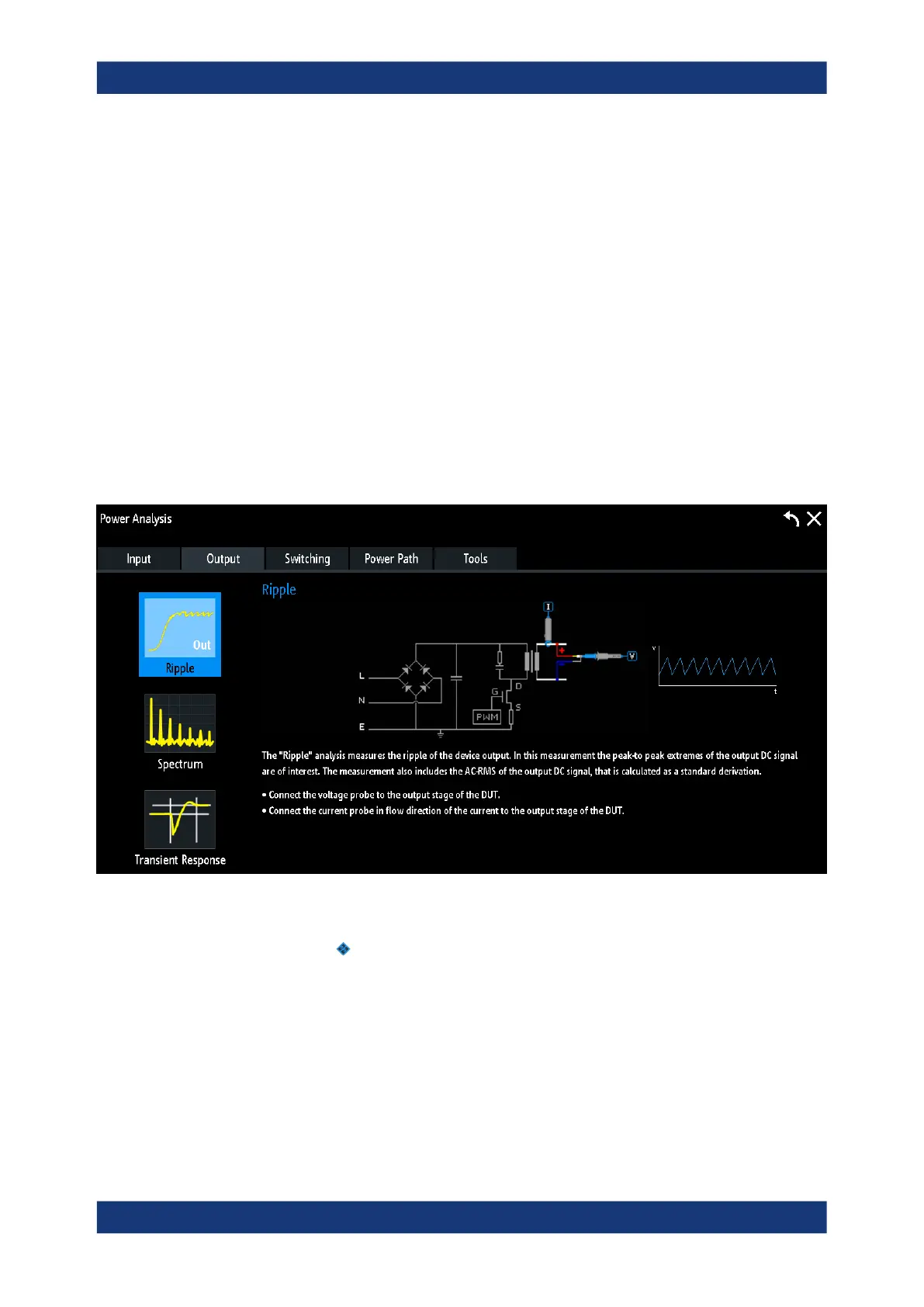

Figure 14-5: Setup of ripple analysis
c) Close the "Power Analysis".
d)
Tap the
menu icon in the lower right corner of the screen.
Output power measurements
