Power analysis (option R&S RTM-K31)
R&S
®
RTM3000
364User Manual 1335.9090.02 ─ 09
b) In the "Output" tab, select "Spectrum".

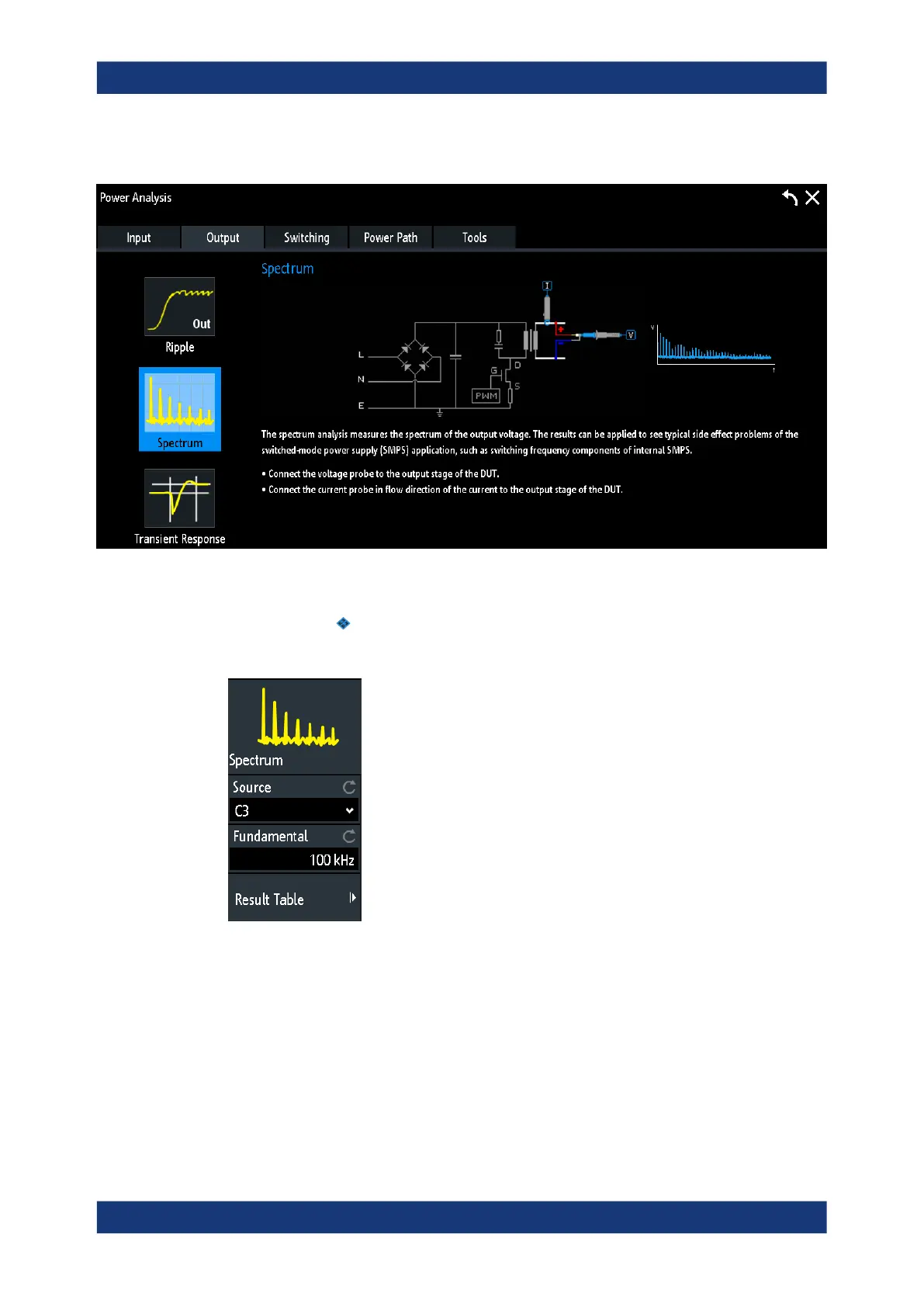

Figure 14-6: Setup of spectrum analysis
c) Close the "Power Analysis".
d)
Tap the menu icon in the lower right corner of the screen.
e) Select "Power".
Source
Sets the channel for the source input. This can be either a current or a voltage source.
Fundamental
Sets the switching frequency of the device.
Remote command:
POWer:SPECtrum:FREQuency on page 758
Output power measurements
