Power analysis (option R&S RTM-K31)
R&S
®
RTM3000
366User Manual 1335.9090.02 ─ 09
4. Connect the voltage probe to the oscilloscope.
5. Connect the voltage probe to the output stage of the DUT.
6. Press the "Menu" button and scroll to the "Power" menu.
7. Select the correct channels for the "Source".
8. Set the "Top Level" and the "Base Level".
9. Press the Autoset button to adjust the display scales automatically or adjust them
manually.
On the screen, you can see the measurement waveforms of the voltage. Also, the
numeric measurement results are shown in the lower left corner. For details, see
Chapter 14.5.3, "Transient response", on page 365.
14.5.3.3 Transient response settings
Required probes:
●
Differential voltage probe
► To open the "Transient Response" settings menu:
a) Press the Apps Selection key. Tap "Power Analysis".
b) In the "Output" tab, select "Transient Response".

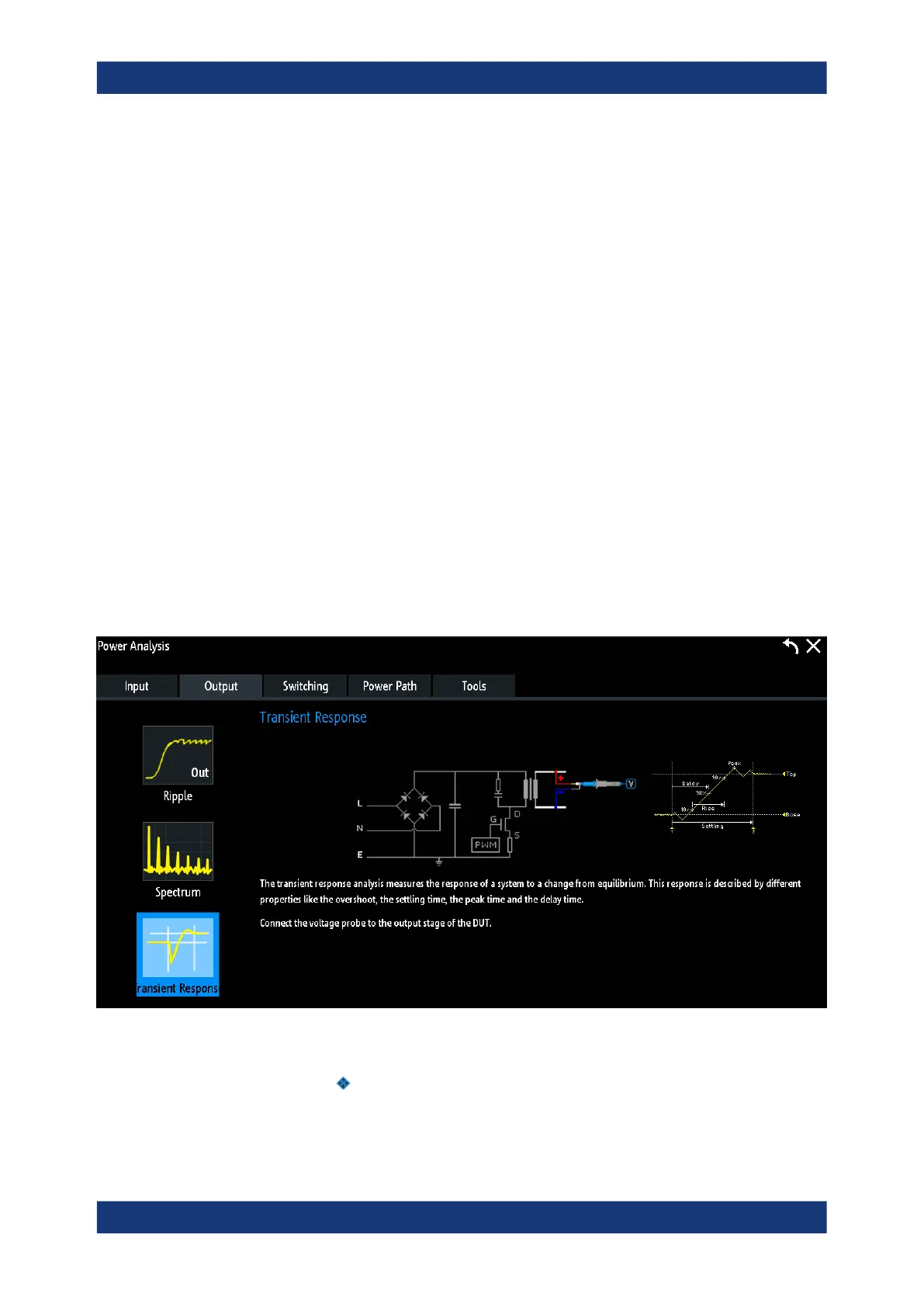

Figure 14-7: Setup of transient response analysis
c) Close the "Power Analysis".
d)
Tap the menu icon in the lower right corner of the screen.
Output power measurements
