Power analysis (option R&S RTM-K31)
R&S
®
RTM3000
372User Manual 1335.9090.02 ─ 09
c) In the "Switching" tab, select "Modulation".

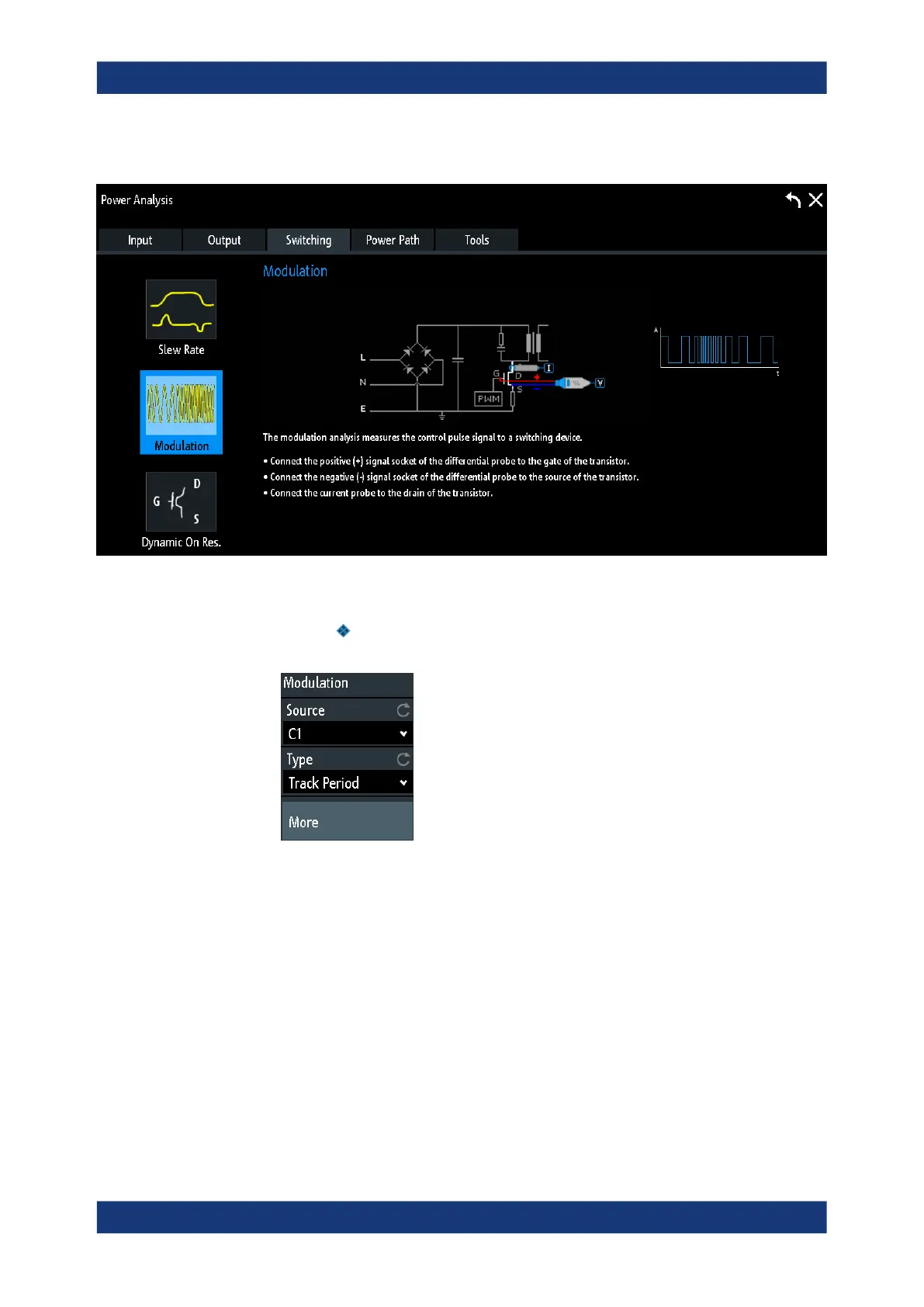

Figure 14-9: Setup of modulation analysis
d) Close the "Power Analysis" box.
e)
Tap the menu icon in the lower right corner of the screen.
f) Scroll down. Select "Power".
To adjust the probes, open the "Probe" menu. For details, see Chapter 14.1.2, "Probe
settings for power measurements", on page 344.
Source
Sets the channel for the source. This can be either a current or a voltage source.
Type
Selects the modulation type. A calculation of the waveform for the selected modulation
type is shown on the screen. The modulations types are the same as the track wave-
forms available in the math "Equation Set Editor".
Tap "More" to adjust the thresholds, hysteresis and reference edge for track calcula-
tion.
For details, see Chapter 7.2.6, "Tracks", on page 110.
Switching power measurements
