Power analysis (option R&S RTM-K31)
R&S
®
RTM3000
377User Manual 1335.9090.02 ─ 09
13. To enable statistic evaluation of the measurement results, select "Statistics" > "Visi-
ble".
14. Press the Autoset button to adjust the display scales automatically or adjust them
manually.
On the screen, you can see the measurement waveforms of the currents and the
voltages. Also, the numeric measurement results are shown in the lower right cor-
ner. For details, see Chapter 14.7.1, "Efficiency", on page 375.
14.7.1.3 Efficiency settings
Required probes:
●
Two differential voltage probes
●
Two current probes
► To open the "Efficiency" settings menu:
a) Press the Apps Selection key. Tap "Power Analysis".
b) In the "Power Path" tab, select "Efficiency".

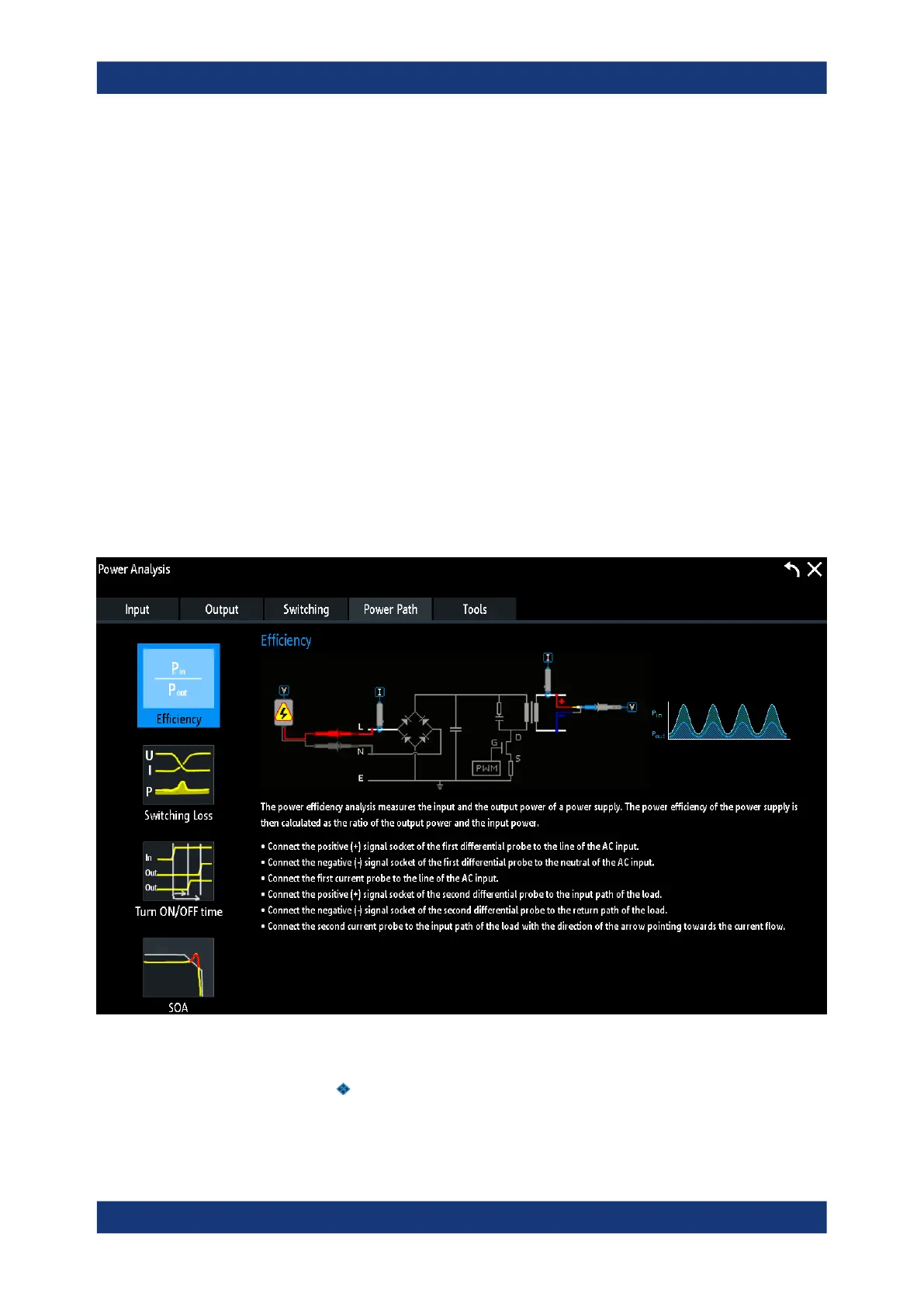

Figure 14-11: Setup of efficiency analysis
c) Close the "Power Analysis".
d)
Tap the menu icon in the lower right corner of the screen.
Power path power measurements
