Waveform setup
R&S
®
RTM3000
55User Manual 1335.9090.02 ─ 09
1. To open the "Vertical" menu:
a) Open the main menu.
b) Select "Vertical".
2. Select the parameter that is assigned to the upper vertical knob: "Offset" or "Posi-
tion".
3. Open the channel menu.
► To open the channel menu directly, press the corresponding channel key.
If the channel was active but not selected, press twice: Once to select the wave-
form, and next to open the short menu.

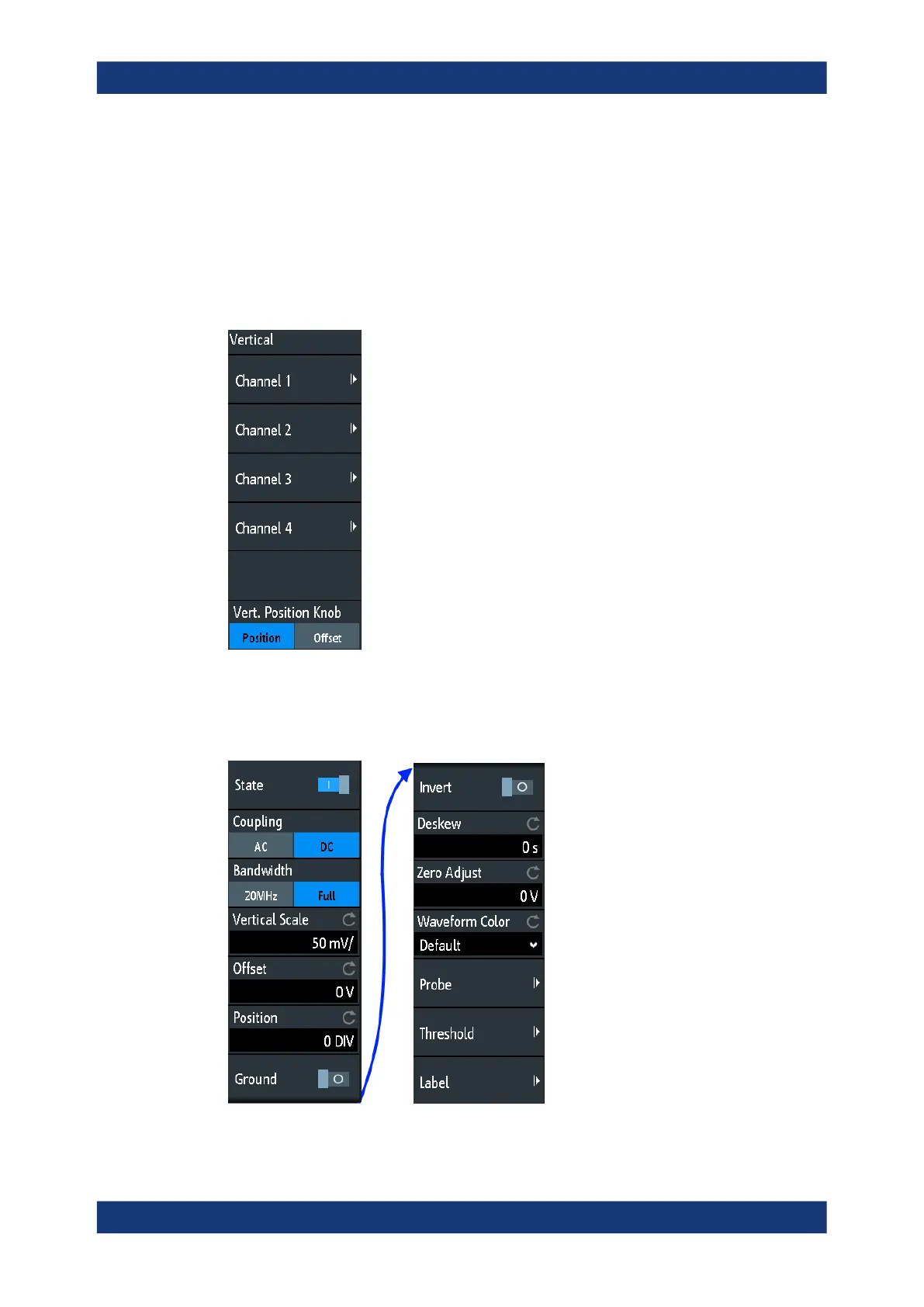

Figure 5-2: Channel menu, split into two halves
Vertical setup
