Operation
R-Concept
142 / 564

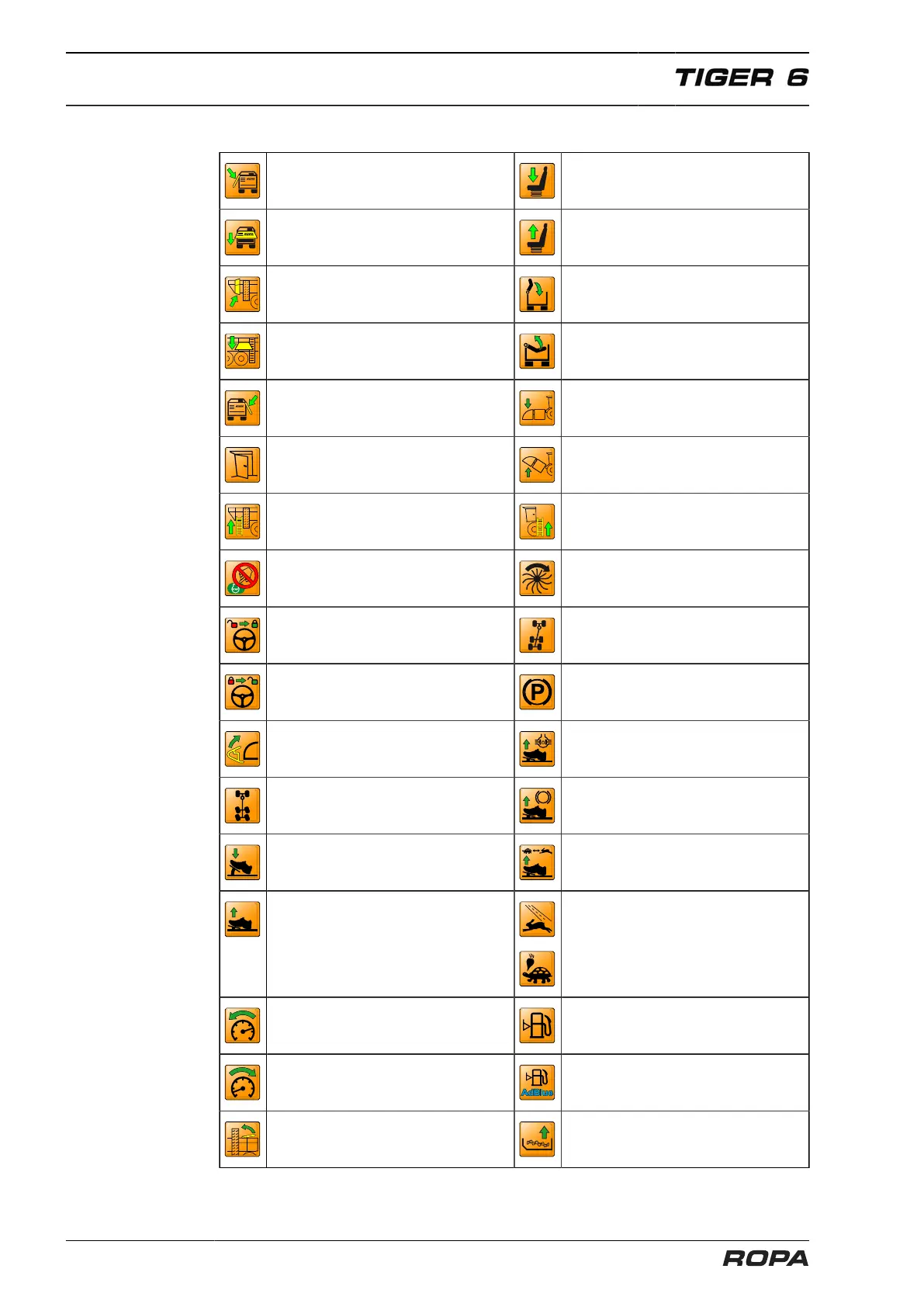

Orange warning indicators on operation
Please close engine housing door
left
Please occupy driver‘s seat
Please close rear cover Please leave driver's cabin
Please close bunker door Please put unload conveyor in
transport position
Please close protective cover lon-
gitudinal conveyors drive
Please put unloading conveyor in
lifting position
Please close engine housing door
right
Please lower lifting unit
Please close driver's cabin door Please raise lifting unit
Swing up climbing ladder bunker Swing up climbing ladder driver's
cabin
Release the start key Please switch on machine drive
Please lock main steering switch Please activate offset-steer 0-1-2
Please unlock main steering
switch
Please release parking brake
Please swing up and lock leaf
sensor
Please release drive pedal for
switching on the diff. lock
Please put rear axles in central
position
Please release brake pedal
Please press drive pedal Please release drive pedal to
change the operating mode
Please release drive pedal Please change operating mode
Please drive slower Please fill up fuel tank
Please drive faster Please fill up AdBlue®
Please swing up bunker bar Raise bunker auger rear
