Operation
Joystick
151 / 564

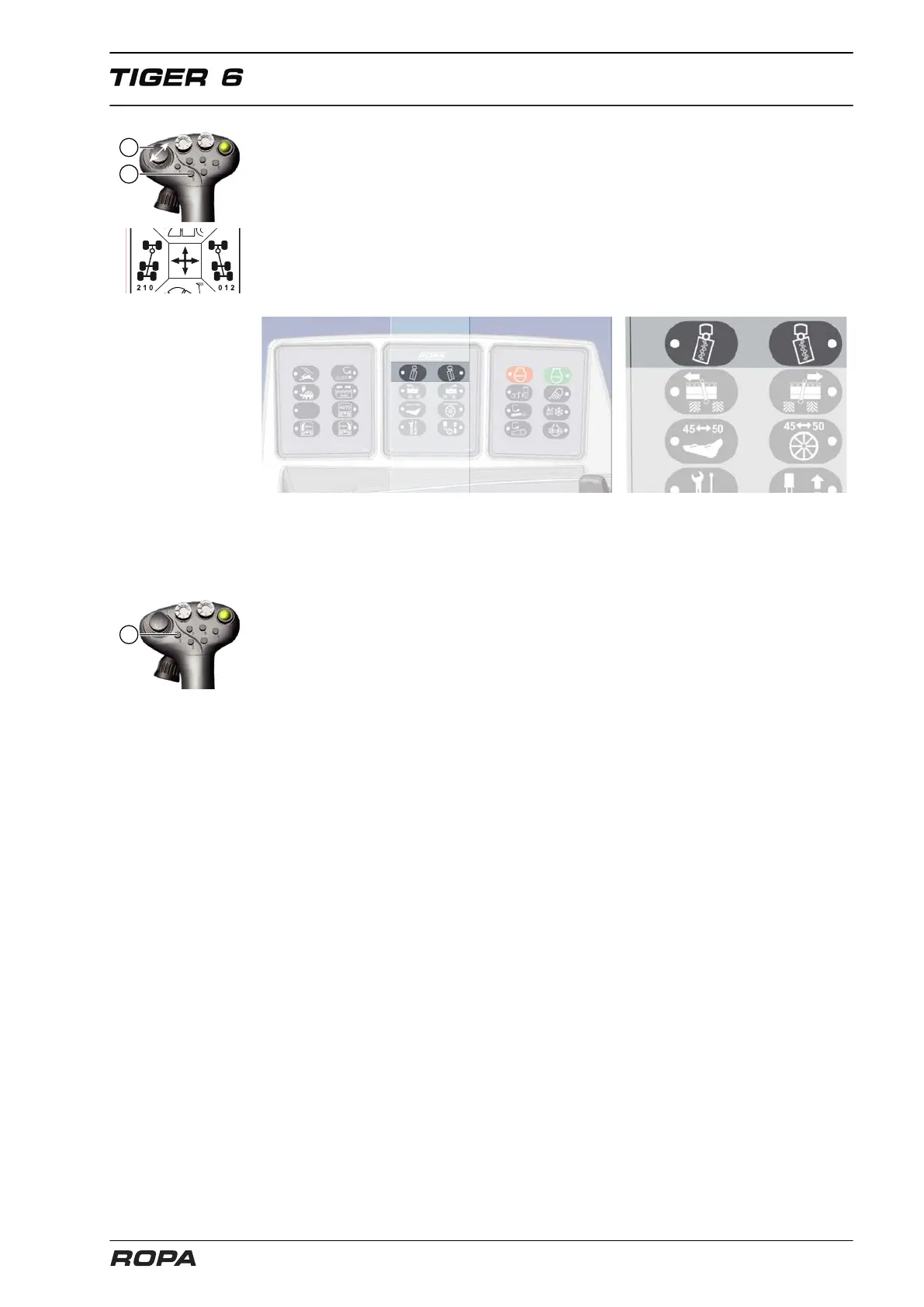

Mini joystick (1) left/right
Move mini joystick (1) left/right and hold tight for approx. 2 sec.
= (Pre-select offset-steer left/right)
Move mini joystick (1) to the left and hold tight for approx. 2 sec.
= Pre-select offset-steer left
Move mini joystick (1) to the right and hold tight for approx. 2 sec.
= Pre-select offset-steer right
Set the stage of offset-steer 0-1-2 on keypad II using the keys and activate it pressing
the key (3) at the joystick.
A comprehensive description can be found in the chapter "Steering" (See Page 193).
(2) Key for activation of U-turn steer/all-wheel steer and for synchronizing of
articulation
U-turn steer/all-wheel steer (only in operating mode "Field").
The driving speed must be over 0.5 km/h!
U-turn steer
For this purpose, shortly tip on key (2).
The articulated joint bends matching the front wheels and follows all the steering
movements of the front axle. The rear wheels steer counteractive to the steering
wheel angle.
Using this steering variant, you achieve the smallest turning clearance circle diameter.
As the designation suggests, this is the optimum steering variant for making a U-turn
with the machine (See Page 205).
All-wheel steer
For this purpose, press the key (2) for at least 2 seconds. When you activate this
steering variant, the articulation joint automatically goes into 0° position and remains in
this position. The rear wheels steer simultaneously with the front wheels, but in oppo-
site direction. All-wheel steer largely corresponds to U-turn. But the articulation does
not co-steer (See Page 205).
Synchronise articulation steering
In the operating mode "Road", the key has the additional function "Synchronizing artic-
ulation steering" (See Page 197).
Central position of rear axles in operating mode "Road"
(same function as the key (3))
