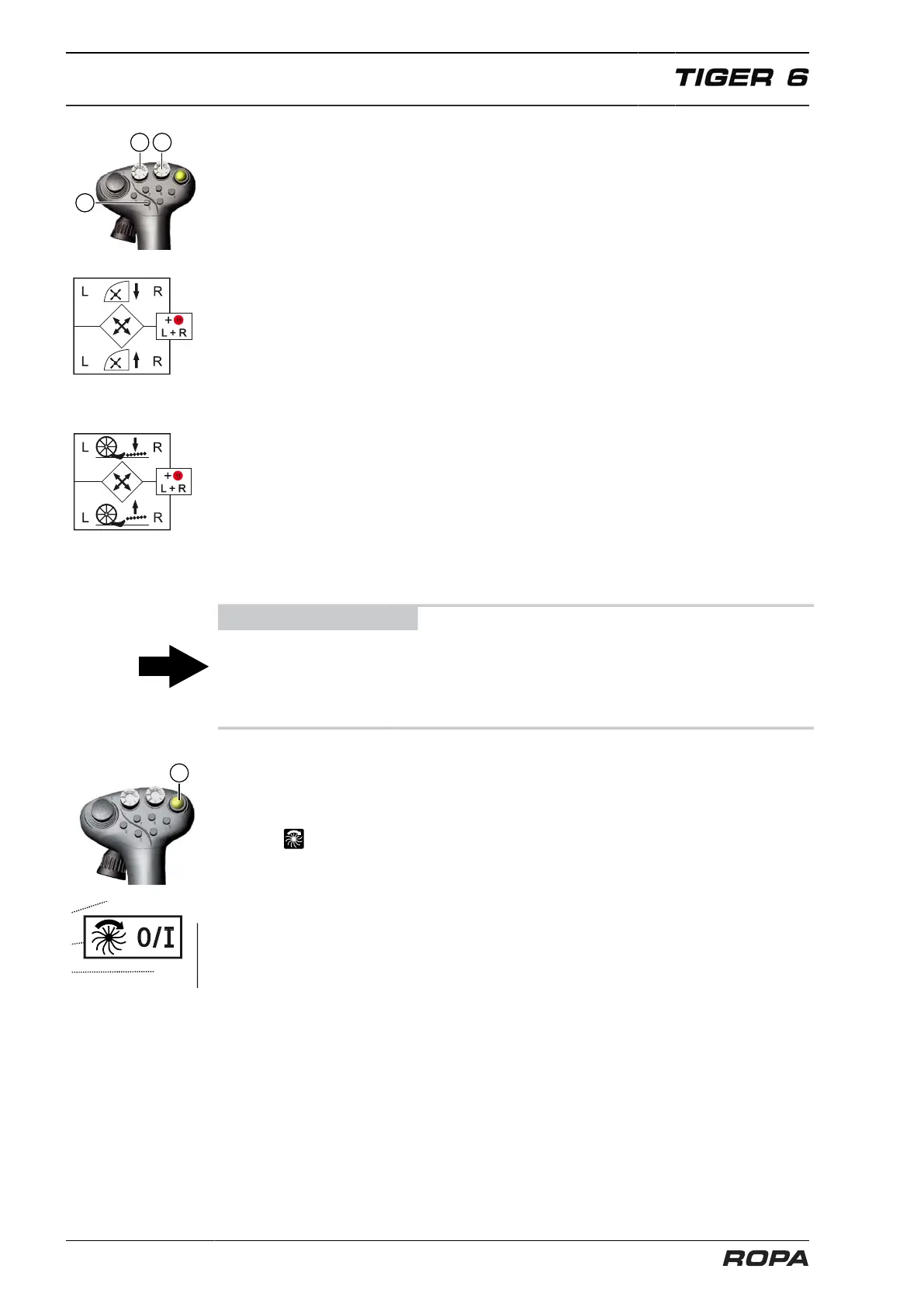

Operation
Joystick
152 / 564
(3) Key for activation of offset-steer 0-1-2 in operating mode "Field" and central
position of rear axles in operating mode "Road"
The driving speed must be over 0.5 km/h! For comprehensive description See
Page 202.
(4) X-Y key defoliator depth
Push the key diagonally to the front left/right:
Depth-control wheels left/right higher = leaf topping lower.
Pull the key diagonally to the back left/right:
Depth-control wheels left/right lower = leaf topping higher.
(5) X-Y key lifting depth
Push key diagonally to the front left/right: Raise depth-control shaft left/right.
Roller movement is lower then. The lifting depth increases, i.e. the lifting shares are
moved lower in the ground.
Pull the key diagonally to the back left/right: Lower depth-control shaft left/right.
Roller movement is higher then. This raises the shaft movement, the lifting depth is
reduced, i.e. the shares are moved shallower.
ADVICE
The keys (4) and (5) are programmed for the following dual function: if, when pressing
the X-Y keys (4) and (5), simultaneously the multi-key (11) is pressed, then both sides
of the defoliator or lifter are adjusted simultaneously, no matter to which side you move
the X-Y key.
(6) Key machine drive ON/OFF
Pressing this key you switch the drive of defoliator, lifter, infeed conveyor, strainer
wheel, elevator and bunker auger on.
This icon appears on R-Touch.
If the key is pressed again, then the drive is turned off again.
The machine drive may only be switched on if the following conditions are fulfilled:
operating mode "Field" is switched on, articulation joint of the unload conveyor is
swung out and driver‘s seat is occupied.
