Operation
Strainer wheels (turbines)
306 / 564

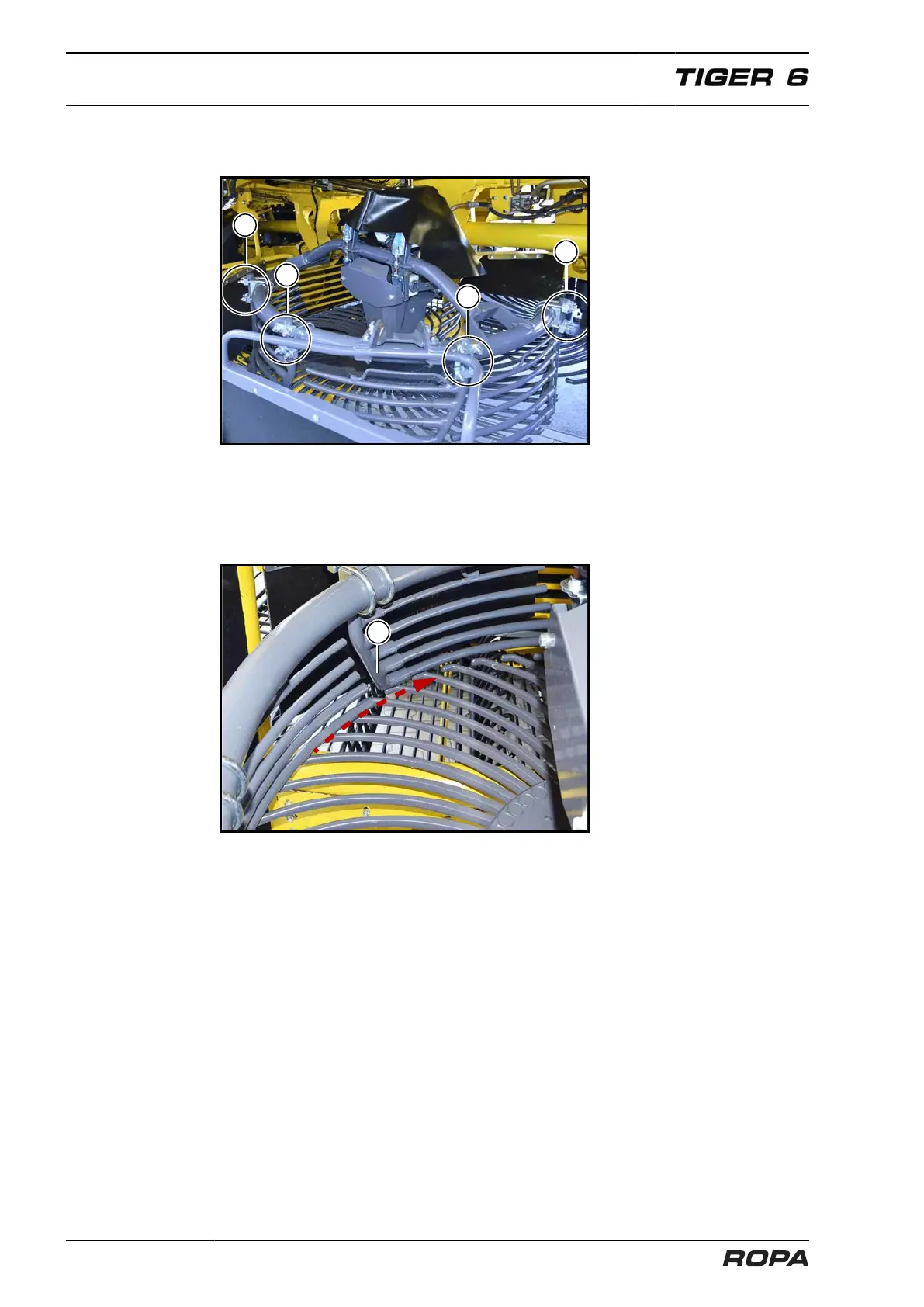

Really simple and fast to perform: individual adjustment of each single guide grid in
height, inclination and angle after loosening of 4 hexagonal nuts (7)
In order to achieve smooth, low-damage beet flow, the guide grids must be set initially
highly precise in all 3 direction. During transfer of sugar beet from the outer grid to the
next one, the beet should never hit on the oblique holding shaft (8). That's why the
ends of the guide grid rods must always border within the holding shaft (8) of the next
guide grid.
