ROPA Tiger 6 - Page 448

Maintenance and Service
Elevator
448 / 564

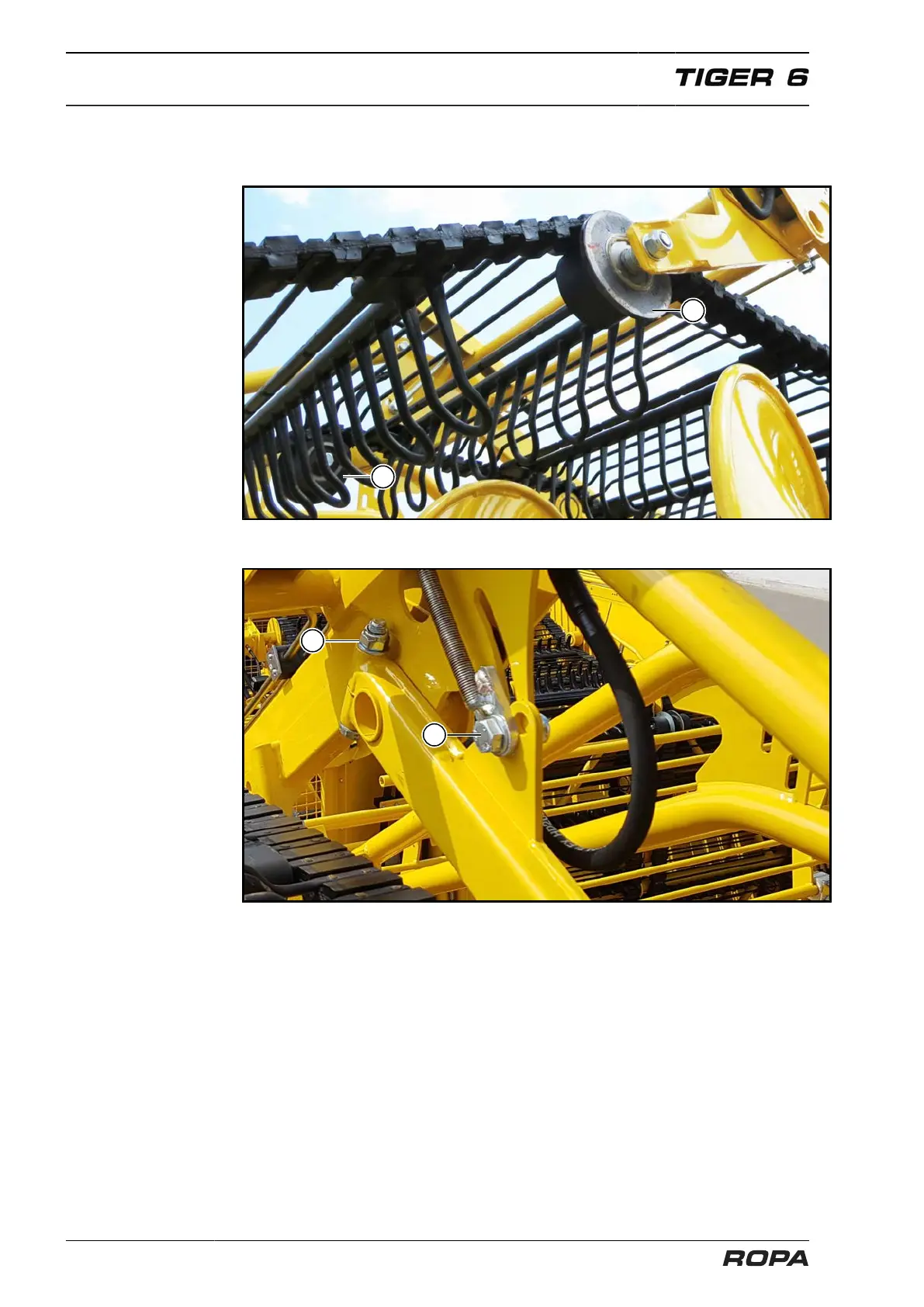

4 If it does not reach this dimension, the elevator belt is already tensioned too tight
with the two tension rollers (1).
If the dimension is correct, continue with section 8.
1
1
5 Loosen the two clamping bolts (2) rear and front on the clamping arm.
2
2
