Maintenance and Service
Elevator
449 / 564

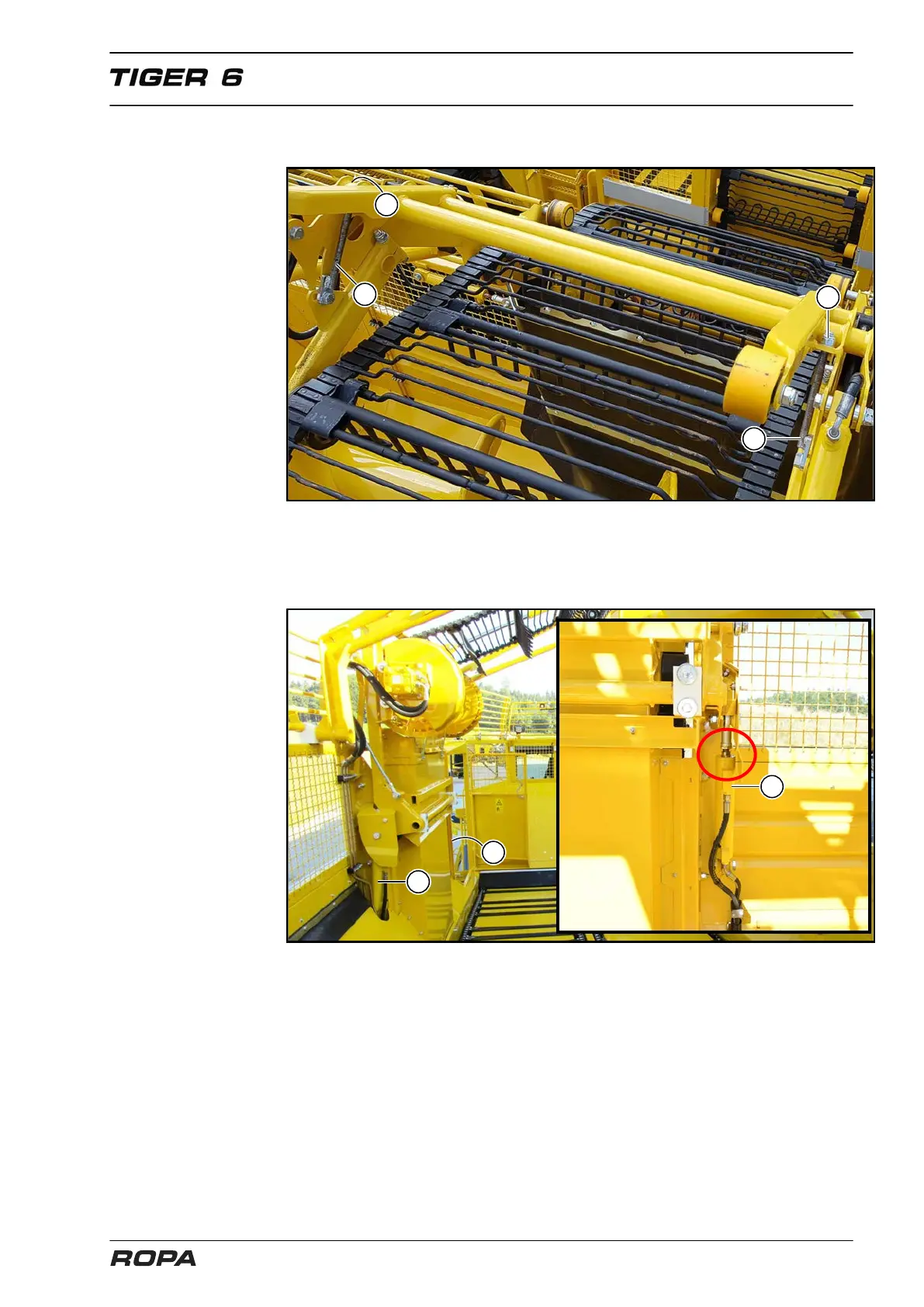

6 Reduce tension of elevator belt: adjust the tension by turning the nuts (3) down on
the tie rods (4) of the clamping arms to the same adjustment.
7 Repeat items 1 - 3 and check the dimension at the cylinders (13) again.
8 Then check the cylinders of the left elevator rocker arm; the cylinders (10) must be
retracted to the stop.
9 If the cylinders (10) are not completely retracted, the elevator belt is already ten-
sioned too tight with the two clamping rollers (1).
Release the elevator belt (see section 5 and 6).
Unfold the elevator again (see section 1-3).
