Maintenance and Service
Elevator
450 / 564

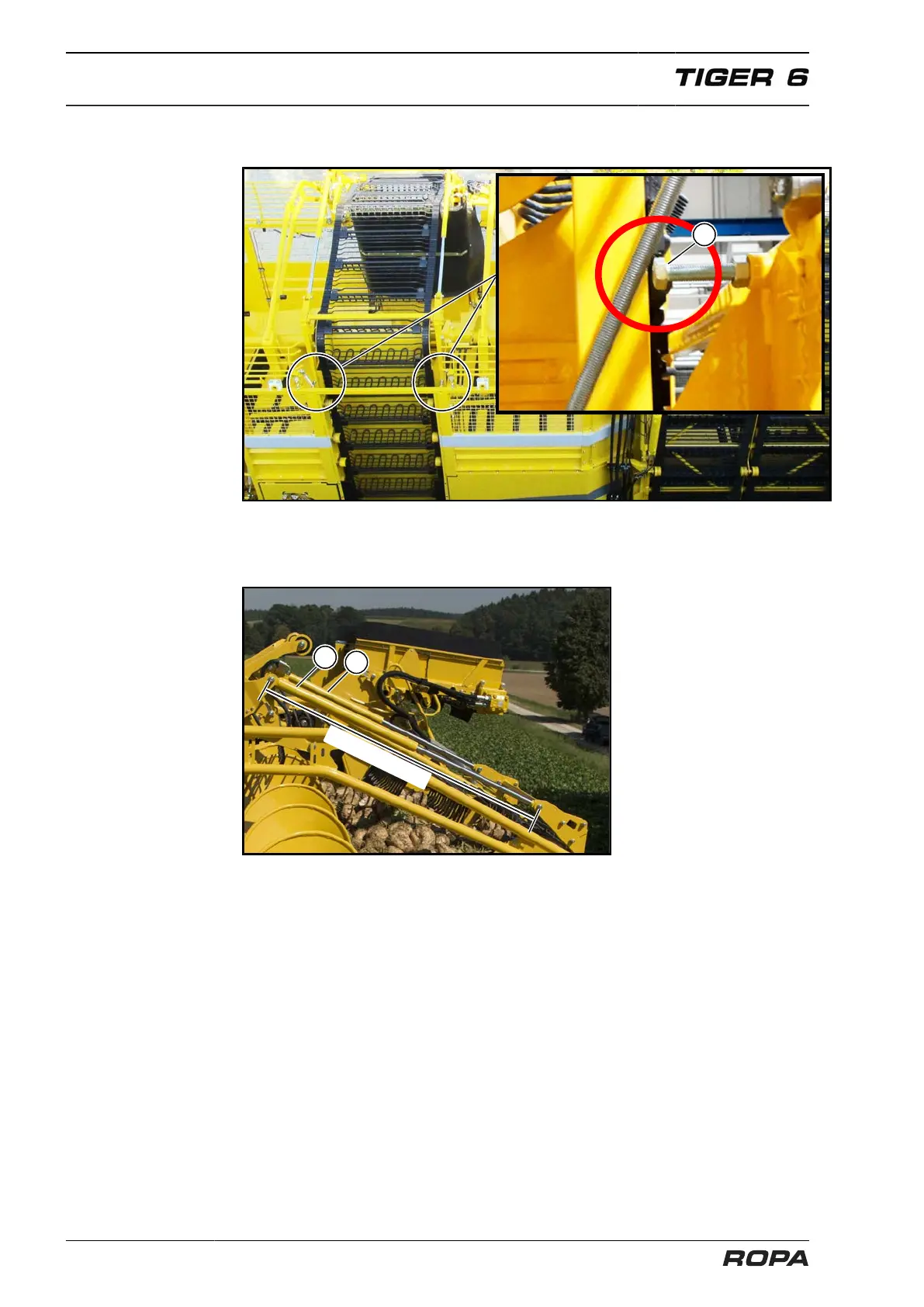

10 Check the adjustment of the stop bolts (11); the distance between the screw head
and the elevator rocker arm must be approx. 2 mm.
11 Check the cylinder length of the two support cylinders; the cylinders (12) must be
extended to the stop. The cylinders are extended to the stop if the cylinder length
from the centre of the screw head to the centre of the screw head is 1460 mm.
12 If the cylinders (12) are not completely extended, the elevator belt is already ten-
sioned too tight with the two clamping rollers (1).
Release the elevator belt (see section 5 and 6).
Unfold the elevator again (see section 1-3).
