Boards for HiPath 3000
Central Boards
Front panel

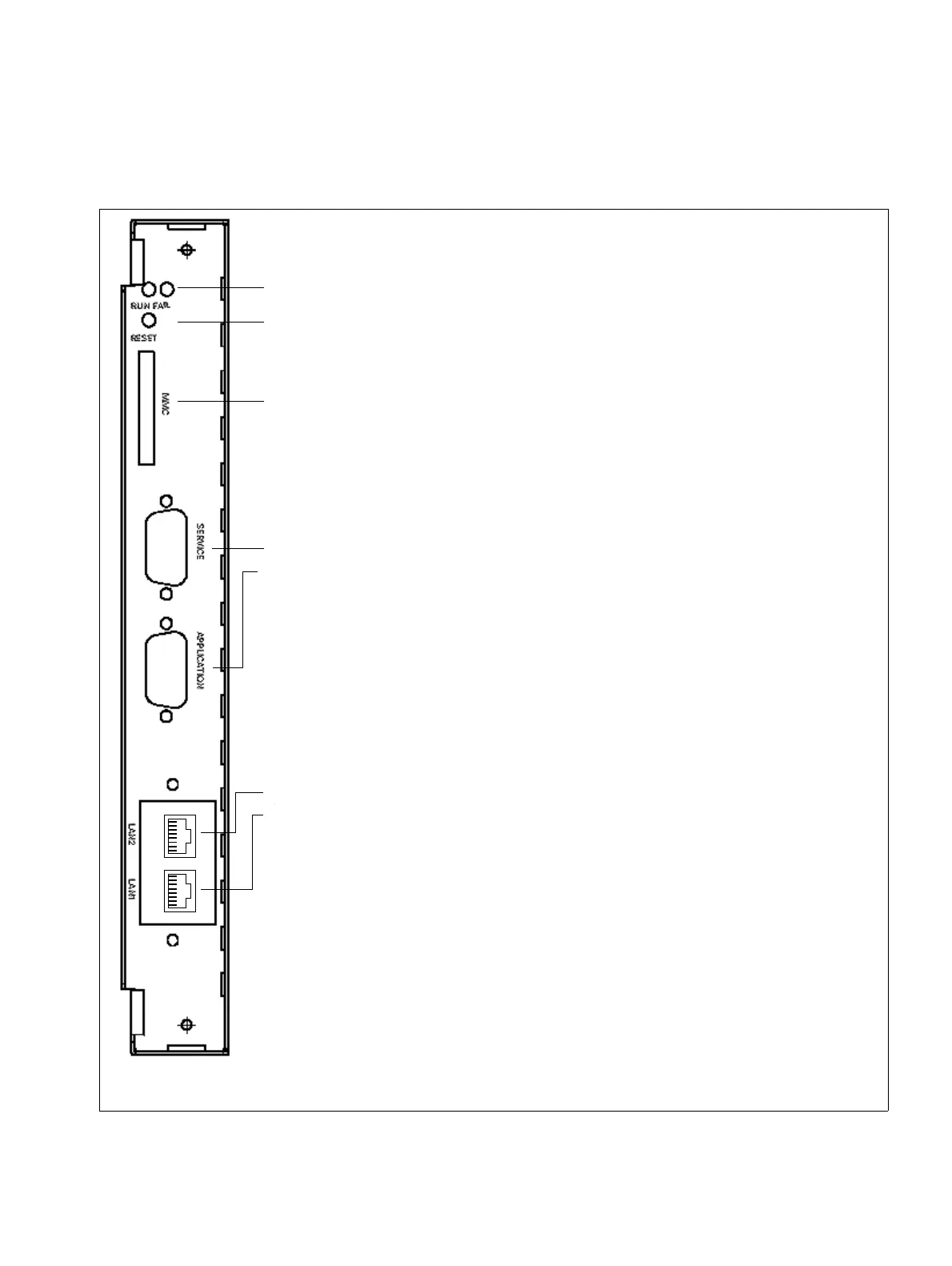

Figure 3-5 CBSAP - Front Panel
Two LEDs indicating the board status:
● Run (green, flashing: 0.5 s on/0.5 s off) = error-free operation
● Fail (red) = error encountered
Reset/reload switch
Slide-in shelf for MMC
Two Ethernet (10BaseT) LAN connectors (8-pin RJ45 jacks) via LIMS:
● LAN2 (not assigned)
● LAN1 (administration via HiPath 3000 Manager E and CTI func-
tions)
The LAN interface status is indicated by two LEDs:
● LED1:
– Green = 100 Mbps online (link)
– Yellow = 10 Mbps online (link)
– Flashing = active
● LED2 (green):
– On = full-duplex (FDX)
– Off = half-duplex
V.24 interfaces (9-pin SUB-D plug):
● Service (X50) = for connecting the service PC
● Application (X51) = for connecting a printer or application
