inst_h3.fm

P31003-H3560-S403-54-7620, 09/05

HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual

4-55

Installing HiPath 3000

Installing HiPath 3800

4.2.6.2 Expansion Cabinet Backplane

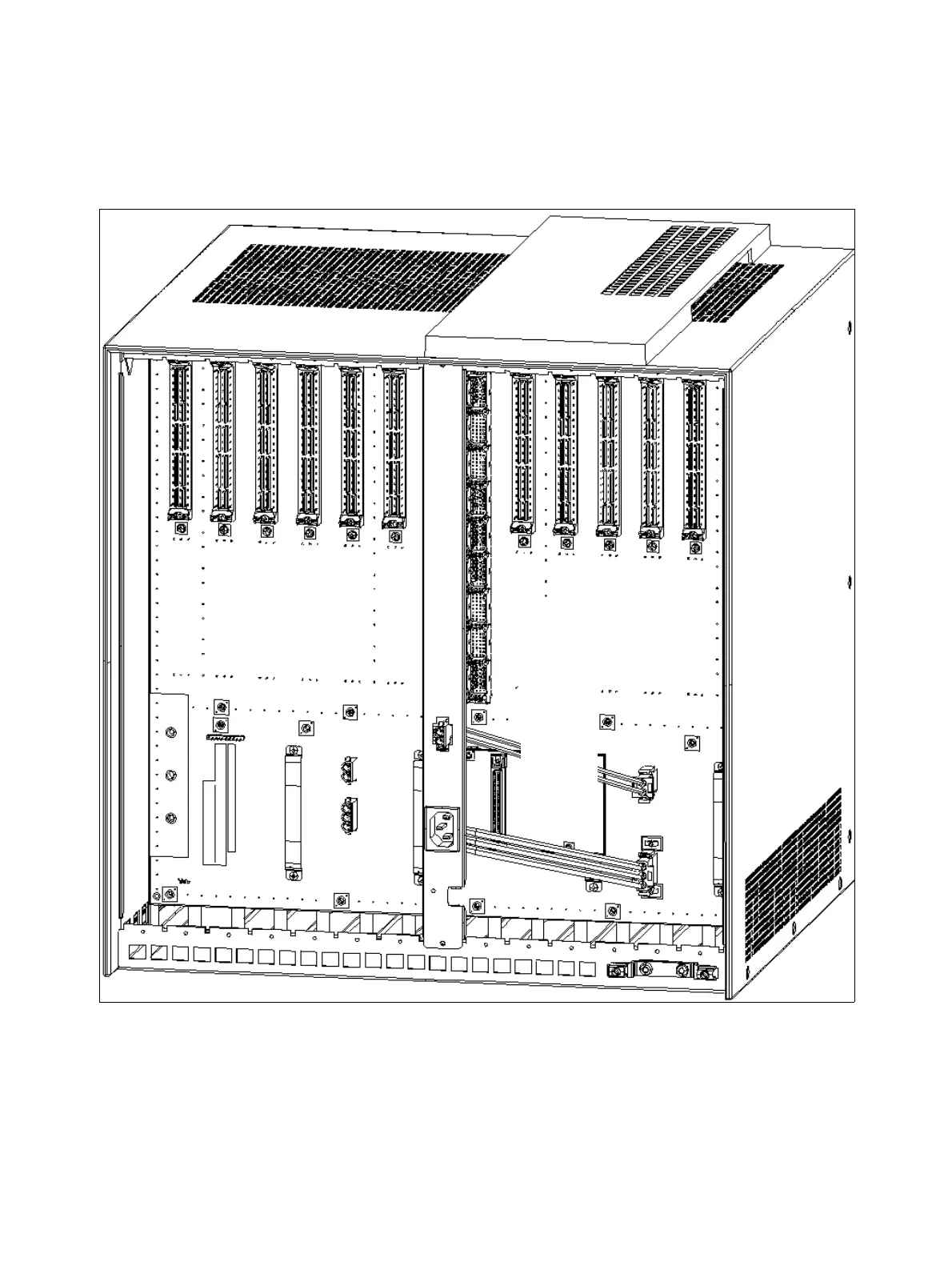

Figure 4-31 HiPath 3800 - Expansion Cabinet Backplane (S30804-Q5393-X)

13 SIVAPAC connectors

for peripheral boards

DBSAP with 68-pin

DB68 mini-jack (connec-

tion to BC)

DC port

AC port
