Installing HiPath 3000
P31003-H3560-S403-54-7620, 09/05
4-94 HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
inst_h3.fm
Installing HiPath 3750, HiPath 3700
4.3.3.4.2 Removing the Cabinet Covers
How the covers are secured
The front cabinet cover (for board servicing) and the rear cabinet cover (for cable servicing) are
each secured by two snap fasteners.
You can remove the upper and lower grills on both covers. This allows the cables to be routed
to the MDFU or MDFU-E for example.
To replace a cover, position the snap fasteners in the two guides and press down on the cover
until it snaps into place.
Procedure (Figure 4-49)
Mounting the cover
Step Activity
1. Insert a slotted screwdriver (with the blade vertical) into a recess (1).
2. Carefully swing the handle of the screwdriver toward the center of the cabinet (2)
until the fastener snaps out and the cover loosens.
3. Then insert the screwdriver in the second recess (3), loosen its snap fastener.

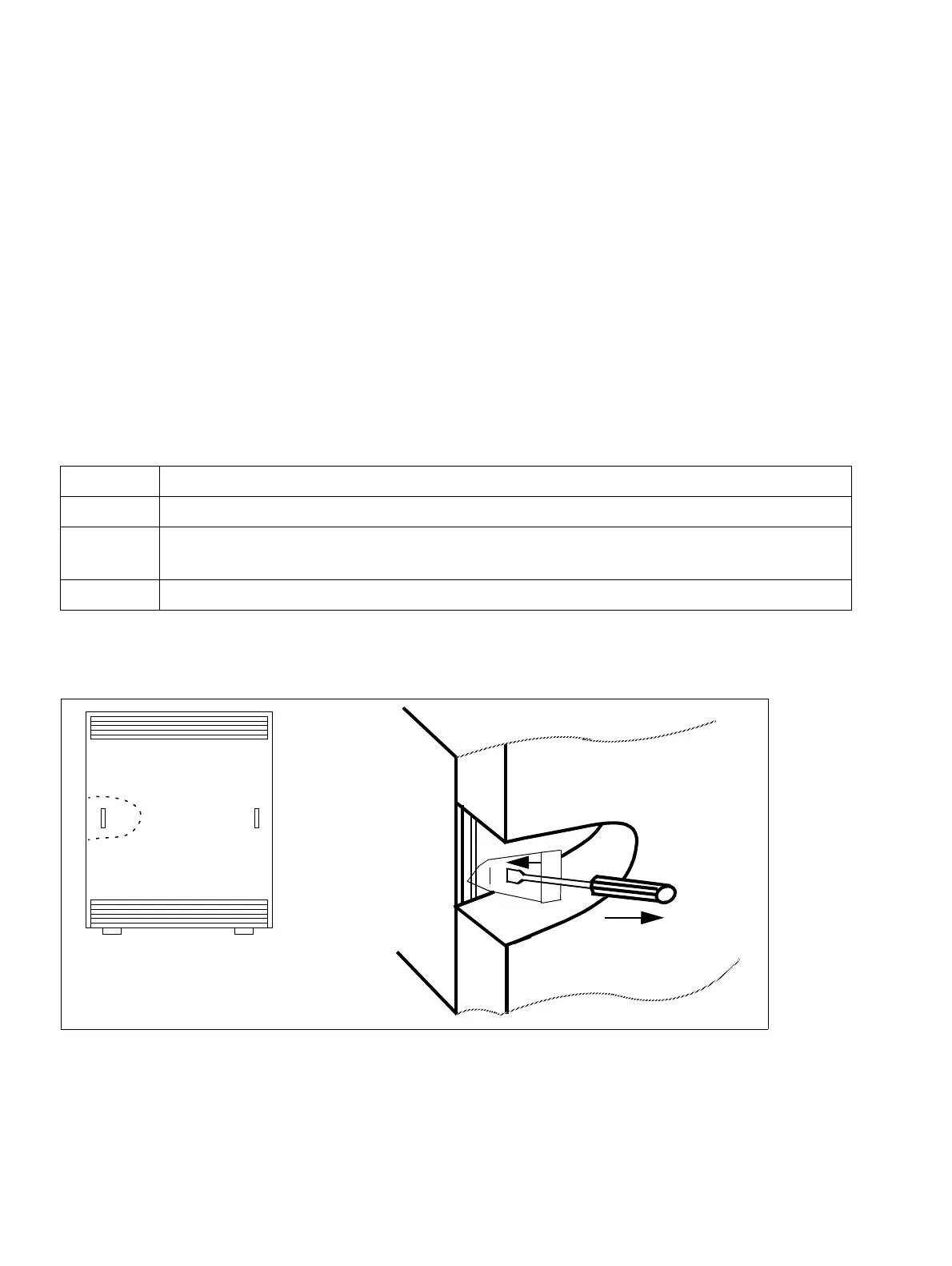

Figure 4-49 HiPath 3750 - Removing the Front and Rear Covers
Cabinet
(1)
(2)
(3)
