inst_h3.fm
P31003-H3560-S403-54-7620, 09/05
HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
4-103
Installing HiPath 3000
Installing HiPath 3750, HiPath 3700
4.3.3.4.7 Setting Up a Two-Cabinet System Side by Side
Procedure
Installing a two-cabinet system
Laying the Connecting Cables
To lay the connection cables between the cabinets, first remove the lower grills in the rear cov-
ers.
Step Activity
1. Remove the front and rear cabinet covers.
2. Place the system cabinets side by side at the installation site and make sure that
they are level and stable. Correct any differences in height.
3. If mounting the system on the floor or on a table, attach the two cabinets using
four connecting plates each held by two screws with washers (Figure 4-56).
Make sure that the connecting plates are mounted in the correct direction (inside
the cabinets and pointing inward).
7
DANGER
The connecting plates must be installed to ensure proper grounding for free-stand-
ing systems.

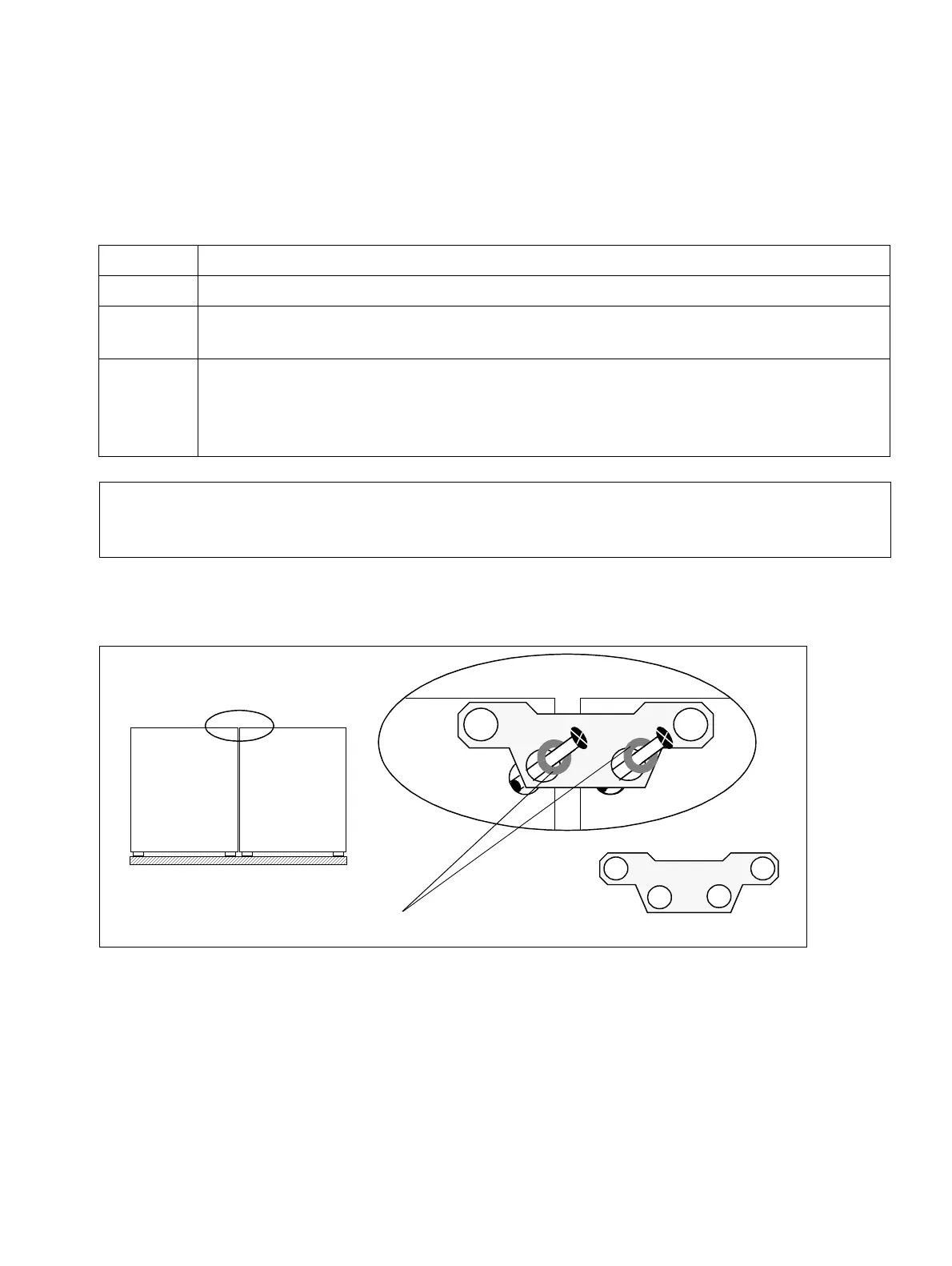

Figure 4-56 HiPath 3750 - Installing a Two-Cabinet System (Side By Side)
BC EC1
Inside the cabinet
Washers
BC EC1
To Next Page
