Peripheral Boards
Packing protection covering

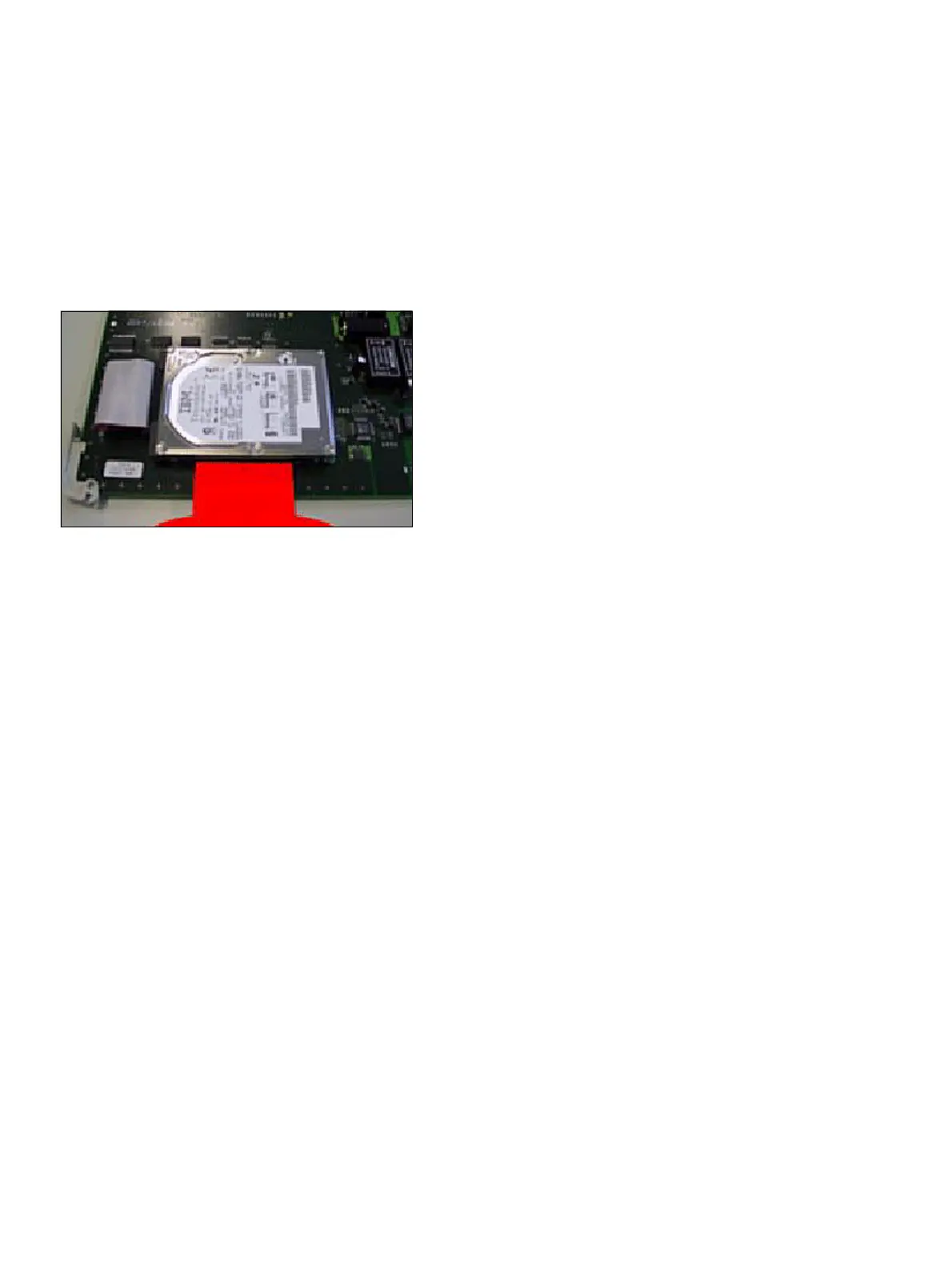

You must remove the red packing protection covering (cardboard block), shown in the following
picture, before starting up the board.
If it is necessary to transport the board again at a later time, for example, for servicing, you must
reattach the packing protection covering.
Figure 3-59 IVMP8 and IVMP8R (not for U.S.) - Packing Protection Covering
