Central Boards
BSG 48/38
You can use a BSG 48/38 battery cabinet instead of a battery pack to extend the bridging time
in the event of a power failure. The BSG 48/38 battery cabinet (S30122-K5950-F300) consists
of
● an upright housing
● a charging rectifier
● a battery set (38 Ah/48 V)
The battery cabinet is designed for direct connection to the HiPath 3750 and HiPath 3700 com-
munication system. The DC power cable (S30122-X5950-F310) provided lets you connect any
UPSM to the battery cabinet (do not connect to extension cables). A schematic diagram shows
the connections between the BSG 48/38 battery cabinet and the communication system (UP-
SM) Figure 3-38.
>
For detailed information about safety precautions as well as using and connecting
the battery cabinet, refer to the installation and startup instructions that came with
the cabinet.

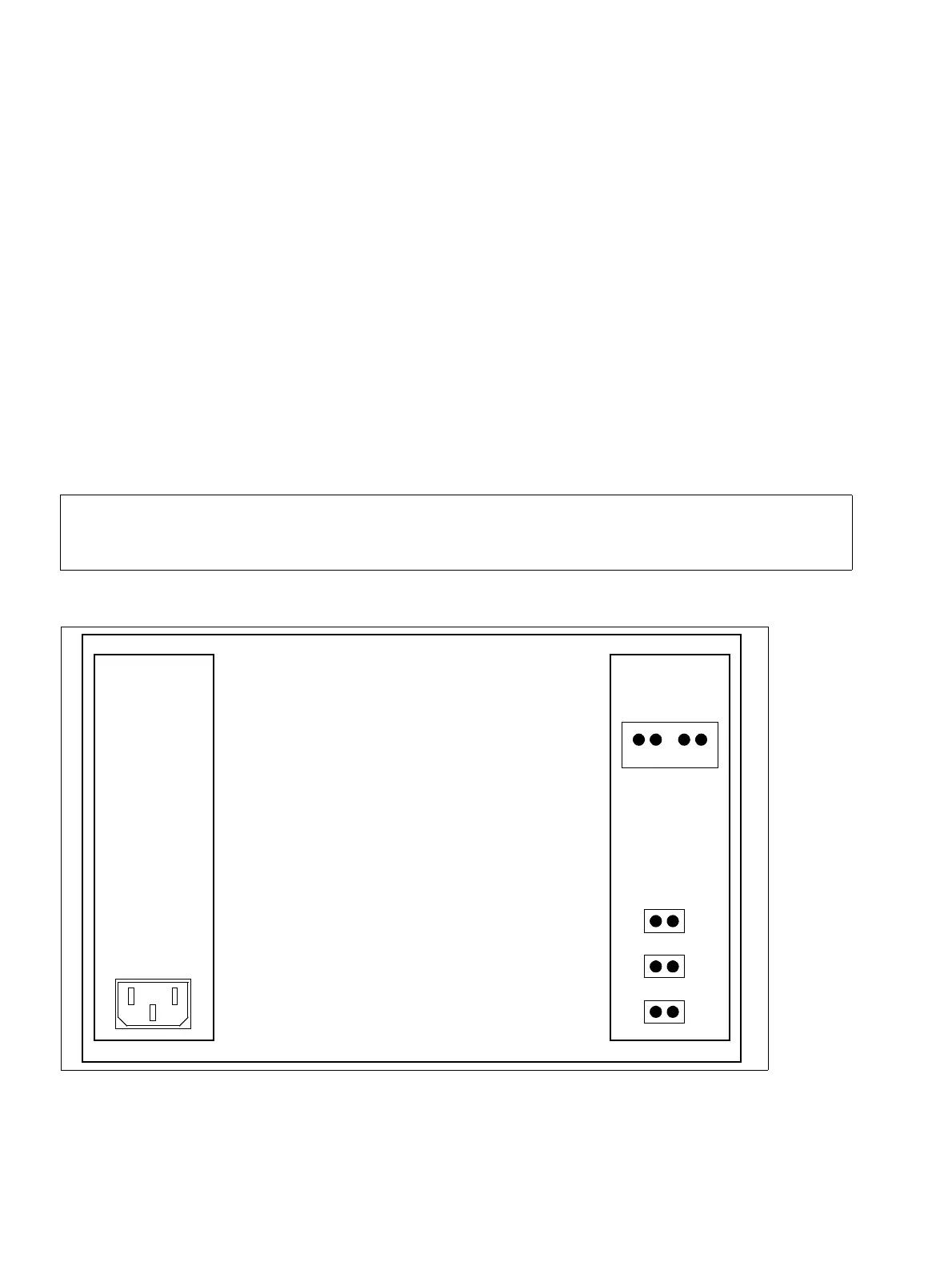

Figure 3-37 Rear View of the BSG 48/38 Battery Cabinet (S30122-K5950-F300)
DC output 2:
–48-V special
outputs
AC input
230 V
+– +–
1
2
3
DC output 1:
–48 V to HiPath
3750 and HiPath
3700
BSG 48/38
