Boards for HiPath 3000
Peripheral Boards
Switches and LEDs
Lockout switch settings
● Pressed = free (default)
● Not pressed = locked: existing connections remain active, new connections are locked.
– The yellow LED lights up when all connections are ended and the board is effectively
locked.
– The yellow LED flashes when a lockout request is entered (via lockout switch or soft-
ware) but at least one call is still active.
To reset the board to the default state, activate the lockout switch twice within the first 10 s of
board startup.

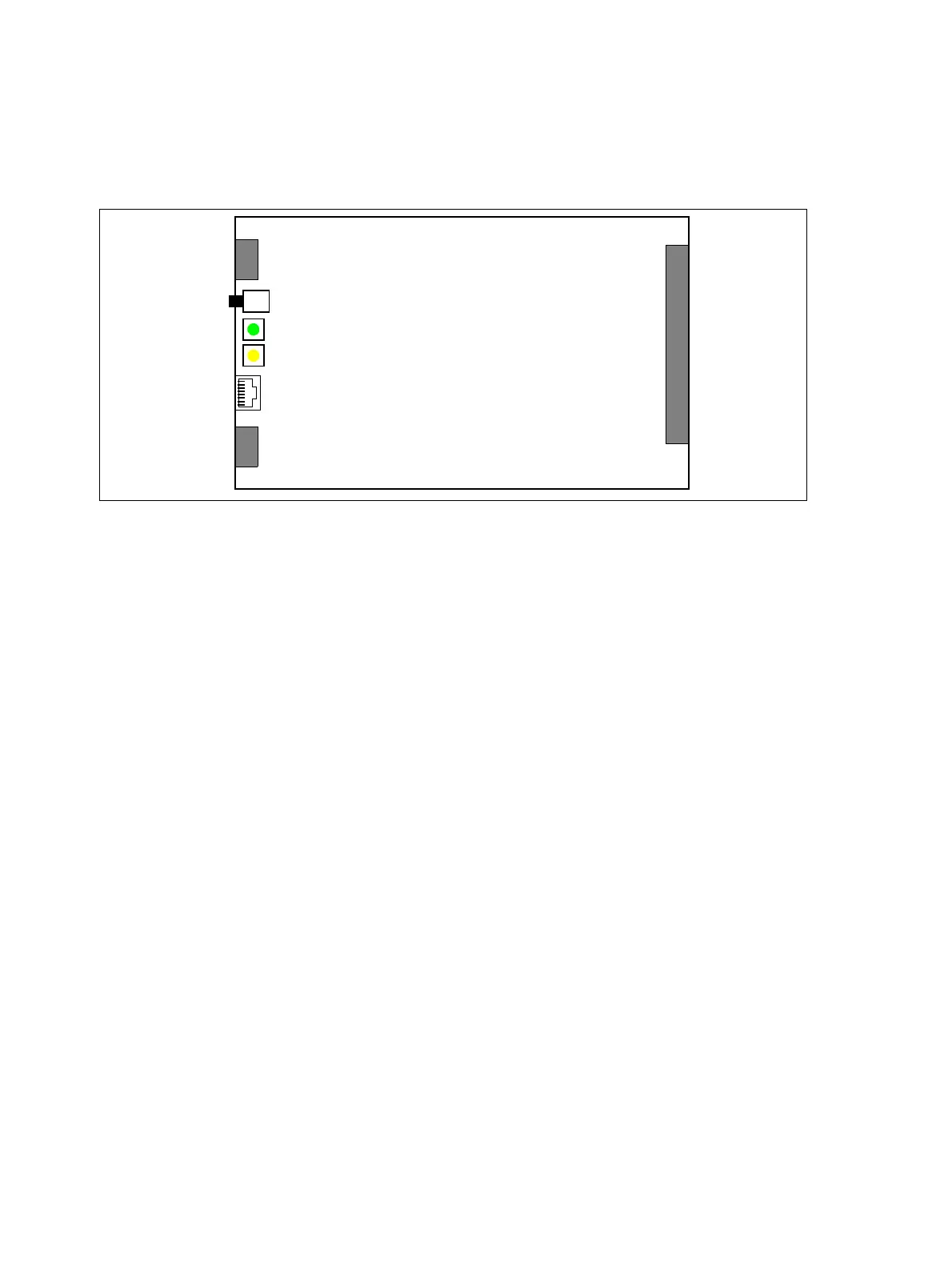

Figure 3-60 IVMP8, IVMP8R (S30122-Q7379-X100, -K7379-Z100) (not for U.S.)
2
50
X1 = con-
nection to
CUP/
CUPR
Lockout switch
LED (green)
LED (yellow)
X2
10
2
X4
10
2
X3 = LAN
connector,
8-pin RJ45
jack
X3
X1
