HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
3-131
Boards for HiPath 3000
Peripheral Boards
Packing protection covering
You must remove the red packing protection covering (cardboard block), shown in the following
picture, before starting up the board.
If it is necessary to transport the board again at a later time, for example, for servicing, you must
reattach the packing protection covering.

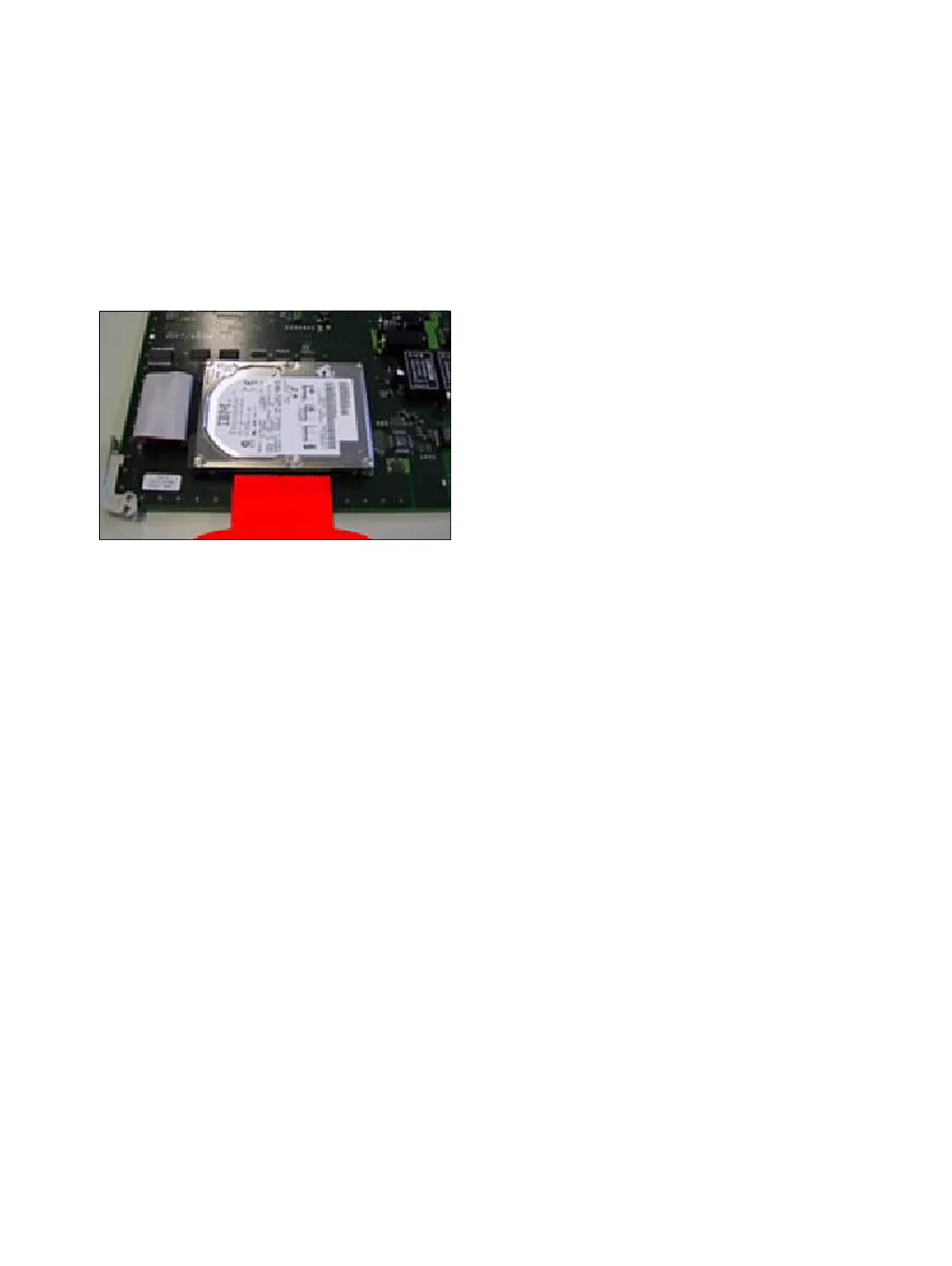

Figure 3-61 IVMS8 and IVMS8R - Packing Protection Covering
