Siemens Hipath 5000 Service Manual

boards.fm
P31003-H3560-S403-54-7620, 09/05
HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
3-375
Boards for HiPath 3000
Options
Slot
Insert the REALS board into the slot marked 3 in the lower part of the shelf in the basic cabinet
and apply pressure until you hear a click (see Figure 4-22).
The slots for the power supply units and for the REALS board must be covered with an outer
panel before the system is started up. The outer panel is fixed onto the shelf with screws (see
Figure 3-167).
Cable and connector assignment
Table 3-174 shows the assignment of the SIVAPAC connector X116 on the backplane and the
assignment of the jumper strip in the MDFU-E.

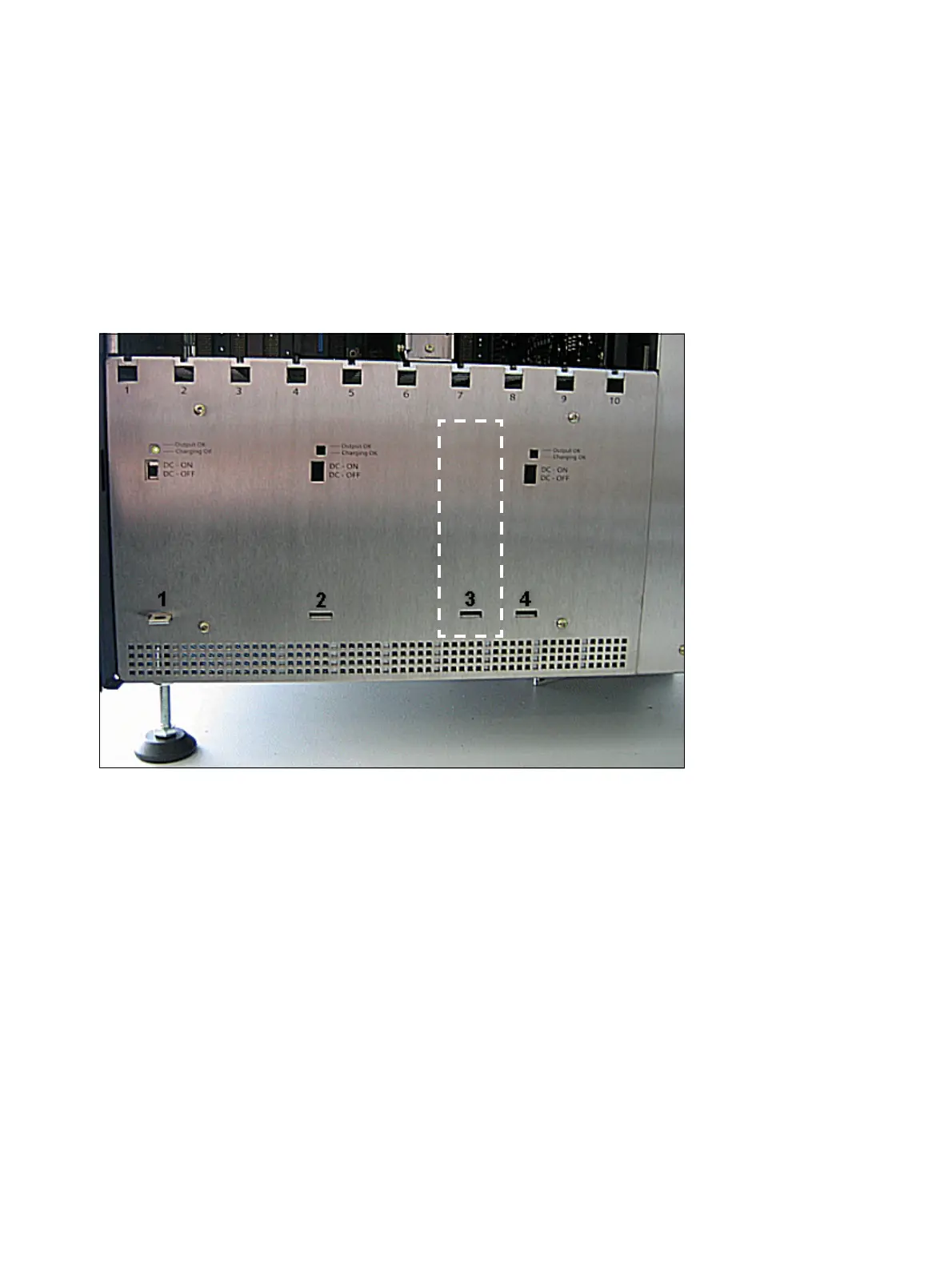

Figure 3-167 REALS Slots in the Basic Cabinet (With Outer Panel Mounted)
