Installing HiPath 3000
P31003-H3560-S403-54-7620, 09/05
4-150 HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
inst_h3.fm
Installing HiPath 3750, HiPath 3700
Stripping the open-end cable for the S
0
patch panel

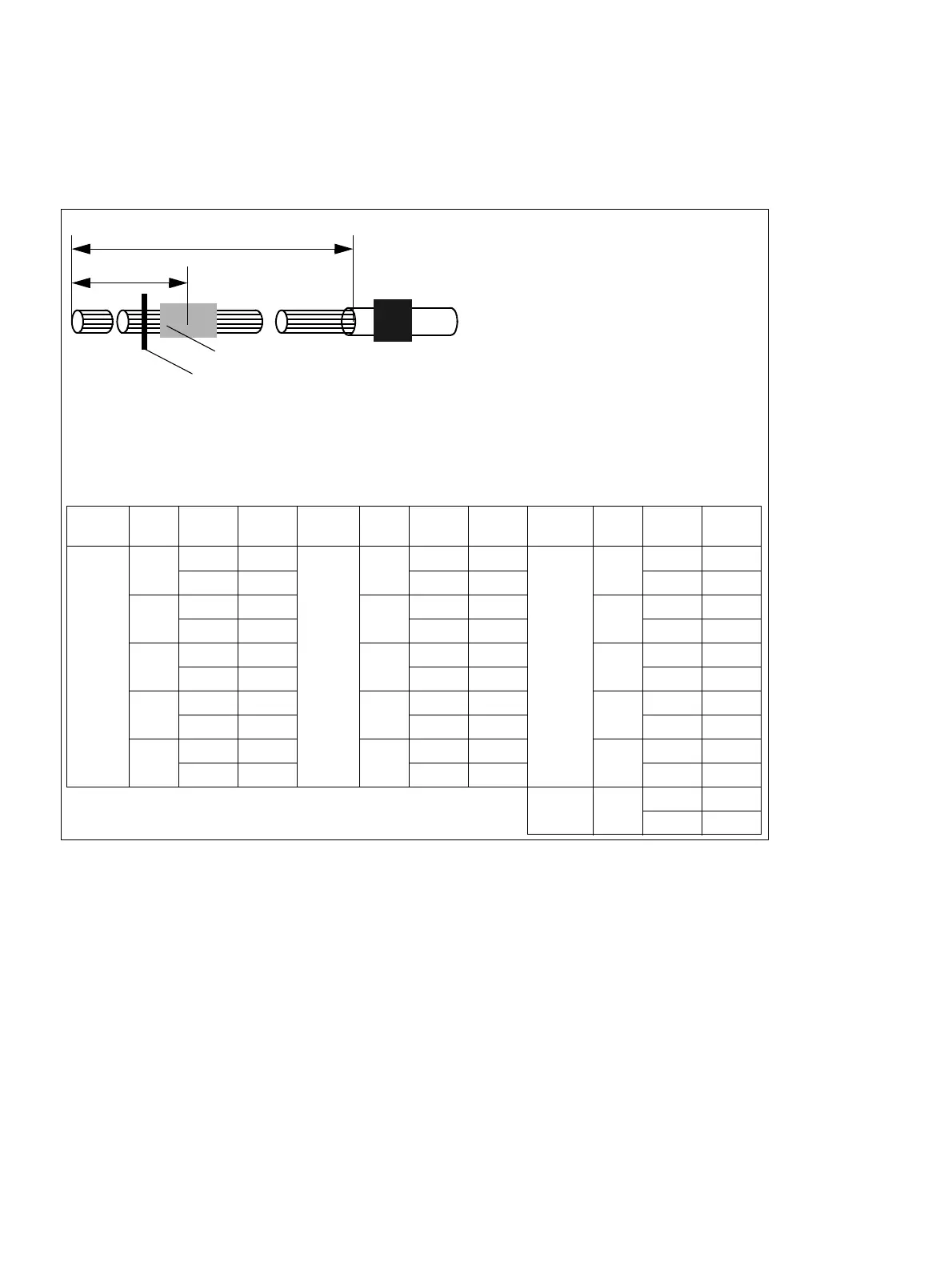

Figure 4-85 Stripping the Open-End Cable for the S
0
Patch Panel
250 ± 5
Stripped length
Velcro tape (19 mm wide)
Bundle fastener
(1)
Cable with film sheath: No. 6 (conductive copper tape) 1.5 windings. Ground wire
shortened to 25 mm and soldered onto conductive tape (1).
Stripped length = 600 mm ± 5 mm
Color
group
Pair a-Wire
(Tip)
b-Wire
(Ring)
Color
group
Pair a-Wire
(Tip)
b-Wire
(Ring)
Color
group
Pair a-Wire
(Tip)
b-Wire
(Ring)
1 1 wht/blu 2 6 red/blu 3 11 blk/blu
blu/wht blu/red blu/blk
2 wht/ora 7 red/ora 12 blk/ora
ora/wht ora/red ora/blk
3 wht/grn 8 red/grn 13 blk/grn
grn/wht grn/red grn/blk
4 wht/brn 9 red/brn 14 blk/brn
brn/wht brn/red brn/blk
5 wht/gry 10 red/gry 15 blk/gry
gry/wht gry/red gry/blk
416yel/blu
blu/yel
