Boards for HiPath 3000
P31003-H3560-S403-54-7620, 09/05
3-162 HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
boards.fm
Peripheral Boards
Base station power supply via two U
P0/E
interfaces
Connect the base station to two free interfaces on SLC16N as shown in Figure 3-73. Be careful
not to exceed the maximum connection cable lengths (1000 m for 2x0.6 mm).
Using two U
P0/E
interfaces increases the traffic capacity in BS2/2 and BS3/3 base stations.

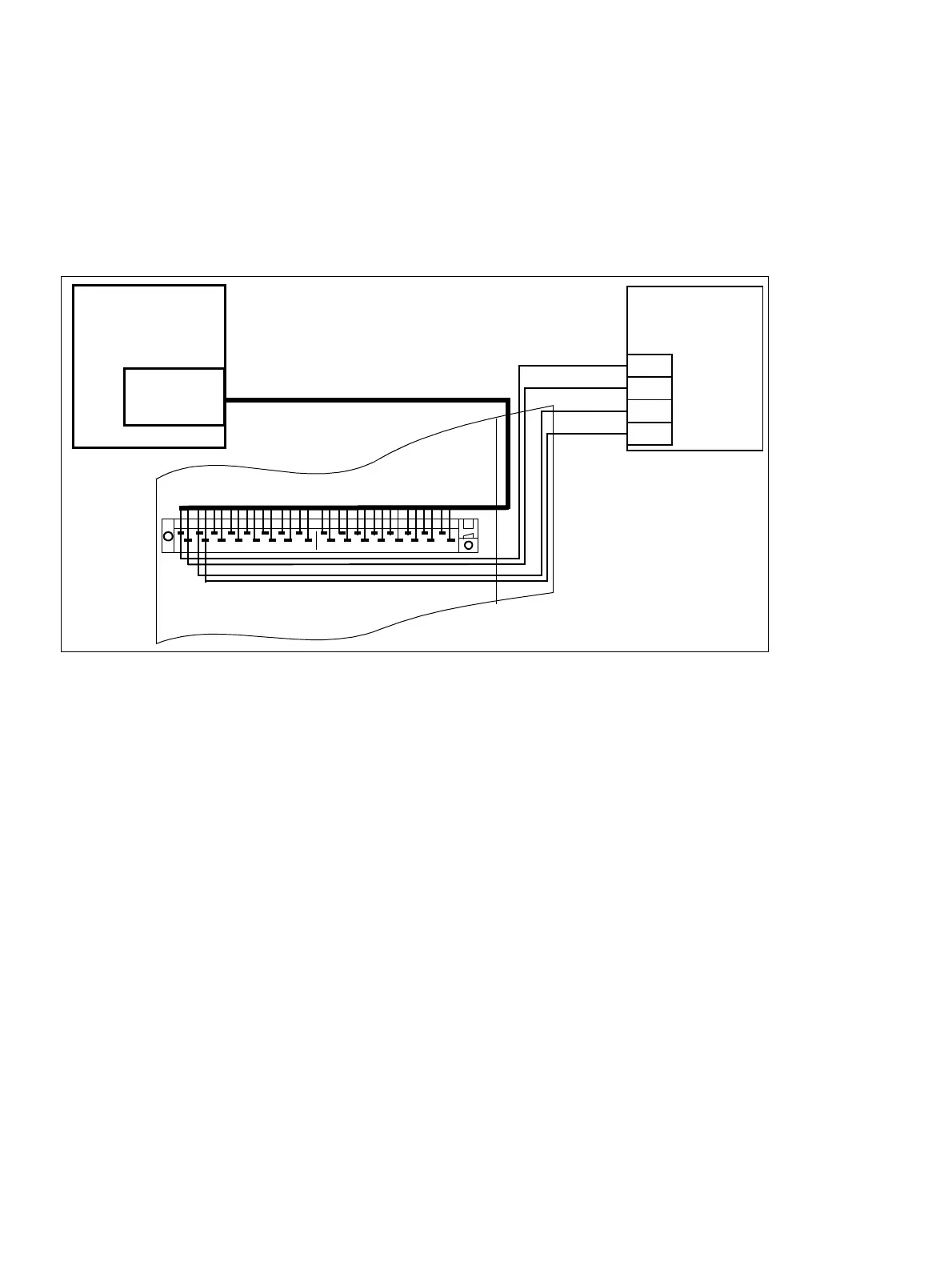

Figure 3-73 Base Station Power Supply via Two U
P0/E
Interfaces (Not for U.S.)
a
b
1
CABLU
MDFU, MDFU-E
2
3
4
5
U
P0/E
1
U
P0/E
2
BS2/2 or BS3/3
for indoors
Splitting
strip
HiPath 3750,
HiPath 3550,
HiPath 3700
SLC16N
