inst_h3.fm
P31003-H3560-S403-54-7620, 09/05
HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
4-151
Installing HiPath 3000
Installing HiPath 3750, HiPath 3700
S
2M
adapter (SIPAC 1 SU - MW8 (RJ48C)

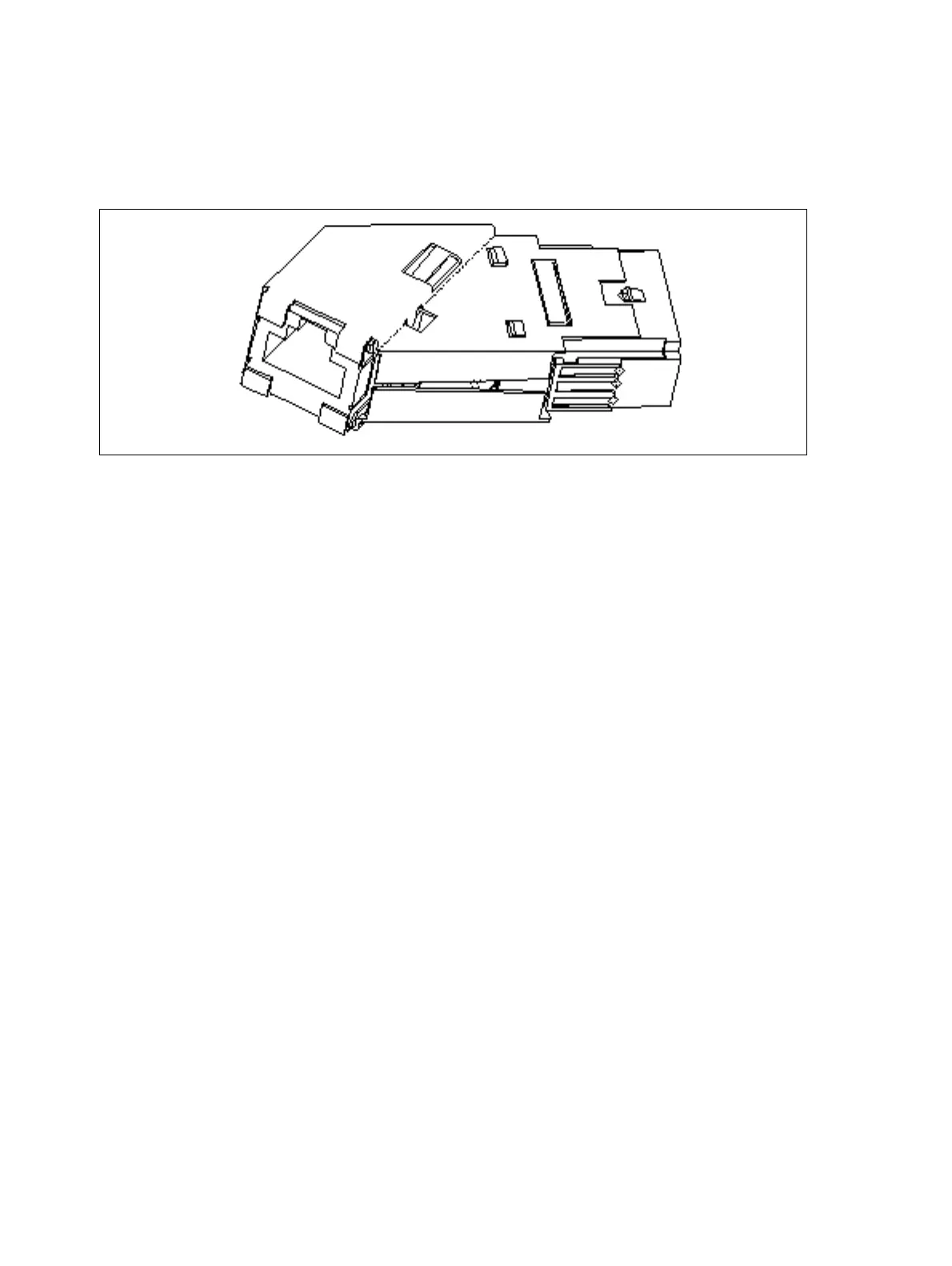

Figure 4-86 S
2M
Adapter (SIPAC 1 SU - MW8 (RJ48C)) C39228-A7195-A12
SIPAC 1 SU
jack (Xx9
backplane)
MW8 (RJ48C
jack
(to the NT, CSU
or networked
system)
