boards.fm
P31003-H3560-S403-54-7620, 09/05
HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
3-285
Boards for HiPath 3000
Peripheral Boards
3.3.32 TMCAS (for selected countries only)
Introduction
For V1.0 and later, TMCAS (Trunk Module Channel Associated Signaling) boards can be used
in HiPath 3750, HiPath 3700, and HiPath 3550 to support the country-specific CAS protocol.
The board converts the Euro-ISDN protocol on an S
2M
link into the Channel Associated Sig-
naling (CAS) protocol. The board functions only in connection with a TMS2 (HiPath 3750, Hi-
Path 3700) or TS2 (HiPath 3550). There is no direct connection between the TMCAS board and
the system’s central control unit. The TMS2/TS2 handles all signaling and data traffic.
Switches and display
Administration of the CAS protocol converter
Use the ECGM tool for administration. For information on installing the software on the service
PC and on the required settings, see Page 3-293.

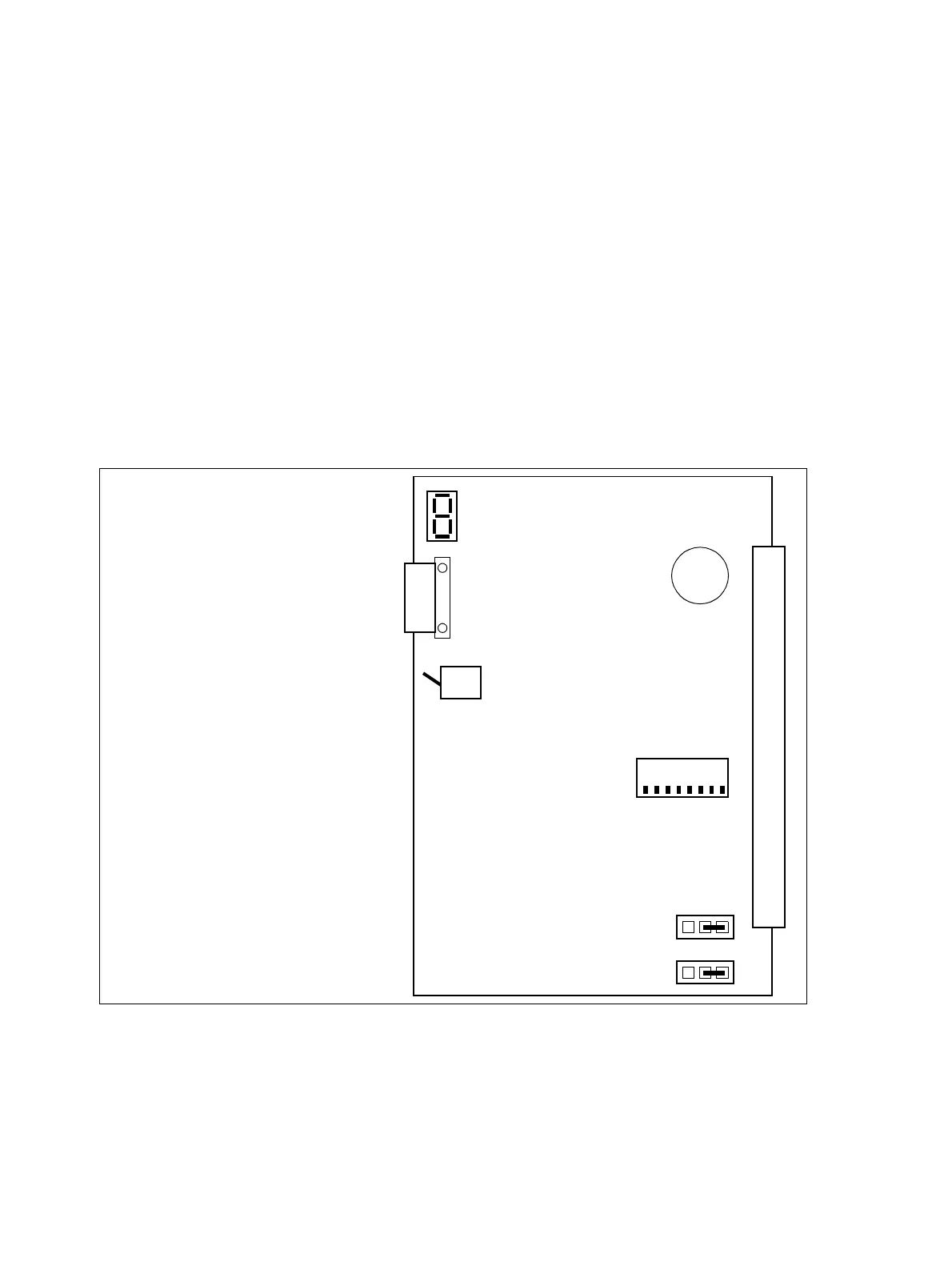

Figure 3-117 TMCAS (S30810-Q2938-X)
Off
= default
S1
S2
S3
Lockout switch
(position = free, factory default)
Display
25-pin SUB-D jack:
V24 interface for connecting the
service PC with the ECGM tool
321
Switch S4
1
Jumper
H1
X10
Battery
