inst_h3.fm
P31003-H3560-S403-54-7620, 09/05
HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
4-23
Installing HiPath 3000
Installing HiPath 3800
Examples for installation in a 19-inch cabinet
7
Caution
The height units represented in yellow in Figure 4-10 must be kept clear to ensure
adequate ventilation of the system cabinets.

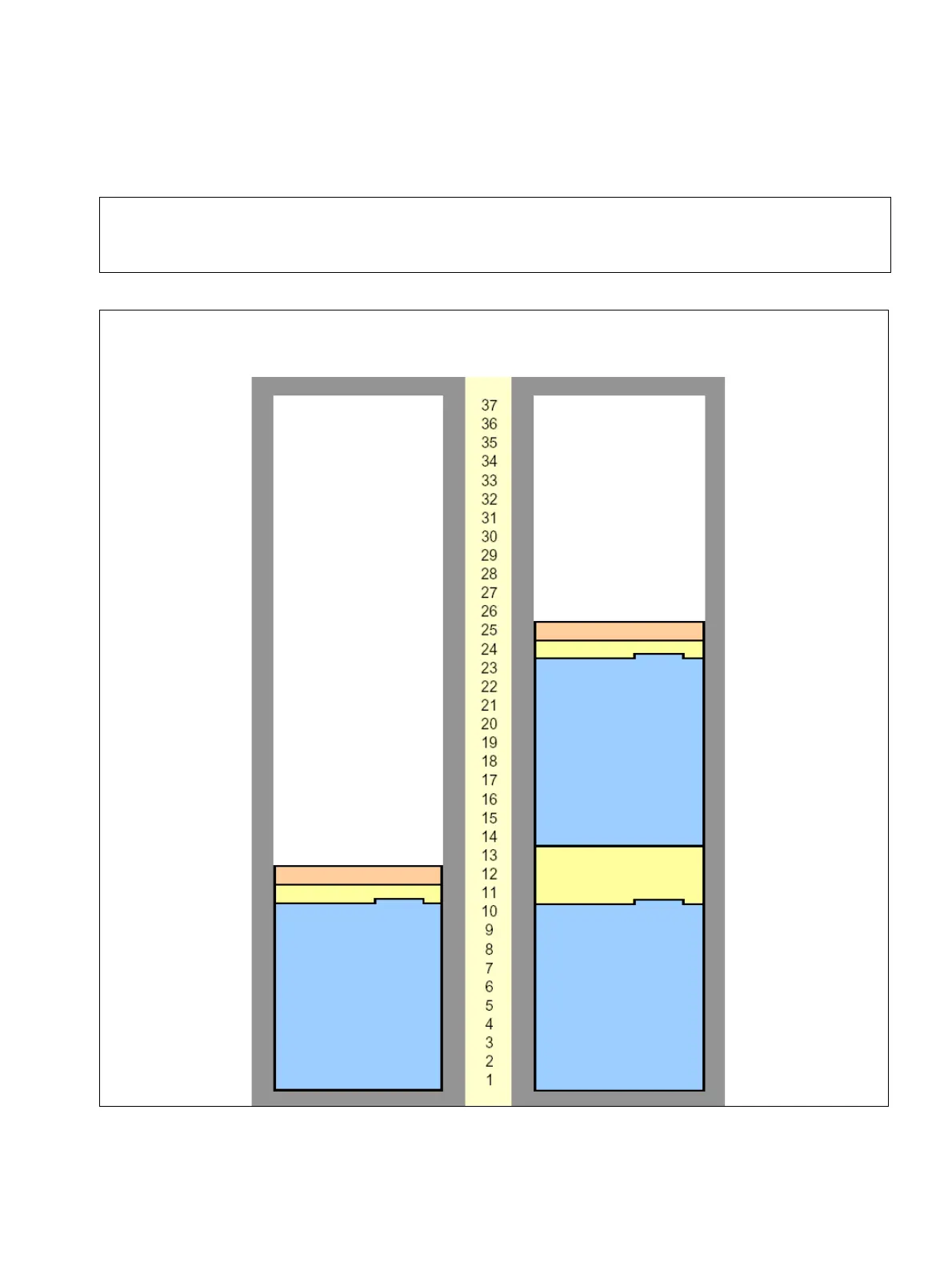

Figure 4-10 HiPath 3800 - Installation Examples in the 19-Inch Cabinet
Examples of a 19-inch cabinet height of 1.92 m with 37 height units
HiPath 3800
Basic cabinet
HiPath 3800
Basic cabinet
HiPath 3800
Expansion cabi-
net
Patch Panel
Patch Panel
