Installing HiPath 3000
Installing HiPath 3750, HiPath 3700
4.3.4.4 Mounting the Patch Panel in the 19-Inch Cabinet
The customer-specific communication network and HiPath 3700 are connected via patch pan-
els. Patch panels are installed beneath the system cabinets in the 19-inch cabinet (upward ther-
mal radiation).
Installation Procedure
Install the patch panel immediately under the system cabinet (A in Figure 4-75) and attach it to
the left and right of the 19-inch frame using two screws (B) on each side.
Mounting the patch panel

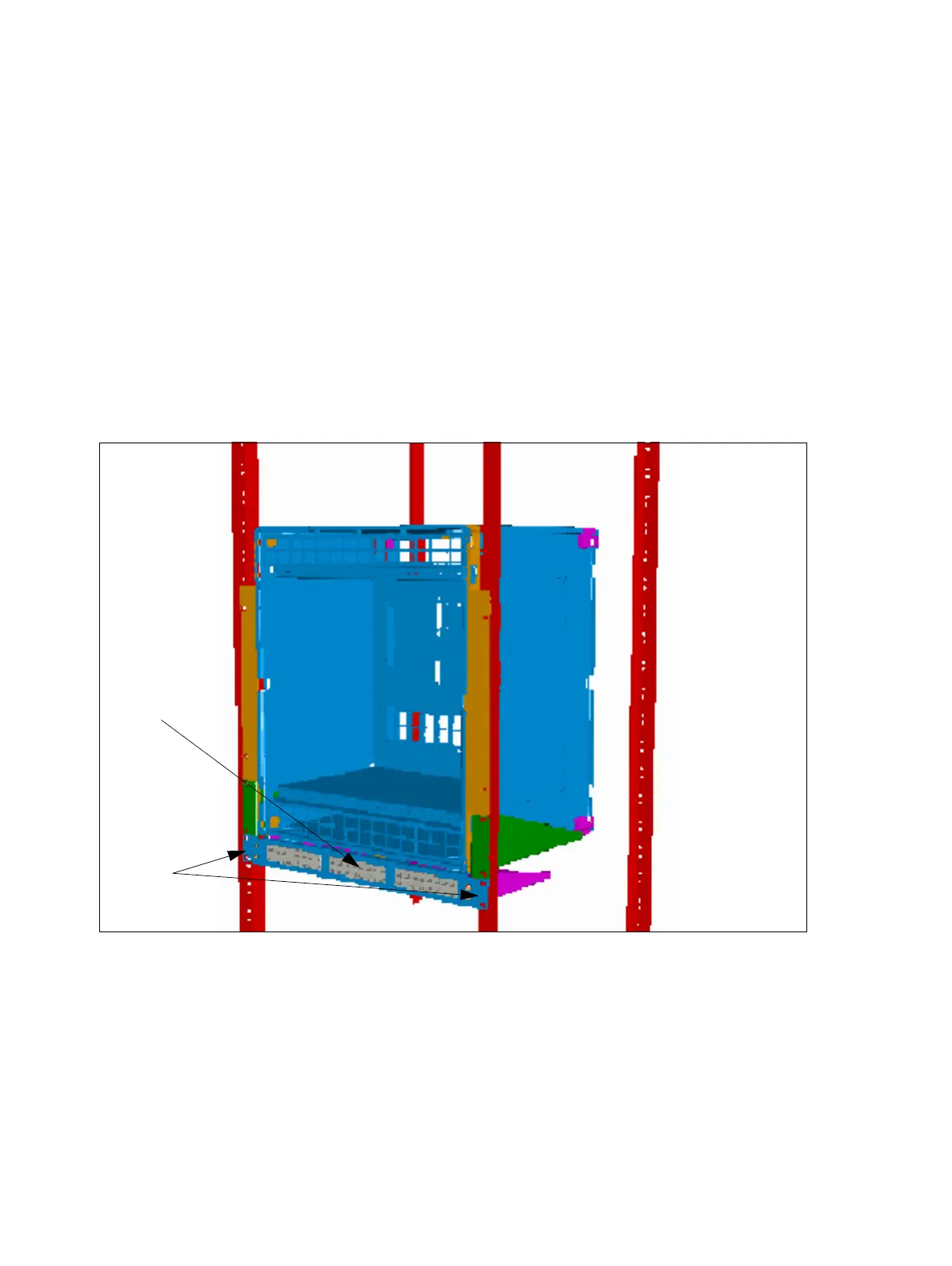

Figure 4-75 HiPath 3700 - Mounting the Patch Panel
A
B
