boards.fm
P31003-H3560-S403-54-7620, 09/05
HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
3-153
Boards for HiPath 3000
Peripheral Boards
Switches and LEDs
LED statuses and their meanings

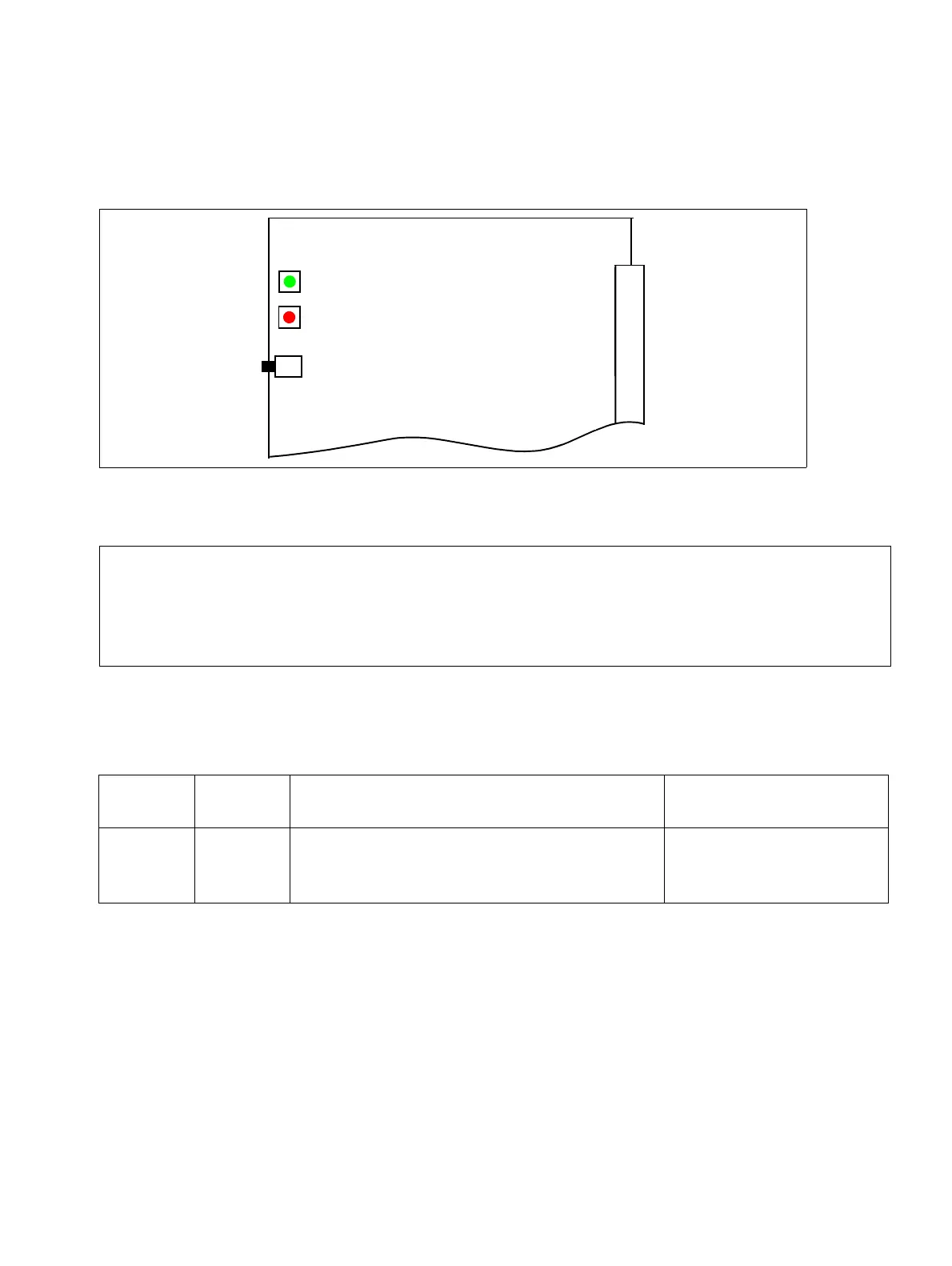

Figure 3-71 SLC16N (S30810-Q2193-X100) (Not for U.S.)
>
Activate the lockout switch (Press switch), all idle cordless phones are blocked. Ac-
tive mobile telephones are not locked until their release keys are pressed.
Before unplugging the SLC16N board, always activate the lockout switch and wait
until green LED stops flashing. This precaution ensures that none of the mobile tele-
phones are active.
Table 3-62 SLC16N (Not for U.S.) - LED Statuses
Red LED Green
LED
Status Action
Off Off Board not receiving power or not plugged in
correctly.
Board is out of order.
Check plug contact on
board.
Lockout switch
(Not pressed = free,
factory default)
LED (green)
LED (red)
