Siemens Hipath 5000 - Figure 9-9 Placement of the Fan in the ECR

exup.fm
P31003-H3560-S403-54-7620, 09/05
HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
9-23
Expanding and Upgrading HiPath 3000
Expanding HiPath 3000
If you install the fan at a later time, you must make sure that the identification ([B] in Figure 9-
9) is in the upper right corner when viewed from outside.

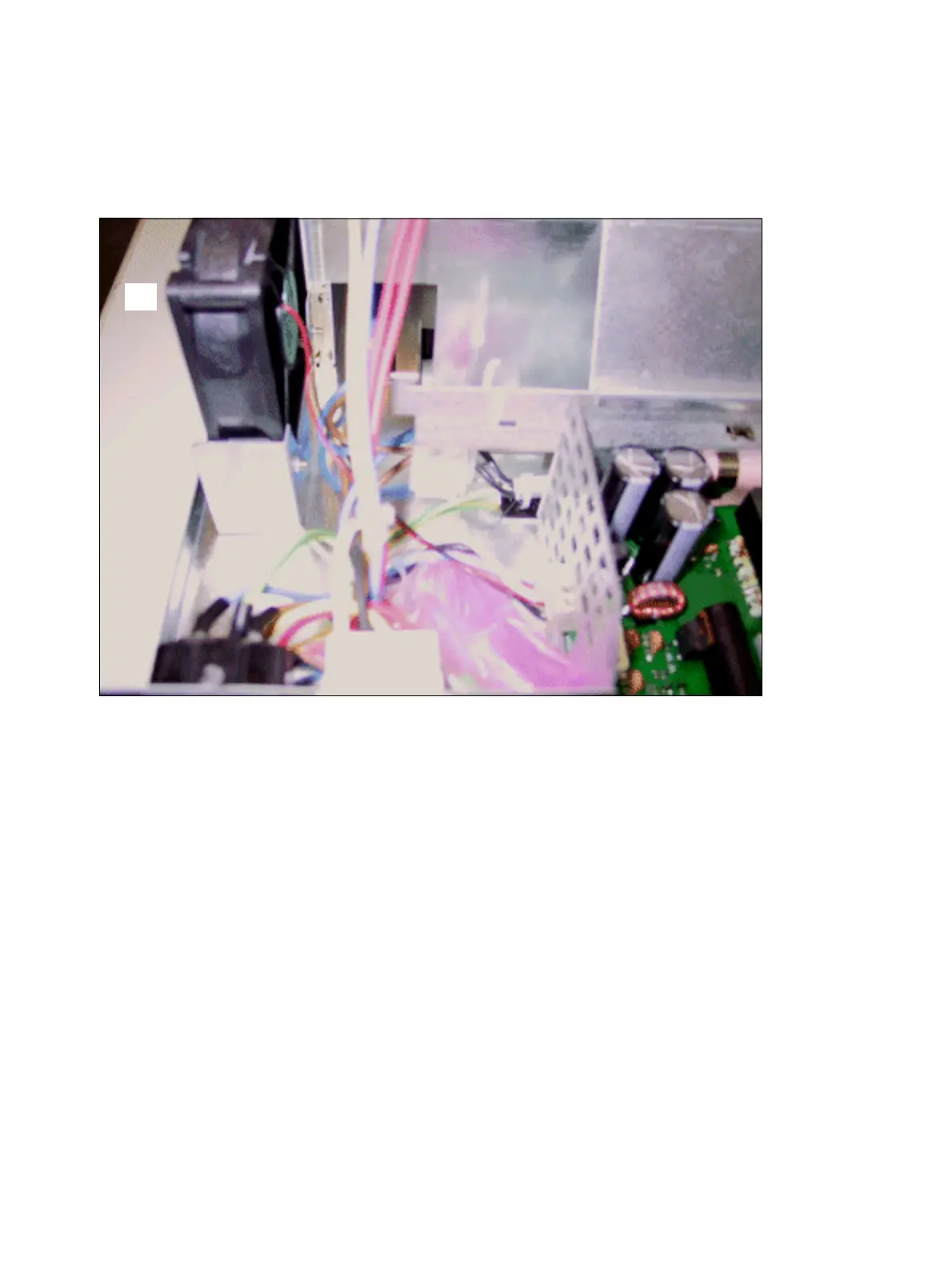

Figure 9-9 Placement of the Fan in the ECR
[B]
