Siemens Hipath 5000 - Figure 4-113 Hipath 3300 - Slot Levels in the 19-Inch Housing

Installing HiPath 3000
P31003-H3560-S403-54-7620, 09/05
4-198 HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
inst_h3.fm
Installing HiPath 3550, HiPath 3350, HiPath 3500, and HiPath 3300
HiPath 3300: system overview and slots
7
Caution
For safety, operate HiPath 3300 only with the housing front closed. Always use dum-
my panels (C39165-A7027-B115) to close slots that are not equipped with boards.

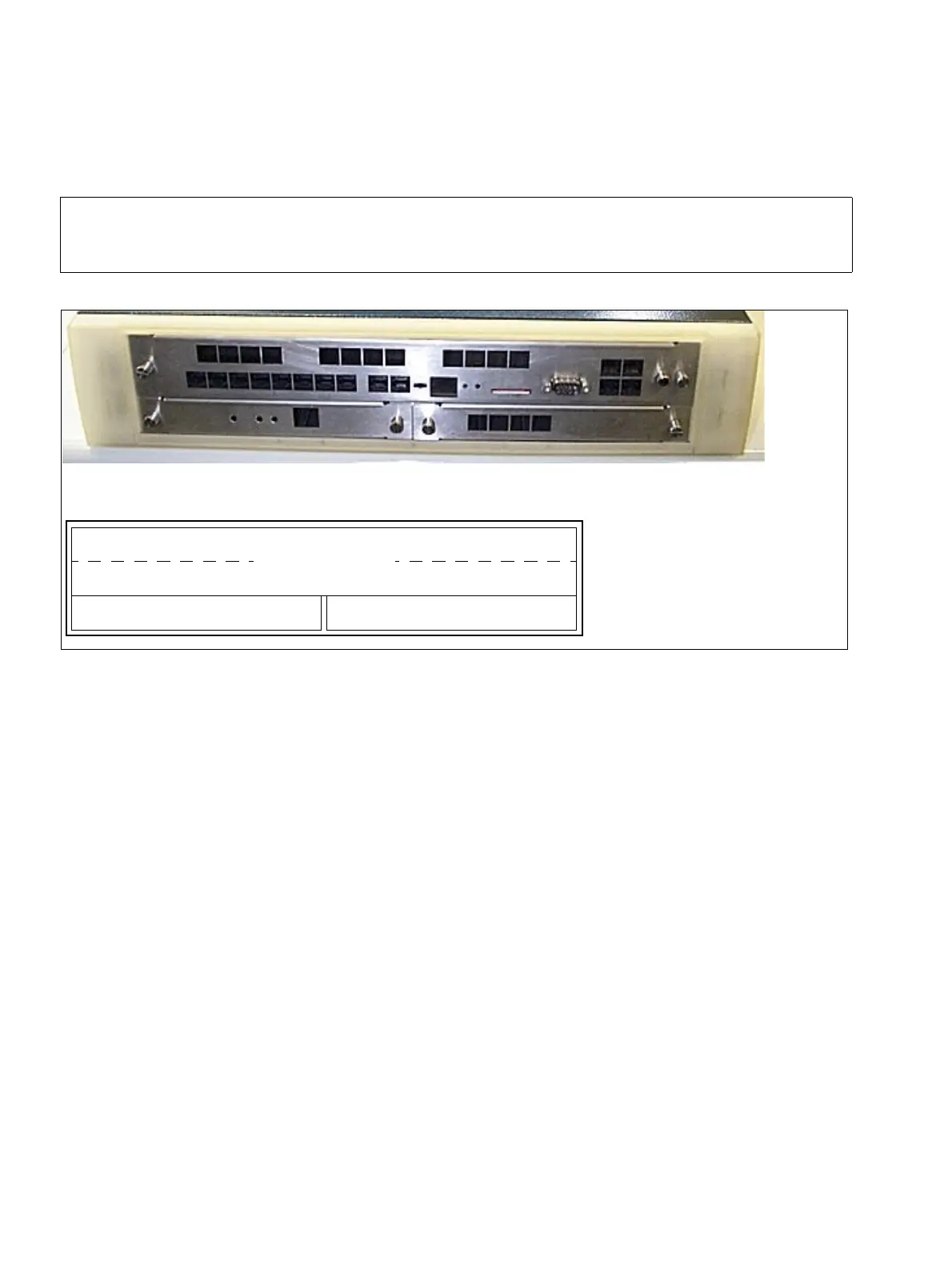

Figure 4-113 HiPath 3300 - Slot Levels in the 19-Inch Housing
Slot 4 Slot 5
Slots 1-3
Slot
levels:
3 (options)
2 (CBRC)
1 (Peripheralboards)
