exup.fm
P31003-H3560-S403-54-7620, 09/05
HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
9-27
Expanding and Upgrading HiPath 3000
Expanding HiPath 3000
9.2.5.2 Connecting Speakers
You have the following options:
Connection to an analog station port (the amplifier may require level adaptation)
Connection to an analog station port over an ET adapter
Connection to an analog trunk circuit
Connecting speakers to an analog station port

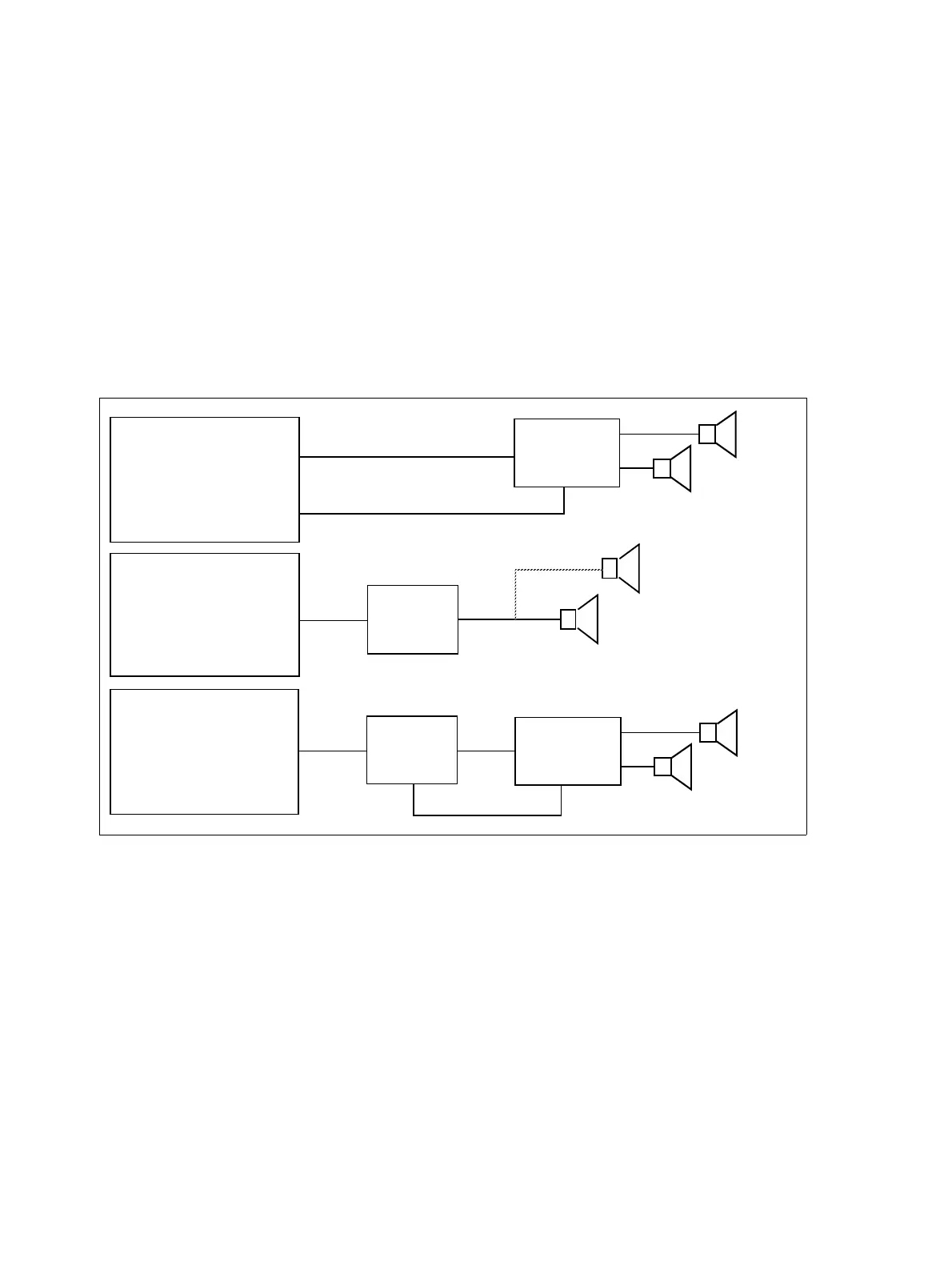

Figure 9-13 Connecting Speakers to an Analog Station Port
HiPath 3000
SLA/SLAS
ET
HiPath 3000
SLA/SLAS
Amplifier
T/R
Active speak-
ers only
ET
T/R
T/R
Starting contact
HiPath 3000
SLA/SLAS
REAL/STRBR/
STRBR
Amplifier
T/R
Starting contact
