Boards for HiPath 3000
P31003-H3560-S403-54-7620, 09/05
3-138 HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
boards.fm
Peripheral Boards
Seven-segment display
The board statuses listed in the following table are displayed.

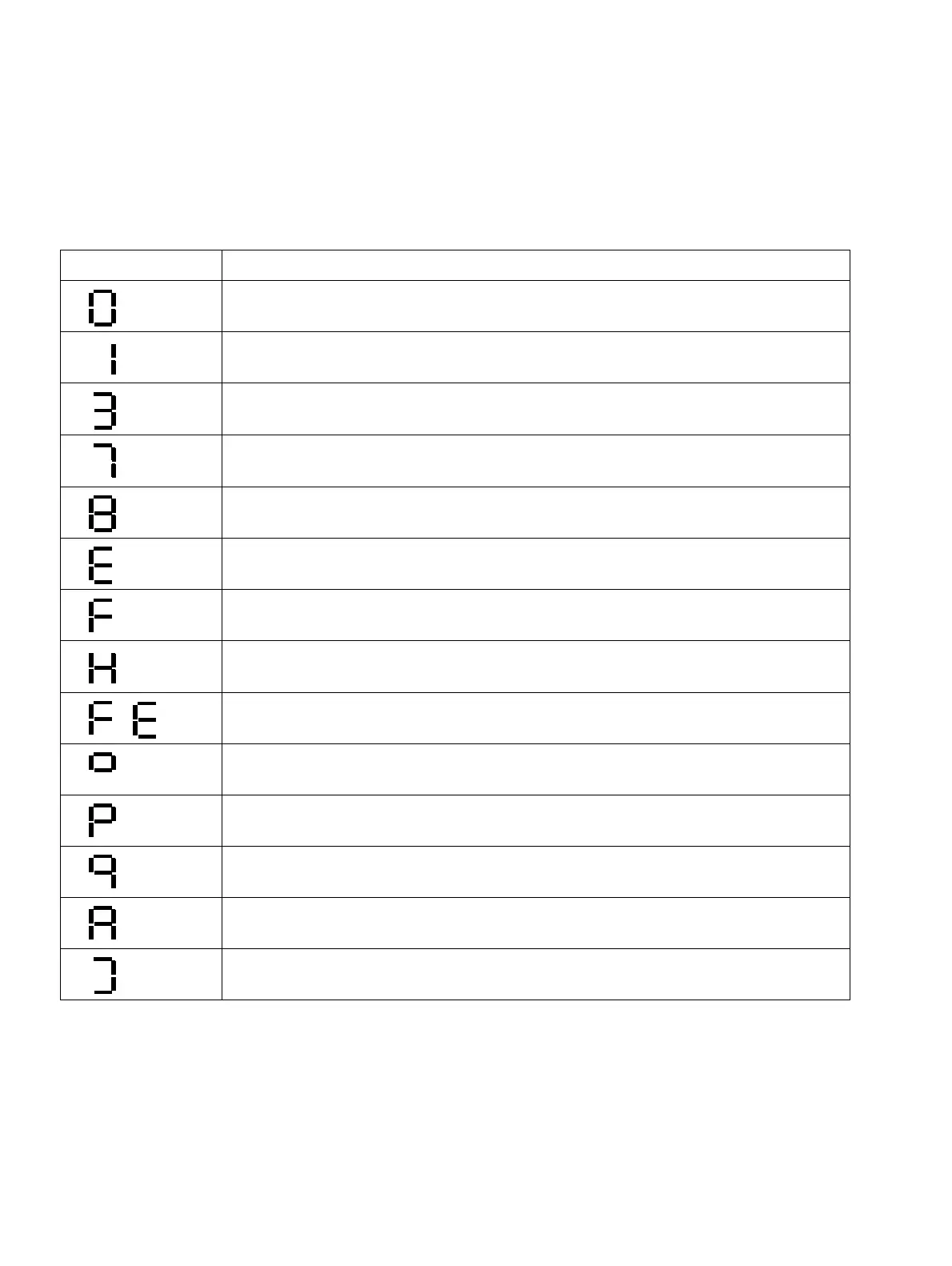

Table 3-55 PBXXX (for selected countries only) - Seven-segment display
Display Meaning
Waiting for the PBXXX software download
Starting the PBXXX software download
PBXXX software download
Writing the PBXXX software/extender software to the flash memory
Loading the PBXXX software/extender software from the flash memory
Waiting for ECGM command (10 s)
Error while writing the software to flash memory
No software in the flash memory, waiting for reload
Flash memory erased (changing display)
PBXXX card active, Link 1 and Link 2 not active
Link 1 active, Link 2 not active
Link 1 not active, Link 2 active
Link 1 active, Link 2 active
Boot procedure
