Siemens Hipath 5000 - Figure 3-129 TMST1 Adapter (SIPAC 1 SU - MW8 (RJ48 C)) C39228-A7195; Table 3-154 TMST1 Adapter (for U.S. Only) - Cable Assignment

Boards for HiPath 3000
P31003-H3560-S403-54-7620, 09/05
3-320 HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
boards.fm
Peripheral Boards
TMST1 adapter (SIPAC 1 SU - MW8 (RJ48C)), contact assignment

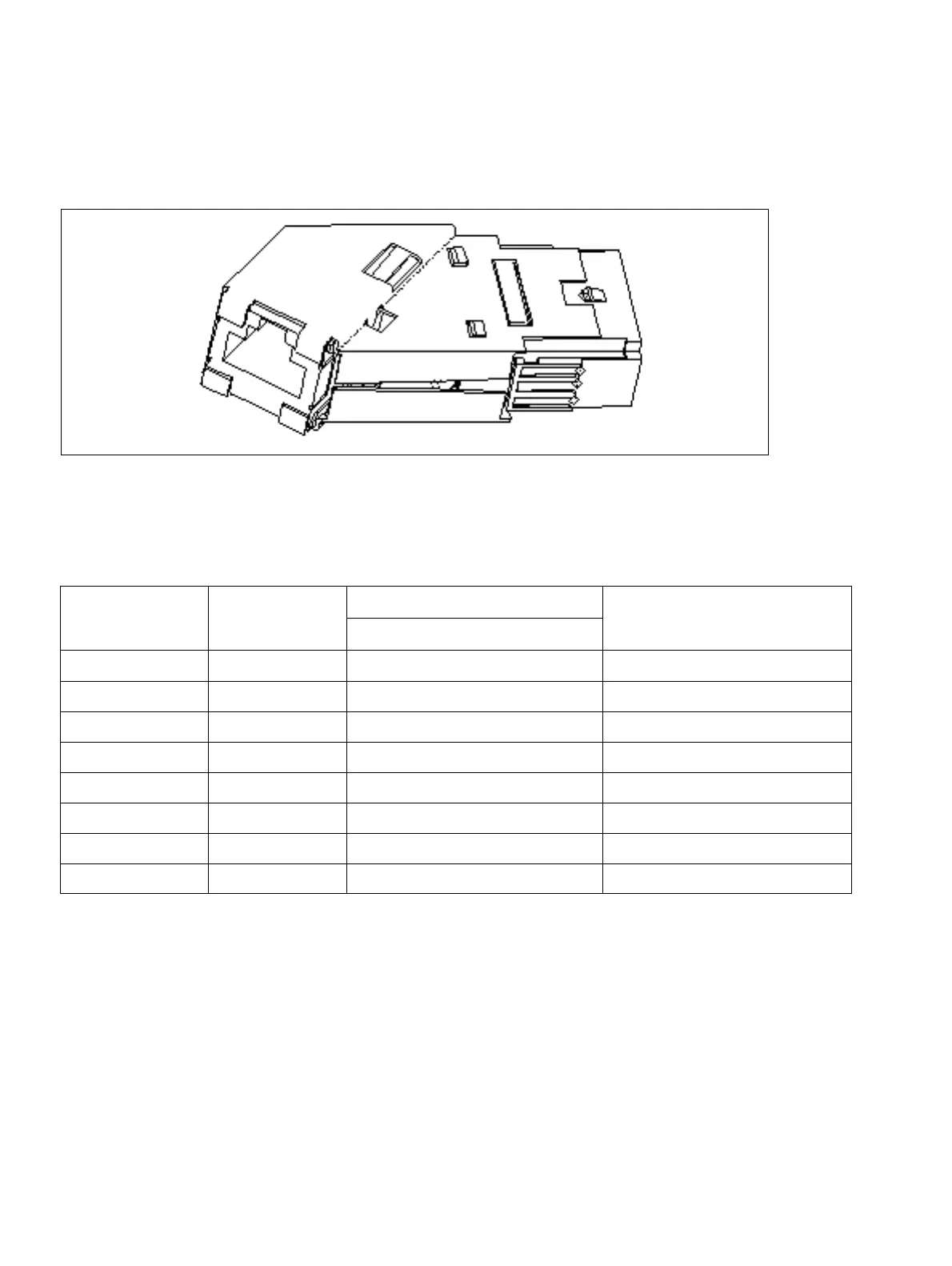

Figure 3-129 TMST1 Adapter (SIPAC 1 SU - MW8 (RJ48C)) C39228-A7195-A12 (for U.S.
only)
Table 3-154 TMST1 Adapter (For U.S. Only) - Cable Assignment
MW8 (RJ48C) SIPAC 1 SU
jack
SU connector backplane TMST1
Xx9
1 C2 22 b-wire (ring), receive
2 E2 2 a-wire (tip), receive
3– – –
4 C6 26 b-wire (ring), transmit
5 E6 6 a-wire (tip), transmit
6– – –
7– – –
8– – –
SIPAC 1
SU jack
(Xx9 back-
plane)
MW8 (RJ48C)
jack
(to the CSU or
networked
system)
