Siemens Hipath 5000 - Figure 3-95 S Trunk Connection (Example for Hipath 3750); Figure 3-96 SNT Connection(Not for U.S.)

Boards for HiPath 3000
P31003-H3560-S403-54-7620, 09/05
3-236 HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
boards.fm
Peripheral Boards
S
0
trunk connection (via NT) (not for U.S.)
>
Table 2-16 lists examples of the maximum cable lengths for connecting trunks.

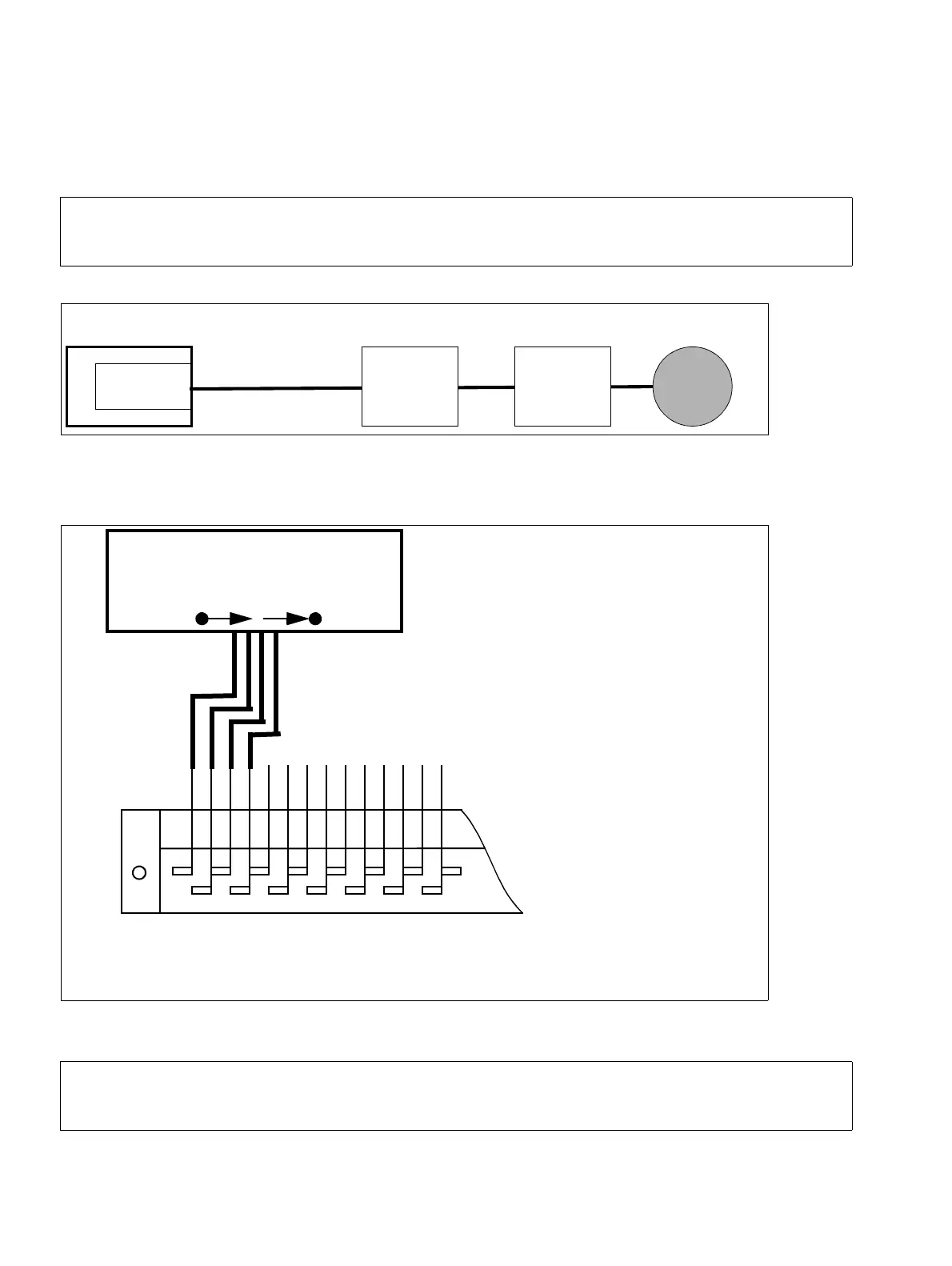

Figure 3-95 S
0
Trunk Connection (Example for HiPath 3750)
Figure 3-96 S
0
NT Connection(Not for U.S.)
>
When starting up S
0
ports during operation with PABXs, it is important to ensure that
the NT switch is in the POINT-TO-POINT position.
MDFU cable
(CABLU)
HiPath 3750
STMD8
MDFU or
MDFU-E
NT
Public network
NT (network termination):
The connection depends on the
country-specific NT.
S0 basic
rate access
1
S0 basic
rate ac-
cess
2
1Sb
1Sa
1Eb
1Ea
......
MDFU, MDFU-E
STMD8
